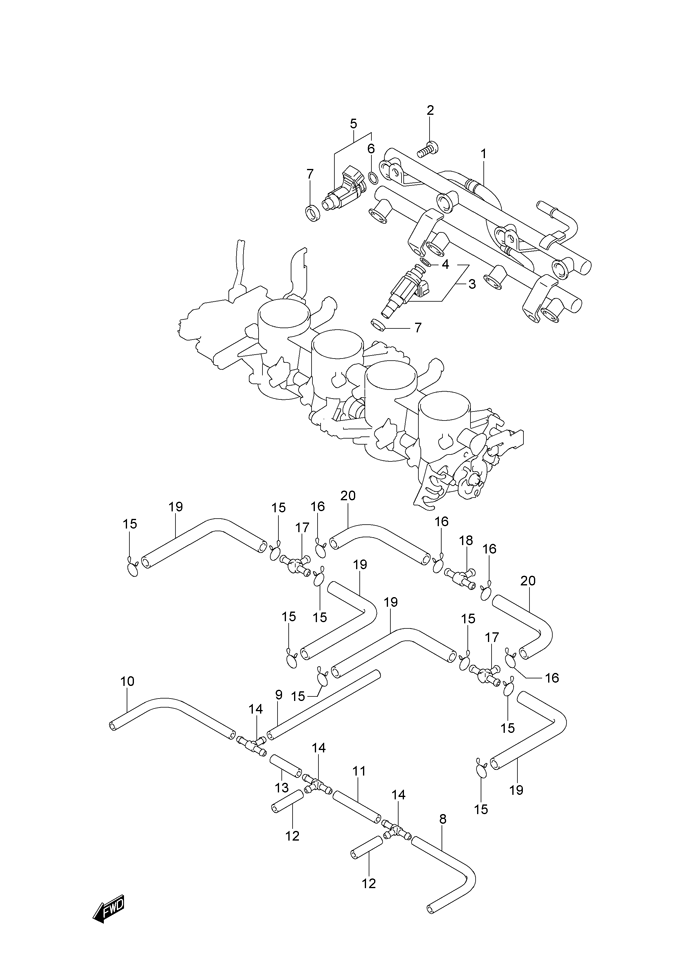

CARBURETOR - THROTTLE BODY FITTINGS для Suzuki GSX-R600 K7 - 2007 года выпуска
-
№АртикулНазвание
-
115730-01H00 DELIVERY PIPE ASSYDELIVERY PIPE ASSY
-
213602-06128 SCREWSCREW
-
315710-01H00 INJECTOR ASSYINJECTOR ASSY
-
415717-16G00 O RINGO RING
-
515710-48G00 INJECTOR ASSYINJECTOR ASSY
-
615717-16G00 O RINGO RING
-
715722-29G00 SEALSEAL
-
813683-29G00 HOSEHOSE
-
913683-01H00 HOSEHOSE
-
1013683-10F60 HOSEHOSE
-
1113681-39F00-225 HOSEHOSE
-
1213683-10F60 HOSEHOSE
-
1313683-10F60 HOSEHOSE
-
1413685-02FA0 3WAY, VACUUM HOSE3WAY, VACUUM HOSE
-
1513671-29G00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
1613671-06A10 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
1713685-29G00 NIPPLE (CALIF ONLY)NIPPLE (CALIF ONLY)
-
1813685-48B00 NIPPLE (CALIF ONLY)NIPPLE (CALIF ONLY)
-
1913683-01H10 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
2013683-29G30 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
