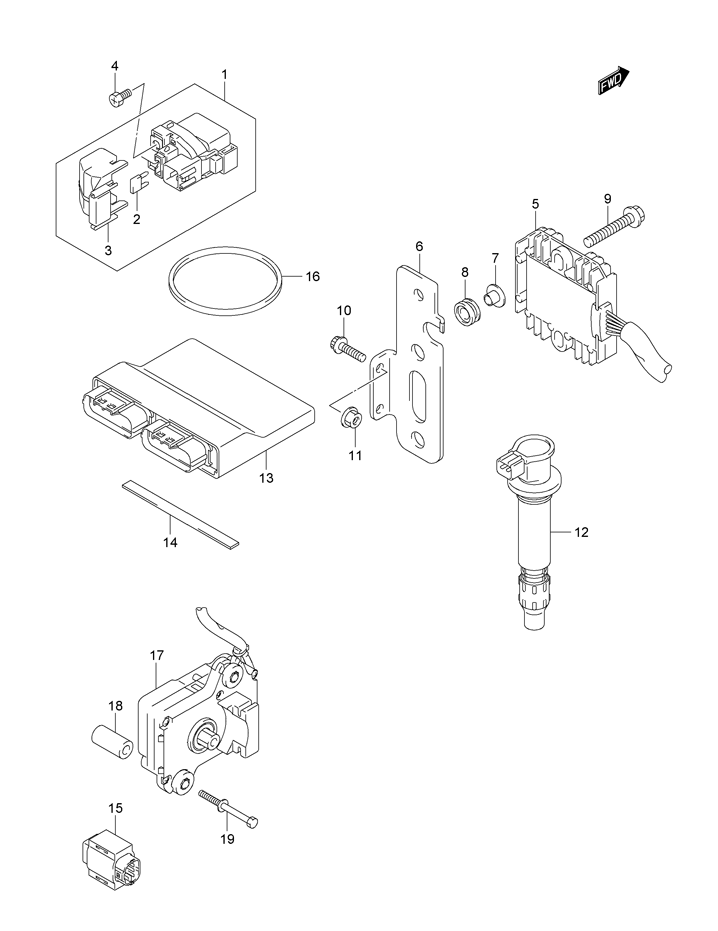

ELECTRICAL для Suzuki GSX-R600 K7 - 2007 года выпуска
-
№АртикулНазвание
-
131800-41G00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
209481-30501 FUSE (30A)FUSE (30A)
-
331861-38G00 COVER, STARTERCOVER, STARTER
-
409128-06013 BOLT (6X8)BOLT (6X8)
-
532800-02H00 RECTIFIER ASSYRECTIFIER ASSY
-
632830-01H00 BRACKET, RECT FTGBRACKET, RECT FTG
-
709180-06325 SPACERSPACER
-
809320-08072 CUSHION, RECT FTG BRKTCUSHION, RECT FTG BRKT
-
902162-0630A BOLT, RECTIFIERBOLT, RECTIFIER
-
1007120-0616A BOLT, BRKTBOLT, BRKT
-
1108316-1006A NUT, RECTIFIERNUT, RECTIFIER
-
1233410-29G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1332920-01H10 CONTROL UNIT, FICONTROL UNIT, FI
-
1433652-42F00 CUSHION (10X130X2)CUSHION (10X130X2)
-
1533960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
1609280-76005 BAND, FI UNITBAND, FI UNIT
-
1733970-41G00 ACTUATOR ASSY, EXHAUST CONTROLACTUATOR ASSY, EXHAUST CONTROL
-
1809180-06345 SPACER, ACTUATOR (6.2X14.5X26)SPACER, ACTUATOR (6.2X14.5X26)
-
1901560-0650A BOLTBOLT
