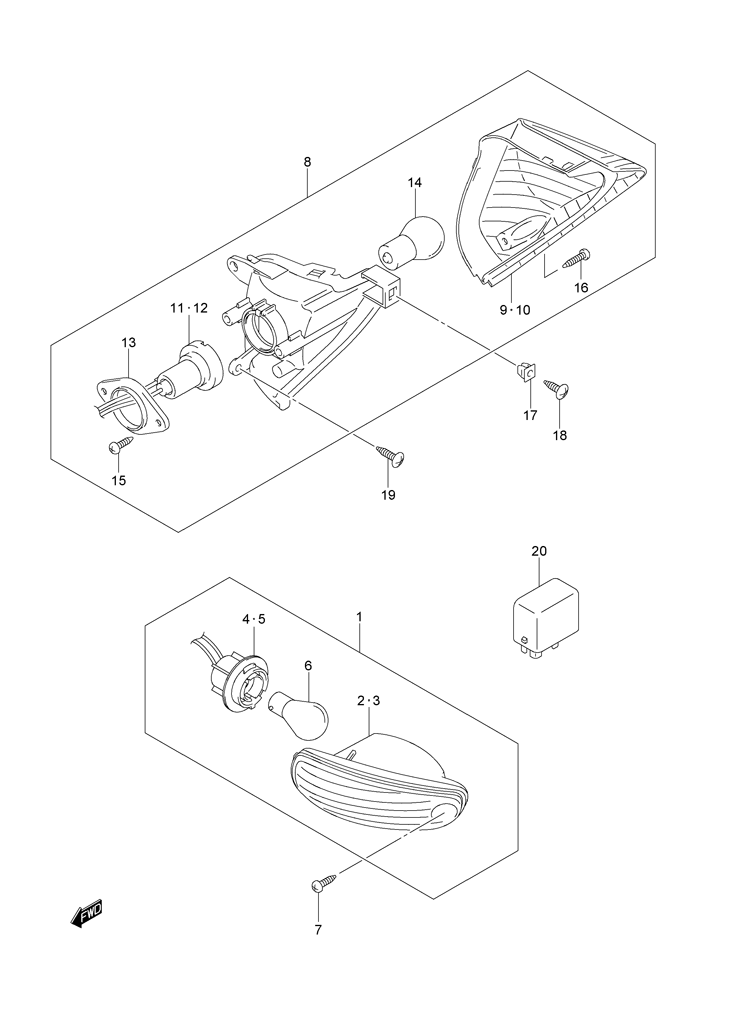

TURN SIGNAL ASSY. для Suzuki GSX-R600 K7 - 2007 года выпуска
-
№АртикулНазвание
-
135601-41G00 LAMP ASSY, FRONT, RIGHTLAMP ASSY, FRONT, RIGHT
-
135602-41G00 LAMP ASSY, FRONT, LEFTLAMP ASSY, FRONT, LEFT
-
235610-41G00 LAMP UNIT, RIGHTLAMP UNIT, RIGHT
-
335630-41G00 LAMP UNIT, LEFTLAMP UNIT, LEFT
-
435618-10G50 SOCKET AND CORD, RIGHTSOCKET AND CORD, RIGHT
-
535638-10G50 SOCKET AND CORD, LEFTSOCKET AND CORD, LEFT
-
609471-12186 BULB (12V21W) AMBERBULB (12V21W) AMBER
-
709132-04032 SCREW (4X20)SCREW (4X20)
-
835603-41G01 LAMP ASSY, REAR, RIGHTLAMP ASSY, REAR, RIGHT
-
835604-41G01 LAMP ASSY, REAR, LEFTLAMP ASSY, REAR, LEFT
-
935652-41G00 LENS, RIGHTLENS, RIGHT
-
1035672-41G00 LENS, LEFTLENS, LEFT
-
1135658-41G00 SOCKET AND CORD, RIGHTSOCKET AND CORD, RIGHT
-
1235678-41G00 SOCKET AND CORD, LEFTSOCKET AND CORD, LEFT
-
1335716-07A30 PLATE, REARPLATE, REAR
-
1409471-12186 BULB (12V21W) AMBERBULB (12V21W) AMBER
-
1503211-04123 SCREWSCREW
-
1603211-0416A SCREWSCREW
-
1709148-04021 NUT, REAR TURNSIGNALNUT, REAR TURNSIGNAL
-
1803541-0412A SCREW, REARSCREW, REAR
-
1903541-0512A SCREW, REARSCREW, REAR
-
2038610-03F00 RELAY ASSY, TURNSIGNALRELAY ASSY, TURNSIGNAL
