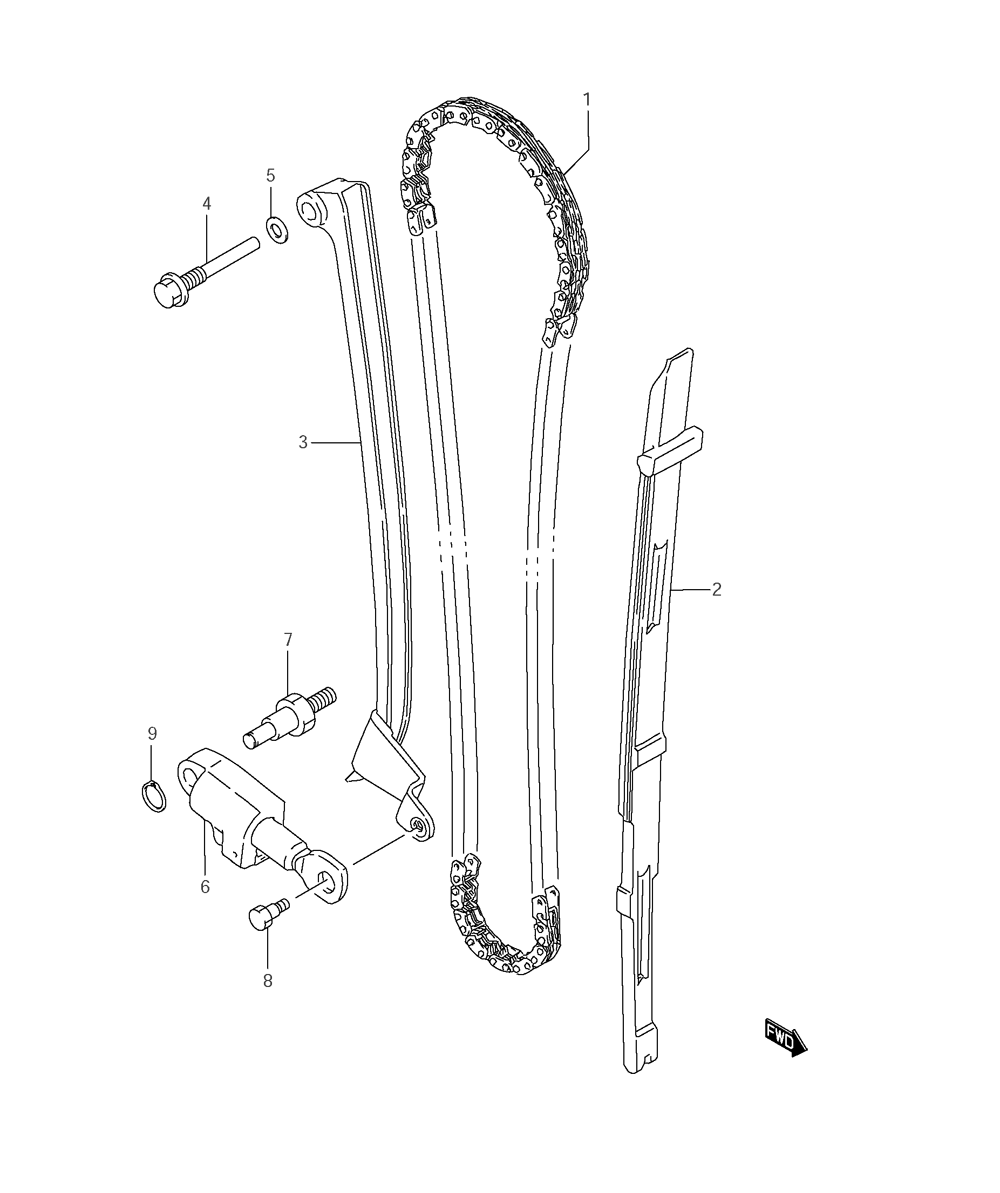

CAM CHAIN ASSY. W/ TENSIONER для Suzuki LS650 K7 - 2007 года выпуска
-
№АртикулНазвание
-
112760-24B00 CHAIN, CAM SHAFT DRIVE 132LECHAIN, CAM SHAFT DRIVE 132LE
-
212771-24B01 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-24B00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-24B00 BOLTBOLT
-
509168-08016 WASHERWASHER
-
612830-24B01 ADJUSTER ASSEMBLY, TENSIONERADJUSTER ASSEMBLY, TENSIONER
-
709108-08194 BOLT (8X18)BOLT (8X18)
-
809119-06069 BOLT (6X12)BOLT (6X12)
-
908331-31086 CIRCLIPCIRCLIP
