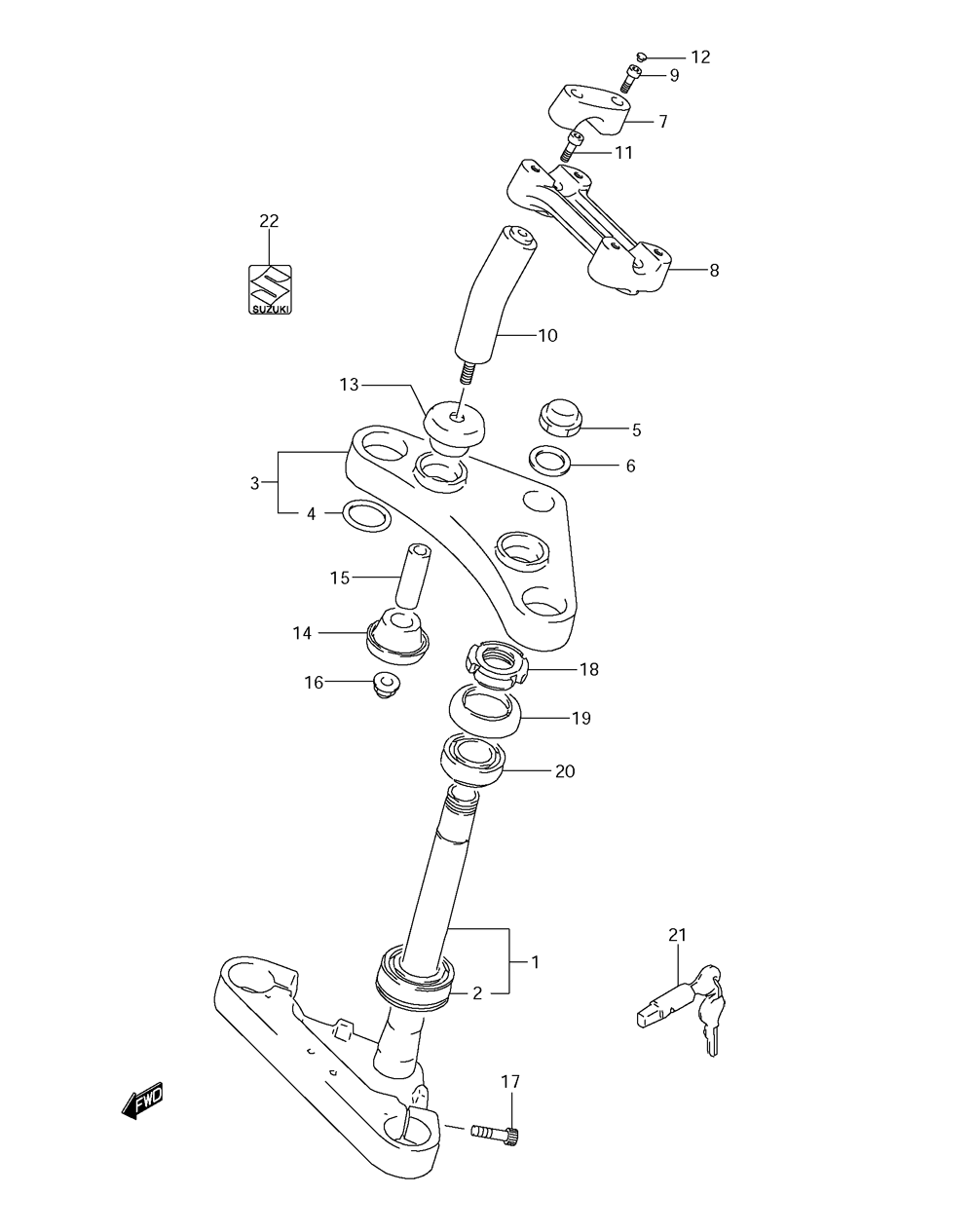

STEERING STEM для Suzuki LS650 K7 - 2007 года выпуска
-
№АртикулНазвание
-
151410-24B20 STEM, STEERINGSTEM, STEERING
-
209265-30009 ...BEARING (30X55X17)...BEARING (30X55X17)
-
351310-24B50 STEM HEAD, STEERINGSTEM HEAD, STEERING
-
451357-24B00 ...WASHER...WASHER
-
551353-24B10 NUT, CAPNUT, CAP
-
651356-24B01 WASHERWASHER
-
756211-24B50 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
856221-24B50 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
907130-08307 BOLTBOLT
-
1056231-24B50 ARMARM
-
1107130-10257 BOLTBOLT
-
1209250-06009 CAP, HANDLE CLAMPCAP, HANDLE CLAMP
-
1356240-24B00 CUSHION, UPPERCUSHION, UPPER
-
1456240-24B10 CUSHION, LOWERCUSHION, LOWER
-
1509180-10065 SPACERSPACER
-
1608319-31107 NUTNUT
-
1707130-10307 BOLTBOLT
-
1851631-28000 NUT, STEERING STEMNUT, STEERING STEM
-
1951643-49002 DUST SEAL, STEERING UPPERDUST SEAL, STEERING UPPER
-
2009265-25019 BEARING, STEERING UPPER (25X47X15)BEARING, STEERING UPPER (25X47X15)
-
2151900-22662 LOCK ASSEMBLY, STEERING (NEIMAN)LOCK ASSEMBLY, STEERING (NEIMAN)
-
2268281-35F00 EMBLEM, "S"EMBLEM, "S"
