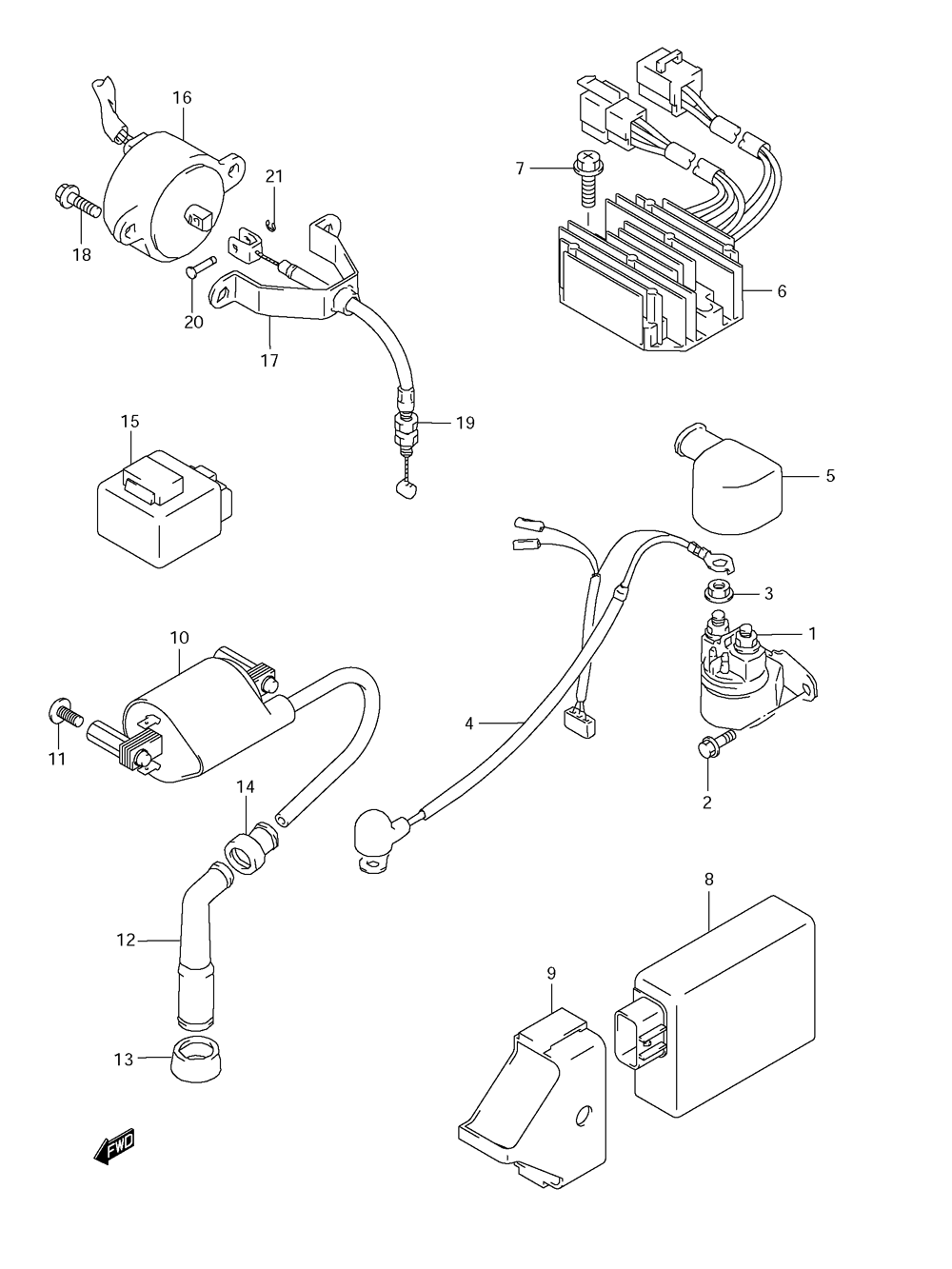

ELECTRICAL для Suzuki LS650 K7 - 2007 года выпуска
-
№АртикулНазвание
-
131800-49100 RELAY ASSEMBLY, STARTING MOTORRELAY ASSEMBLY, STARTING MOTOR
-
201550-0610B BOLTBOLT
-
308361-3506A NUTNUT
-
433850-24B10 WIRE, STARTING MOTORWIRE, STARTING MOTOR
-
533624-49401 CAP, STARTER RELAYCAP, STARTER RELAY
-
632800-24B11 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
702162-0620B SCREWSCREW
-
832900-24B30 IGNITER ASSEMBLYIGNITER ASSEMBLY
-
932980-24B00 CUSHION, IGNITERCUSHION, IGNITER
-
1033410-24B00 COIL ASSEMBLY, IGNITIONCOIL ASSEMBLY, IGNITION
-
1102142-0512B SCREWSCREW
-
1233510-45010 CAP, SPARK PLUGCAP, SPARK PLUG
-
1333541-38210 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1433542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1532910-24B10 CONTROL UNIT, DECOMPCONTROL UNIT, DECOMP
-
1633970-24B00 SOLENOID ASSEMBLY, DECOMPSOLENOID ASSEMBLY, DECOMP
-
1733971-24B00 BRACKET, DECOMP SOLENOIDBRACKET, DECOMP SOLENOID
-
1801550-0616B BOLTBOLT
-
1958900-24B01 CABLE ASSEMBLY, DECOMPCABLE ASSEMBLY, DECOMP
-
2009209-04020 PINPIN
-
2108332-1103A E RINGE RING
