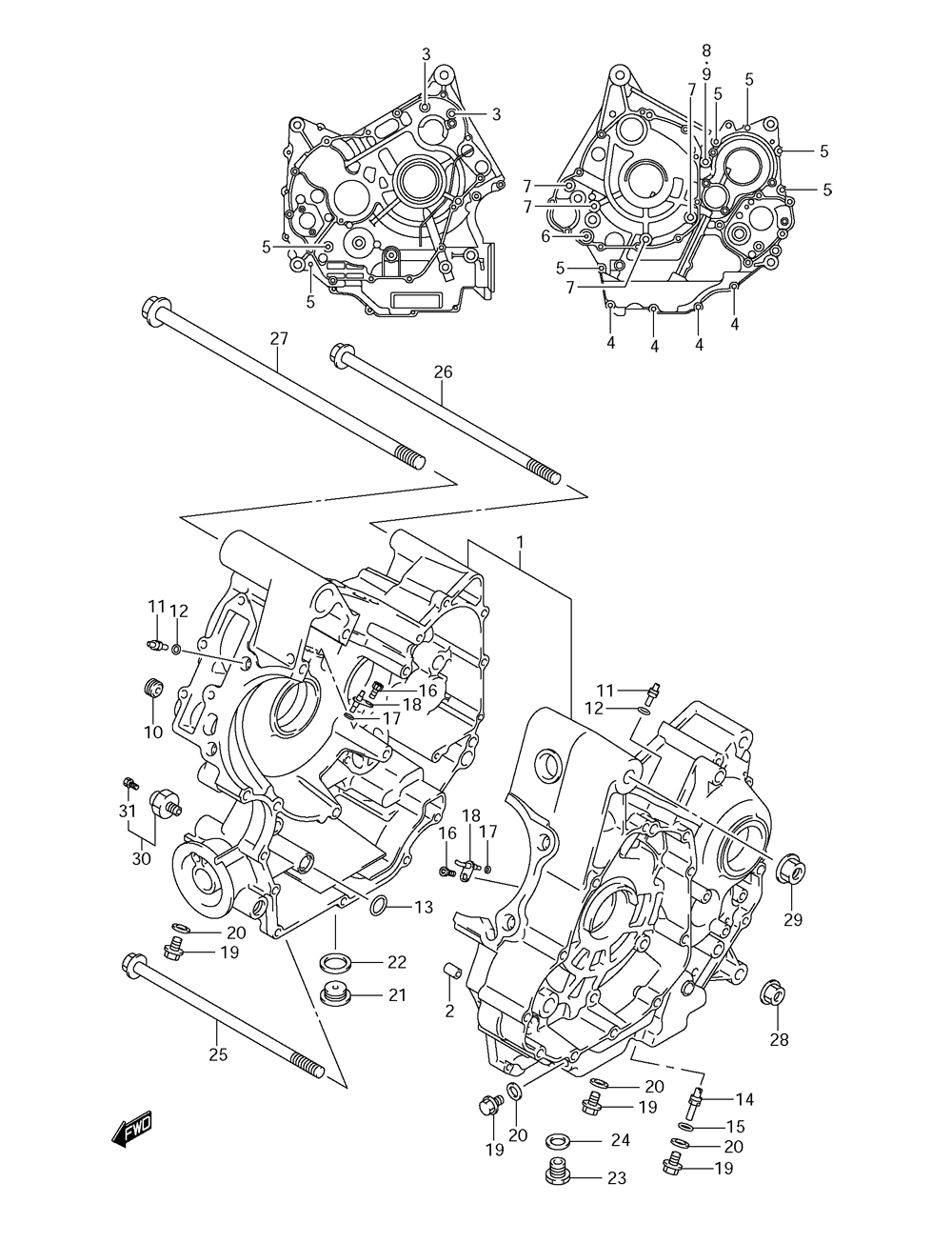

CRANKCASE для Suzuki DL1000 K8 - 2008 года выпуска
-
№АртикулНазвание
-
111306-06821 CRANKCASE SETCRANKCASE SET
-
211319-33E00 ...PIN...PIN
-
309106-08142 ...BOLT (LENGTH: 110)...BOLT (LENGTH: 110)
-
401547-0630B ...BOLT...BOLT
-
501547-0670B ...BOLT...BOLT
-
601547-0685B ...BOLT...BOLT
-
707120-0890B ...BOLT...BOLT
-
809106-08136 ...BOLT (LENGTH: 125)...BOLT (LENGTH: 125)
-
908322-0108B ...WASHER, CRANKCASE BOLT...WASHER, CRANKCASE BOLT
-
1011329-02F00 ...JET, OIL GALLERY 3.6...JET, OIL GALLERY 3.6
-
1109493-28010 ...JET, OIL GALLERY...JET, OIL GALLERY
-
1209280-04004 ...O RING (DIAMETER: 1.2, INSIDE DIAMETER: 4)...O RING (DIAMETER: 1.2, INSIDE DIAMETER: 4)
-
1309280-12009 ...O RING...O RING
-
1409493-20014 JET, OIL GALLERY MISSIONJET, OIL GALLERY MISSION
-
1509280-04004 O RINGO RING
-
1609106-06075 BOLTBOLT
-
1709280-05007 O RING (DIAMETER: 1.2, INSIDE DIAMETER: 4)O RING (DIAMETER: 1.2, INSIDE DIAMETER: 4)
-
1811390-06G10 JET, PISTON COOLINGJET, PISTON COOLING
-
1901550-0812B BOLTBOLT
-
2009168-08016 GASKETGASKET
-
2109248-16012 PLUGPLUG
-
2209168-16002 GASKETGASKET
-
2309247-14036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
2409168-14002 GASKETGASKET
-
2509103-10205 BOLT (LENGTH: 225)BOLT (LENGTH: 225)
-
2609103-10347 BOLT (LENGTH: 275)BOLT (LENGTH: 275)
-
2709103-12073 BOLT (LENGTH: 330)BOLT (LENGTH: 330)
-
2808319-3110B NUTNUT
-
2909159-12054 NUTNUT
-
3037820-33D10 SWITCH ASSEMBLY, OIL PRESSURESWITCH ASSEMBLY, OIL PRESSURE
-
3137822-33D00 ...BOLT...BOLT
