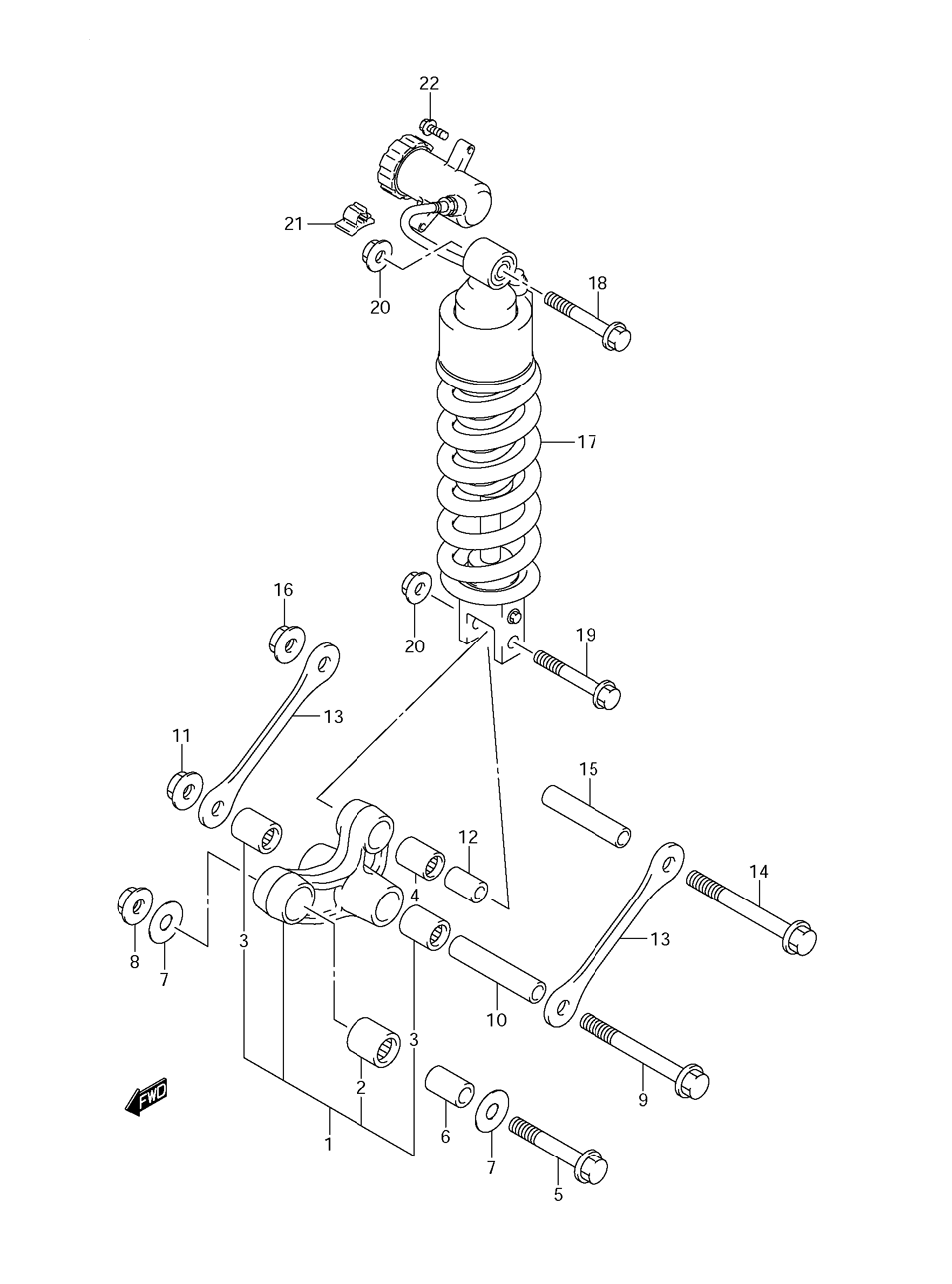

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki DL1000 K8 - 2008 года выпуска
-
№АртикулНазвание
-
162600-06870 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20073 ...BEARING, FRONT (20X27X30)...BEARING, FRONT (20X27X30)
-
309263-17037 ...BEARING, CENTER (17X24X25)...BEARING, CENTER (17X24X25)
-
409263-17034 ...BEARING, REAR (17X24X26)...BEARING, REAR (17X24X26)
-
562658-19F00 BOLT, FRONT (12X78)BOLT, FRONT (12X78)
-
662684-12C00 SPACER, FRONT (12X78)SPACER, FRONT (12X78)
-
709160-12037 WASHERWASHER
-
809159-12056 NUTNUT
-
962621-19D00 BOLT, CENTER (12X111)BOLT, CENTER (12X111)
-
1009180-12122 SPACER, CENTER (12X17X85)SPACER, CENTER (12X17X85)
-
1109159-12056 NUTNUT
-
1262684-40A10 SPACER, REAR (10X17X30)SPACER, REAR (10X17X30)
-
1362641-06G00 ROD, REAR CUSHIONROD, REAR CUSHION
-
1462621-19D00 BOLT, ROD (12X111)BOLT, ROD (12X111)
-
1509180-12122 SPACER, ROD (12X17X85)SPACER, ROD (12X17X85)
-
1609159-12056 NUTNUT
-
1762100-06G10-13L ABSORBER ASSEMBLY, REAR SHOCK (SILVER) (FOR CANADA ONLY)ABSORBER ASSEMBLY, REAR SHOCK (SILVER) (FOR CANADA ONLY)
-
1762100-06G20-13L ABSORBER ASSEMBLY, REAR SHOCK (SILVER) (FOR UNITED STATES ONLY)ABSORBER ASSEMBLY, REAR SHOCK (SILVER) (FOR UNITED STATES ONLY)
-
1809103-10033 BOLT, UPPER (10X70)BOLT, UPPER (10X70)
-
1909103-10143 BOLT, LOWERBOLT, LOWER
-
2009159-10115 NUTNUT
-
2109403-10313 CLAMP, ADJUSTER HOSECLAMP, ADJUSTER HOSE
-
2201550-0616A BOLT, TANKBOLT, TANK
