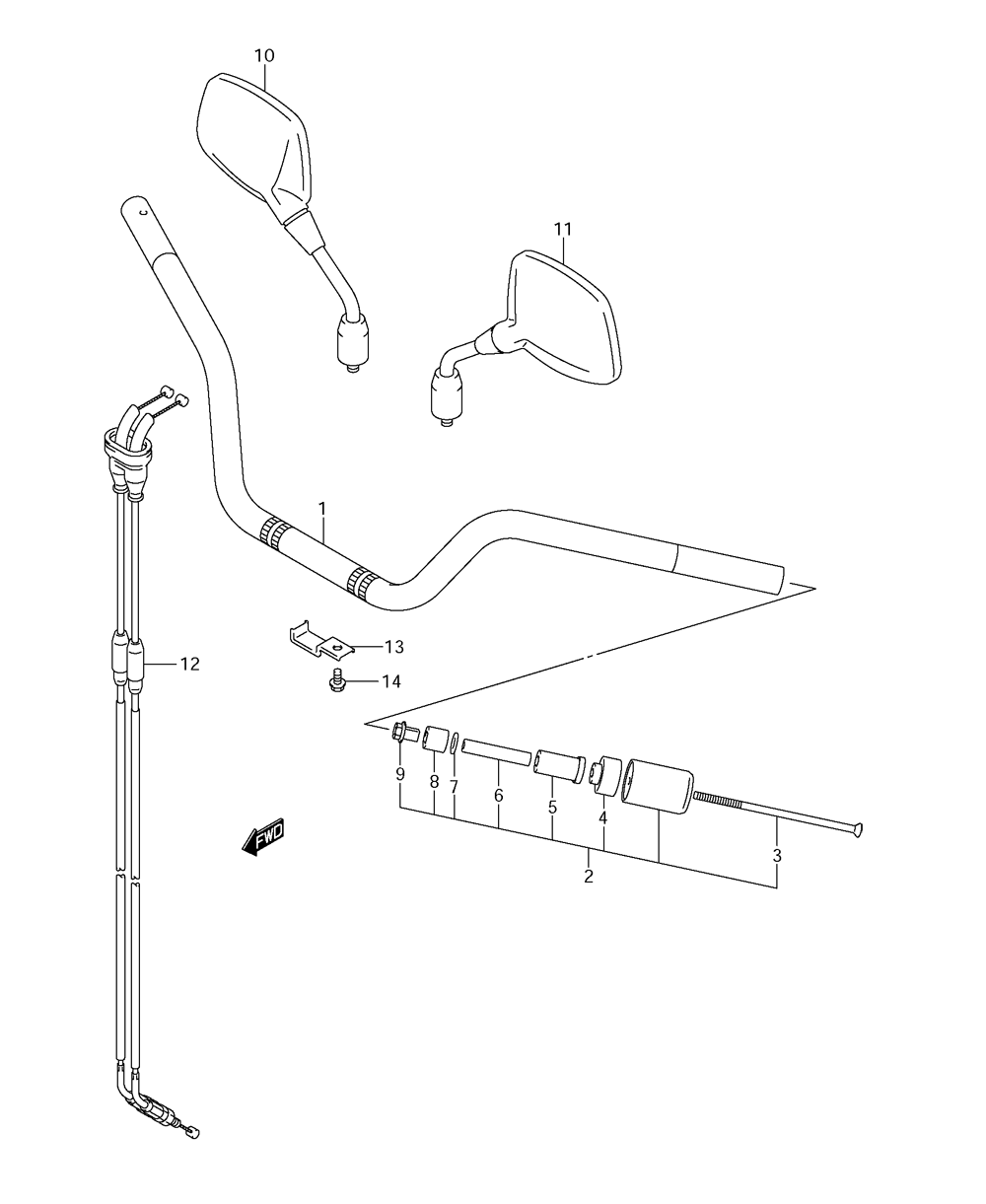

HANDLEBAR для Suzuki DL1000 K8 - 2008 года выпуска
-
№АртикулНазвание
-
156111-06G00 HANDLEBARHANDLEBAR
-
256200-06861 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
309127-06023 ...SCREW...SCREW
-
457346-14G00 ...SPACER...SPACER
-
556272-06G00 ...EXPANDER, OUTER...EXPANDER, OUTER
-
656276-17D00 ...SPACER...SPACER
-
709160-06130 ...WASHER...WASHER
-
856272-10G00 ...EXPANDER, INNER...EXPANDER, INNER
-
956273-10G10 ...NUT...NUT
-
1056500-04F21 MIRROR ASSEMBLY, REAR VIEW RIGHT HANDMIRROR ASSEMBLY, REAR VIEW RIGHT HAND
-
1156600-04F21 MIRROR ASSEMBLY, REAR VIEW LEFT HANDMIRROR ASSEMBLY, REAR VIEW LEFT HAND
-
1258300-06G11 CABLE ASSEMBLY, THROTTLECABLE ASSEMBLY, THROTTLE
-
1358621-06G00 GUIDE, CABLEGUIDE, CABLE
-
1402162-0612B BOLTBOLT
