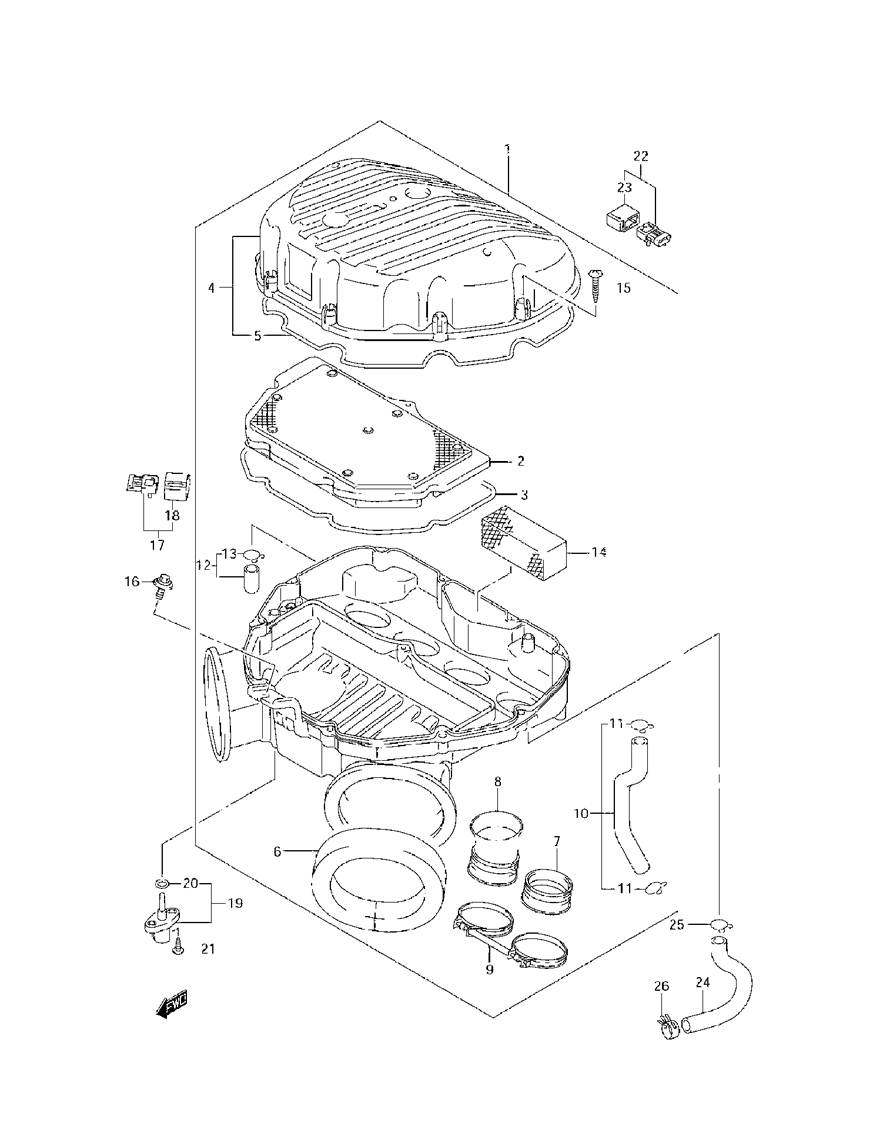

AIR CLEANER для Suzuki GSX-R1000 K8 - 2008 года выпуска
-
№АртикулНазвание
-
113700-21H00 CLEANER ASSY, AIR (INCL. 2-15)CLEANER ASSY, AIR (INCL. 2-15)
-
213780-41G00 FILTER ASSYFILTER ASSY
-
313756-41G00 GASKET, CASEGASKET, CASE
-
413740-21H00 CAP, AIR CLEANERCAP, AIR CLEANER
-
513746-41G00 GASKET, CAPGASKET, CAP
-
613736-21H00 CUSHION, DUCTCUSHION, DUCT
-
713881-41G00 TUBE, OUTLET ATUBE, OUTLET A
-
813882-41G00 TUBE, OUTLET BTUBE, OUTLET B
-
913170-15H00 CLAMPCLAMP
-
1013850-21H00 TUBE, BREATHERTUBE, BREATHER
-
1109401-14101 CLIPCLIP
-
1213856-19B03 PLUG, BREATHERPLUG, BREATHER
-
1309401-14101 CLIPCLIP
-
1413788-21H00 FILTER, BREATHERFILTER, BREATHER
-
1503541-0525B SCREWSCREW
-
1609116-06130 BOLTBOLT
-
1715630-29G20 SENSOR, BOOST (INCL. 18)SENSOR, BOOST (INCL. 18)
-
1815625-29G10 COVERCOVER
-
1913650-14G10 SENSOR, AIR TEMPERATURE (INCL. 20)SENSOR, AIR TEMPERATURE (INCL. 20)
-
2013655-14G10 O RINGO RING
-
2103511-0516A BOLTBOLT
-
2215630-29G10 SENSOR, AIR PRESSURE (INCL. 23)SENSOR, AIR PRESSURE (INCL. 23)
-
2315625-29G00 COVERCOVER
-
2413697-21H00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2509401-15101 CLIPCLIP
-
2609401-16403 CLIPCLIP
