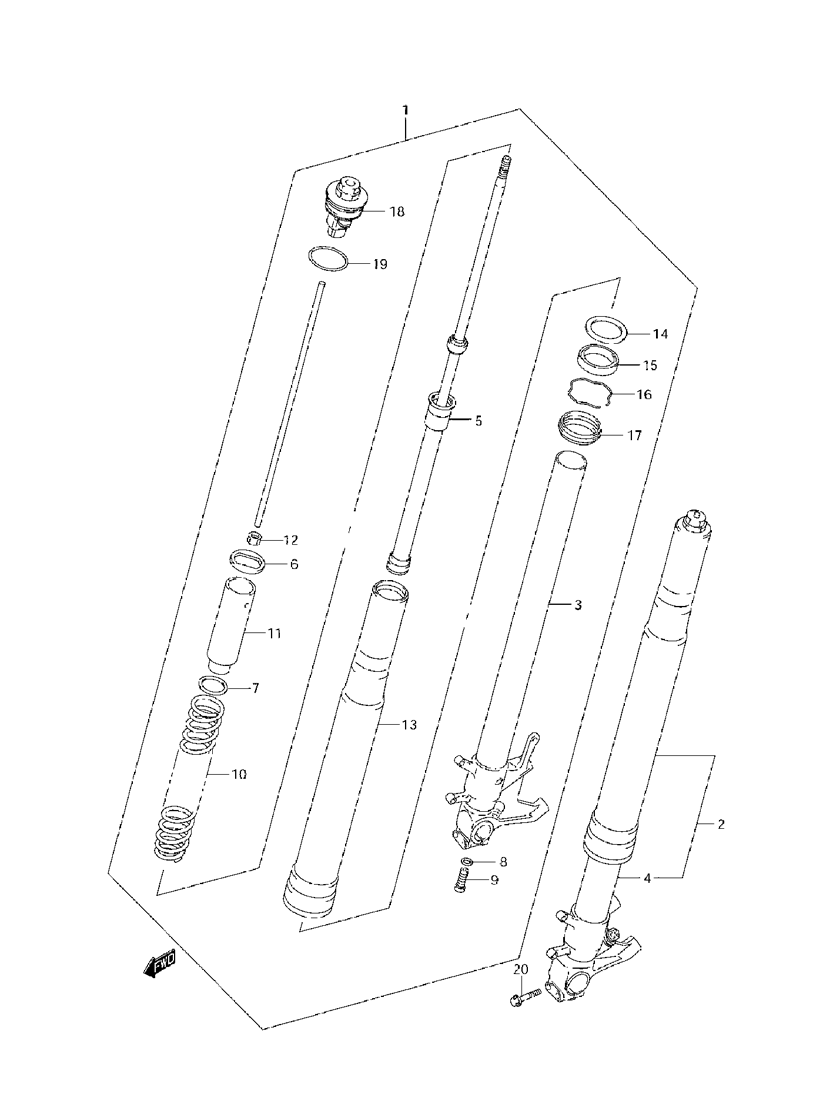

SUSPENSION - FRONT FORK для Suzuki GSX-R1000 K8 - 2008 года выпуска
-
№АртикулНазвание
-
151103-21H00 DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 3-19)DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 3-19)
-
251104-21H00 DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 3-19)DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 3-19)
-
351110-21H00 TUBE, INNER RIGHT HANDTUBE, INNER RIGHT HAND
-
451120-21H00 TUBE, INNER LEFT HANDTUBE, INNER LEFT HAND
-
551146-21H00 CYLINDERCYLINDER
-
651158-40F30 WASHER, SPACERWASHER, SPACER
-
751158-41G00 WASHERWASHER
-
851148-41310 GASKETGASKET
-
951147-05H00 BOLTBOLT
-
1051171-21H00 SPRINGSPRING
-
1151176-21H00 SPACER, SPRINGSPACER, SPRING
-
1251129-21H00 NUTNUT
-
1351130-21H00 TUBE, OUTERTUBE, OUTER
-
1451158-14200 SPACER, SEALSPACER, SEAL
-
1551153-41G00 SEAL, OILSEAL, OIL
-
1651156-14200 RING, STOPPERRING, STOPPER
-
1751173-41G00 SEAL, DUSTSEAL, DUST
-
1851351-21H00 BOLT, FORKBOLT, FORK
-
1962278-14100 O RING, FORK BOLTO RING, FORK BOLT
-
2051166-24F50 BOLTBOLT
