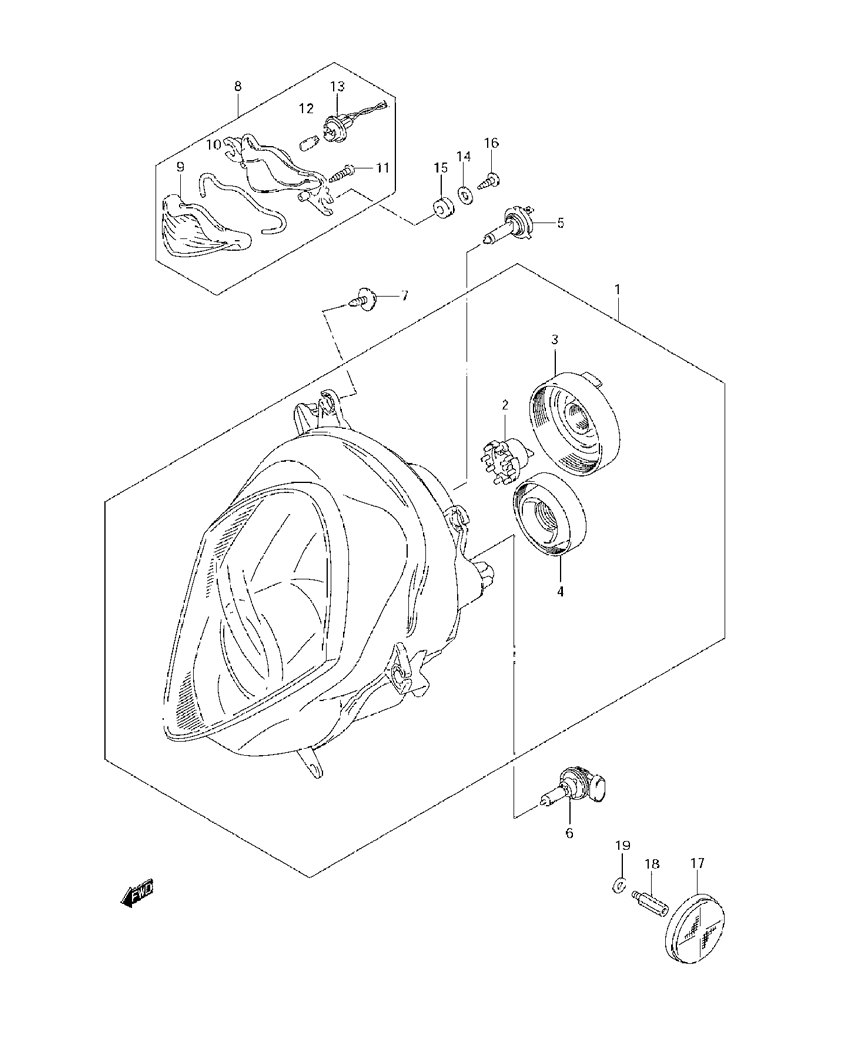

HEADLAMP для Suzuki GSX-R1000 K8 - 2008 года выпуска
-
№АртикулНазвание
-
135100-21H00-999 HEADLAMP ASSY (INCL. 2-4)HEADLAMP ASSY (INCL. 2-4)
-
234175-33E50 ADAPTER ASSYADAPTER ASSY
-
335179-64G00 SOCKET, COVERSOCKET, COVER
-
435179-01H00 SOCKET, COVERSOCKET, COVER
-
509471-12188 BULB (12V55W,H7)BULB (12V55W,H7)
-
609471-12222 BULB (12V65W,H9)BULB (12V65W,H9)
-
709136-05062 SCREW, HEADLAMPSCREW, HEADLAMP
-
836110-21H00 LAMP ASSY, FRONT POSITION (INCL. 9-13)LAMP ASSY, FRONT POSITION (INCL. 9-13)
-
936112-21H00 LENSLENS
-
1035913-02F00 GASKETGASKET
-
1103211-04146 SCREWSCREW
-
1209471-12216 BULB (12V5W)BULB (12V5W)
-
1336118-21H00 SOCKET, CORDSOCKET, CORD
-
1409160-05045 WASHER (5.5X18X1)WASHER (5.5X18X1)
-
1509320-08001 CUSHIONCUSHION
-
1603511-0510A SCREWSCREW
-
1735950-14A00 REFLEX REFLECTOR ASSY, FRREFLEX REFLECTOR ASSY, FR
-
1809119-06109 BOLTBOLT
-
1909160-08090 WASHER (8.5X14X1.6)WASHER (8.5X14X1.6)
