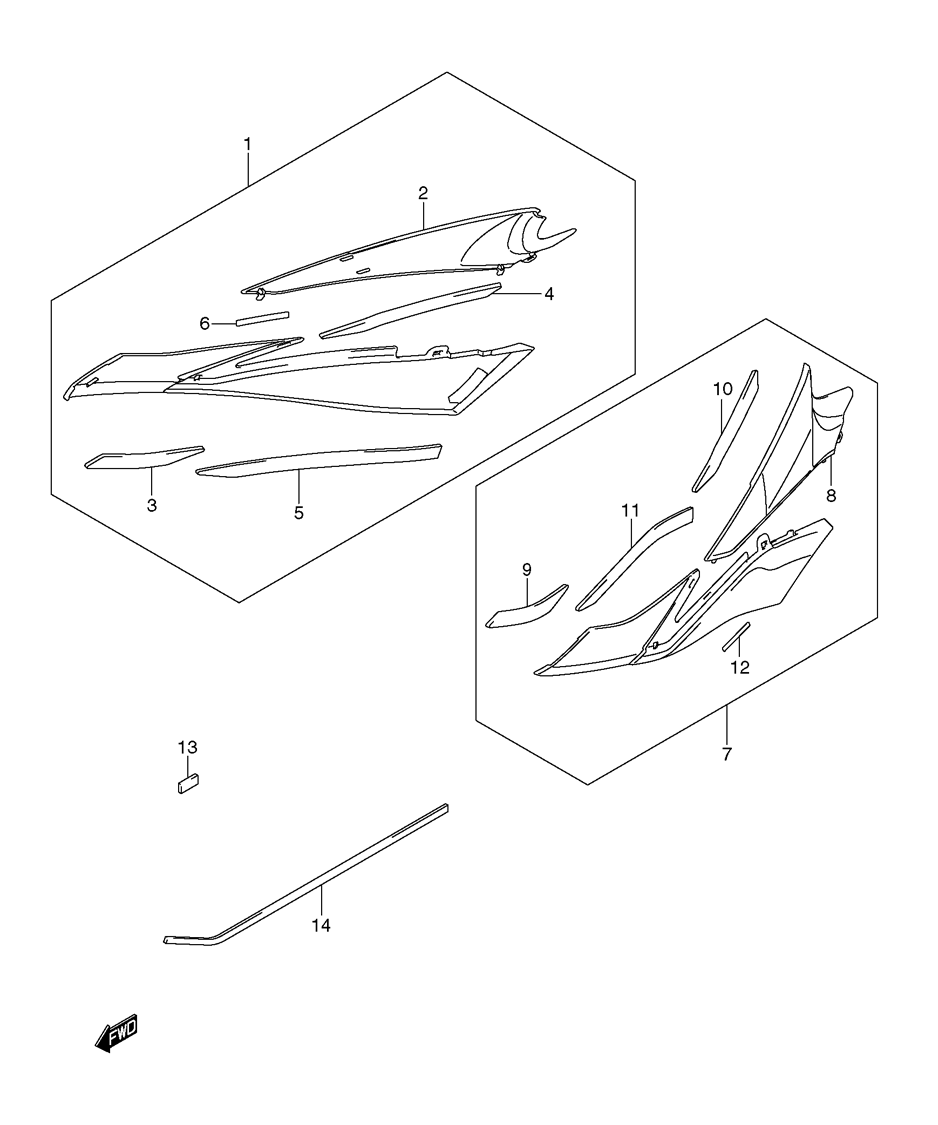

FRAME - SIDE COVER для Suzuki GSX-R750 K8 - 2008 года выпуска
-
№АртикулНазвание
-
147410-37H00-019 COVER, FRAME SIDE RIGHT HAND (BLACK) (019 FOR CRU)COVER, FRAME SIDE RIGHT HAND (BLACK) (019 FOR CRU)
-
147410-37H00-YBD COVER, FRAME SIDE RIGHT HAND (WHITE) (YBD FOR CWH)COVER, FRAME SIDE RIGHT HAND (WHITE) (YBD FOR CWH)
-
147410-37H00-YLF COVER, FRAME SIDE RIGHT HAND (GRAY) (YLF FOR ECE)COVER, FRAME SIDE RIGHT HAND (GRAY) (YLF FOR ECE)
-
247411-37H00-019 ...COVER, UPPER RIGHT HAND (BLACK) (019)...COVER, UPPER RIGHT HAND (BLACK) (019)
-
247411-37H00-YBD ...COVER, UPPER RIGHT HAND (WHITE) (YBD)...COVER, UPPER RIGHT HAND (WHITE) (YBD)
-
247411-37H00-YLF ...COVER, UPPER RIGHT HAND (GRAY) (YLF)...COVER, UPPER RIGHT HAND (GRAY) (YLF)
-
347412-37H00 ...CUSHION, FRONT RIGHT HAND...CUSHION, FRONT RIGHT HAND
-
447413-37H00 ...CUSHION, UPPER RIGHT HAND...CUSHION, UPPER RIGHT HAND
-
547415-37H00 ...CUSHION, LOWER RIGHT HAND...CUSHION, LOWER RIGHT HAND
-
647416-37H00 ...CUSHION, CENTER...CUSHION, CENTER
-
747510-37H00-019 COVER, FRAME SIDE LEFT HAND (BLACK) (019 FOR CRU)COVER, FRAME SIDE LEFT HAND (BLACK) (019 FOR CRU)
-
747510-37H00-YBD COVER, FRAME SIDE LEFT HAND (WHITE) (YBD FOR CWH)COVER, FRAME SIDE LEFT HAND (WHITE) (YBD FOR CWH)
-
747510-37H00-YLF COVER, FRAME SIDE LEFT HAND (GRAY) (YLF FOR ECE)COVER, FRAME SIDE LEFT HAND (GRAY) (YLF FOR ECE)
-
847511-37H00-019 ...COVER, UPPER LEFT HAND (BLACK) (019)...COVER, UPPER LEFT HAND (BLACK) (019)
-
847511-37H00-YBD ...COVER, UPPER LEFT HAND (WHITE) (YBD)...COVER, UPPER LEFT HAND (WHITE) (YBD)
-
847511-37H00-YLF ...COVER, UPPER LEFT HAND (GRAY) (YLF)...COVER, UPPER LEFT HAND (GRAY) (YLF)
-
947512-37H00 ...CUSHION, FRONT LEFT HAND...CUSHION, FRONT LEFT HAND
-
1047513-37H00 ...CUSHION, UPPER LEFT HAND...CUSHION, UPPER LEFT HAND
-
1147515-37H00 ...CUSHION, LOWER LEFT HAND...CUSHION, LOWER LEFT HAND
-
1247416-37H00 ...CUSHION, CENTER...CUSHION, CENTER
-
1344894-24A00 CUSHION, MIDDLECUSHION, MIDDLE
-
1447412-21H00 CUSHION, UPPERCUSHION, UPPER
