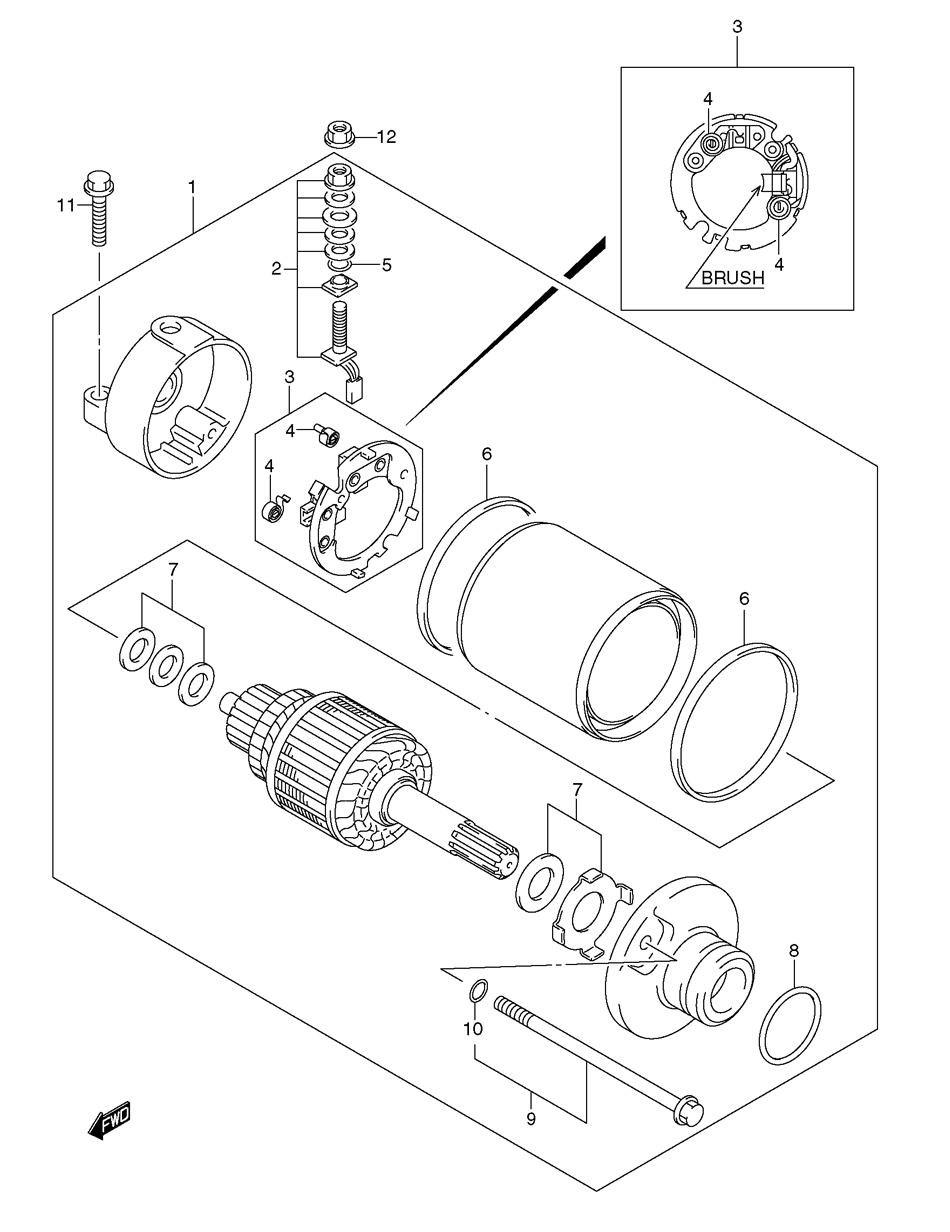

STARTING MOTOR для Suzuki GSX-R750 K8 - 2008 года выпуска
-
№АртикулНазвание
-
131100-37H00 MOTOR ASSEMBLY, STARTINGMOTOR ASSEMBLY, STARTING
-
231130-13E00 ...BRUSH TERMINAL SET...BRUSH TERMINAL SET
-
331132-13E00 ...BRUSH HOLDER SET...BRUSH HOLDER SET
-
431135-31300 ......SPRING, BRUSH......SPRING, BRUSH
-
531143-49040 ...O RING...O RING
-
631264-13E00 ...O RING...O RING
-
731170-19B10 ...WASHER SET...WASHER SET
-
809280-24003 ...O RING (DIAMETER: 3.0,INSIDE DIAMETER: 24.5)...O RING (DIAMETER: 3.0,INSIDE DIAMETER: 24.5)
-
931280-15D10 ...SET BOLT...SET BOLT
-
1031156-13E00 ......O RING......O RING
-
1109103-06212 BOLT (6X25)BOLT (6X25)
-
1208361-3506A NUTNUT
