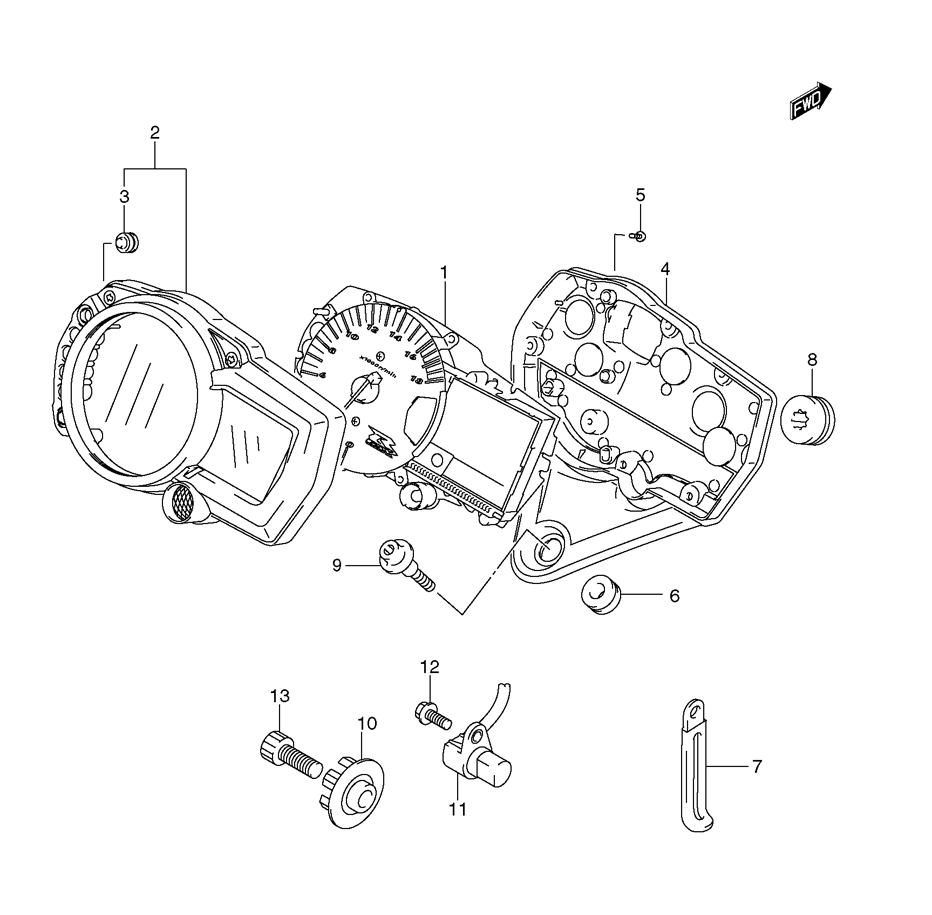

SPEEDOMETER для Suzuki GSX-R750 K8 - 2008 года выпуска
-
№АртикулНазвание
-
134120-38H20 SPEED & TACHOMETER ASSEMBLYSPEED & TACHOMETER ASSEMBLY
-
134120-38H30 SPEED & TACHOMETER ASSEMBLY (FOR CANADA ONLY)SPEED & TACHOMETER ASSEMBLY (FOR CANADA ONLY)
-
234150-01H20 CASE, UPPERCASE, UPPER
-
334124-39G00 ...SWITCH, RUBBER...SWITCH, RUBBER
-
434111-01H00 CASE, LOWERCASE, LOWER
-
509132-03008 SCREW (3X16)SCREW (3X16)
-
634955-33E00 CUSHIONCUSHION
-
709404-06429 CLAMP (LENGTH: 45)CLAMP (LENGTH: 45)
-
834955-13E00 CUSHION, METERCUSHION, METER
-
934149-18G00 SCREWSCREW
-
1034981-38G00 ROTOR, SPEEDROTOR, SPEED
-
1134990-35F00 SENSOR, SPEEDSENSOR, SPEED
-
1207120-0512A BOLT, SPEED SENSORBOLT, SPEED SENSOR
-
1307130-0825B BOLT, SPEED ROTORBOLT, SPEED ROTOR
