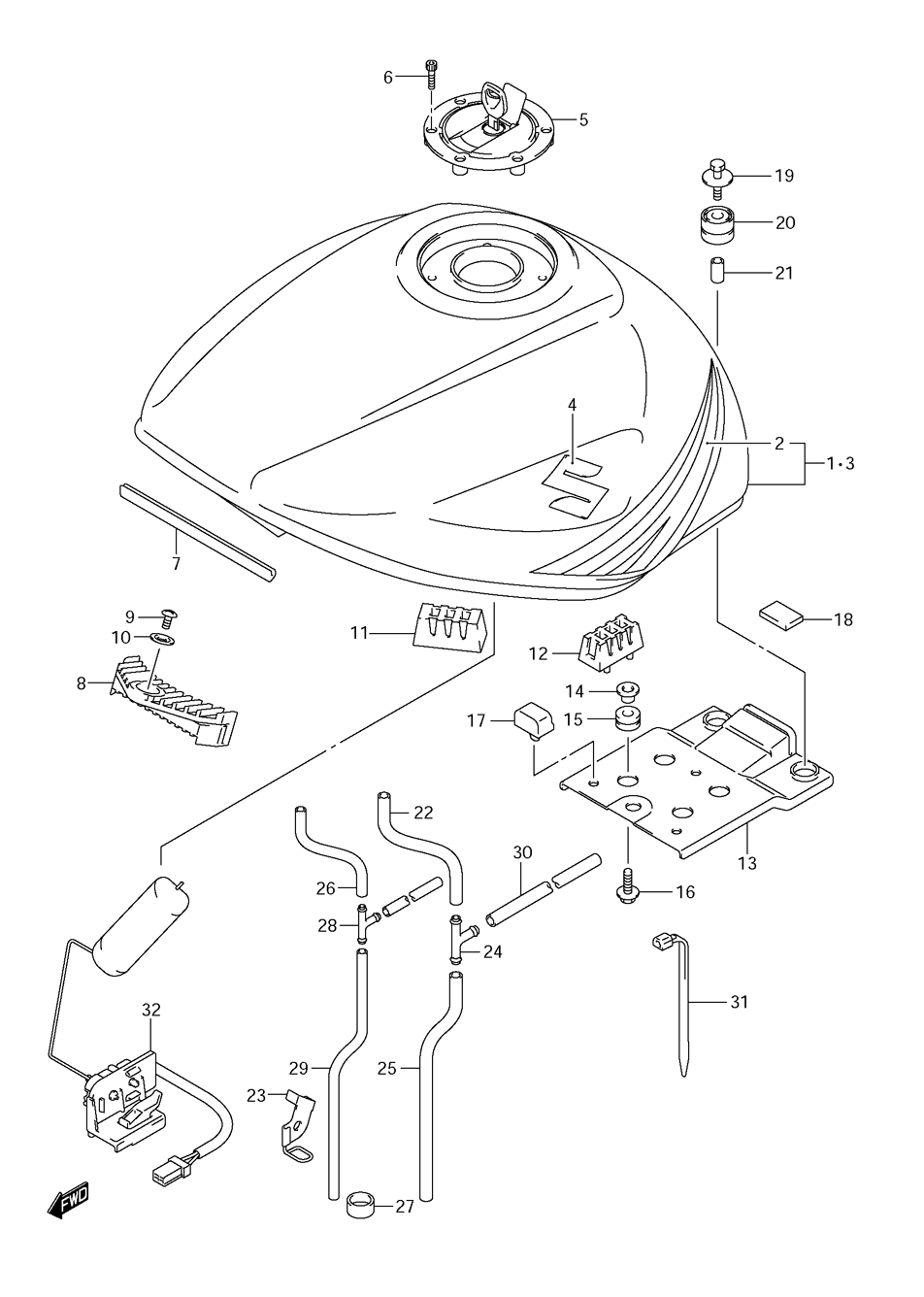

FUEL TANK для Suzuki GSX650F K8 - 2008 года выпуска
-
№АртикулНазвание
-
144100-17H00-YKY TANK ASSEMBLY, FUEL (BLUE) (YKY FOR CWH) (EXCEPT CALF.)TANK ASSEMBLY, FUEL (BLUE) (YKY FOR CWH) (EXCEPT CALF.)
-
144100-17H00-YAY TANK ASSEMBLY, FUEL (BLACK) (YAY FOR EGR) (EXCEPT CALF.)TANK ASSEMBLY, FUEL (BLACK) (YAY FOR EGR) (EXCEPT CALF.)
-
144100-17H20-YKY TANK ASSEMBLY, FUEL (BLUE) (YKY FOR CWH) (FOR CALF. ONLY)TANK ASSEMBLY, FUEL (BLUE) (YKY FOR CWH) (FOR CALF. ONLY)
-
144100-17H20-YAY TANK ASSEMBLY, FUEL (BLACK) (YAY FOR EGR) (FOR CALF. ONLY)TANK ASSEMBLY, FUEL (BLACK) (YAY FOR EGR) (FOR CALF. ONLY)
-
268110-17H00-FJF ...TAPE SET (FJF FOR YKY)...TAPE SET (FJF FOR YKY)
-
268110-17H00-FJG ...TAPE SET (FJG FOR YAY)...TAPE SET (FJG FOR YAY)
-
344100-18H00-YAY TANK ASSEMBLY, FUEL (BLACK) (YAY) (FOR CANADA ONLY)TANK ASSEMBLY, FUEL (BLACK) (YAY) (FOR CANADA ONLY)
-
468111-18G20 EMBLEM, "S"EMBLEM, "S"
-
544200-16850 CAP SET, FUEL TANK (EXCEPT CALF.)CAP SET, FUEL TANK (EXCEPT CALF.)
-
544200-16870 CAP SET, FUEL TANK (FOR CALF. ONLY)CAP SET, FUEL TANK (FOR CALF. ONLY)
-
609106-05017 BOLTBOLT
-
768241-04X50-300 MOLDINGMOLDING
-
844511-27E00 CUSHION, FRONTCUSHION, FRONT
-
902142-0510B SCREWSCREW
-
1009169-05012 WASHERWASHER
-
1145149-45330 CUSHION, SIDECUSHION, SIDE
-
1244541-31F00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
1344141-38G00 BRACKET, REARBRACKET, REAR
-
1409169-06062 WASHER, LOWERWASHER, LOWER
-
1509320-08001 CUSHIONCUSHION
-
1609116-06192 BOLTBOLT
-
1745149-21G00 CUSHIONCUSHION
-
1847163-10FA0 CUSHIONCUSHION
-
1909116-06172 BOLTBOLT
-
2044541-38G00 CUSHIONCUSHION
-
2109180-06271 SPACERSPACER
-
2244423-16G10 HOSE, DRAINHOSE, DRAIN
-
2344480-17H00 GUIDE, DRAIN HOSEGUIDE, DRAIN HOSE
-
2409367-08004 3 WAY, DRAIN HOSE3 WAY, DRAIN HOSE
-
2509352-70103-600 HOSE, DRAIN NO.2HOSE, DRAIN NO.2
-
2644424-38G00 HOSE, BREATHERHOSE, BREATHER
-
2709352-13162-010 HOSE, JOINTHOSE, JOINT
-
2809367-06002 3 WAY3 WAY
-
2909352-50823-600 HOSE, NO.1 (LENGTH: 600->300)HOSE, NO.1 (LENGTH: 600->300)
-
3009352-50823-00B HOSE, NO.2 (LENGTH: 1000->610)HOSE, NO.2 (LENGTH: 1000->610)
-
3109407-14403 CLAMPCLAMP
-
3234810-18H00 GAUGE, FUEL LEVELGAUGE, FUEL LEVEL
