SEAT для Suzuki GSX650F K8 - 2008 года выпуска
-

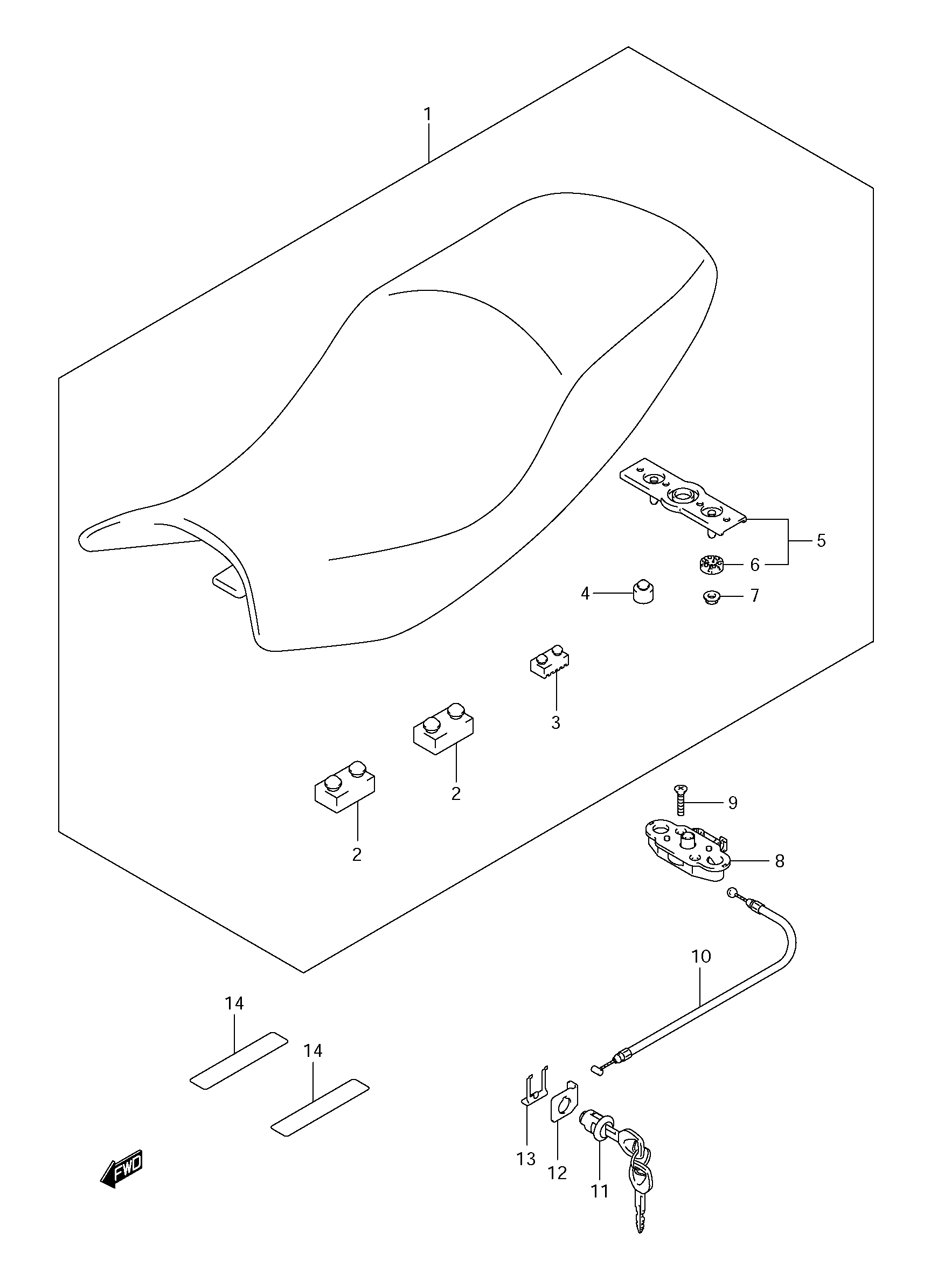

№АртикулНазвание
-
145100-17H00-P3H SEAT ASSEMBLY (P3H)SEAT ASSEMBLY (P3H)
-
245149-17H00 ...CUSHION...CUSHION
-
345149-42F00 ...CUSHION...CUSHION
-
409321-10011 ...CUSHION...CUSHION
-
545290-42F02 ...STRIKER...STRIKER
-
645213-42F00 ......CUSHION......CUSHION
-
708319-3106A ...NUT...NUT
-
845220-47H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
902122-0630B SCREWSCREW
-
1045280-33400 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1195700-14810 LOCK SET, SEATLOCK SET, SEAT
-
1245288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
1345289-11F00 PLATE, SEAT LOCKPLATE, SEAT LOCK
-
1445414-38G00 TAPE, SEAT LOWER COVERTAPE, SEAT LOWER COVER
