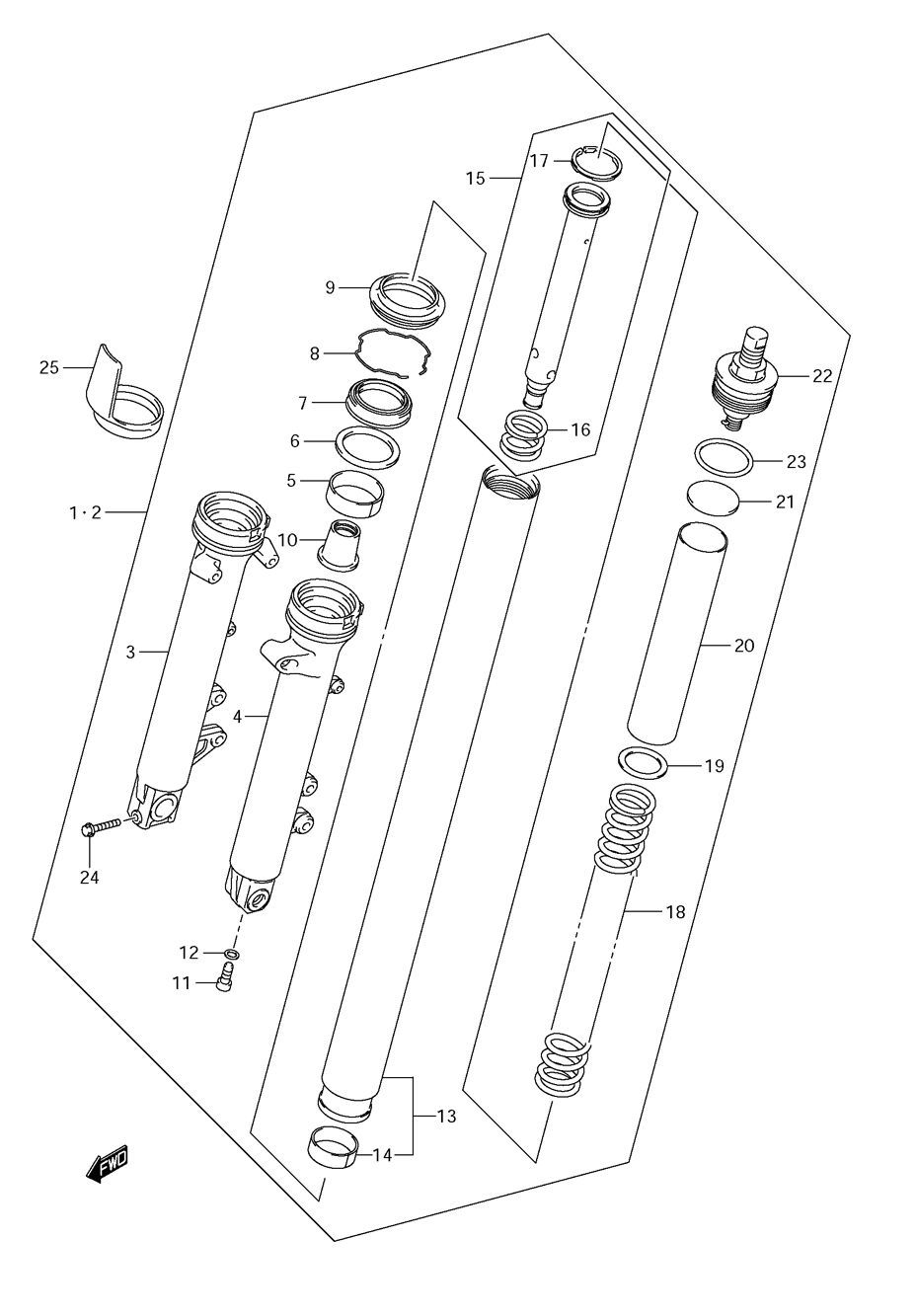

SUSPENSION - FRONT FORK для Suzuki GSX650F K8 - 2008 года выпуска
-
№АртикулНазвание
-
151103-17H10 DAMPER ASSEMBLY, FRONT FORK RIGHT HANDDAMPER ASSEMBLY, FRONT FORK RIGHT HAND
-
251104-17H10 DAMPER ASSEMBLY, FRONT FORK LEFT HANDDAMPER ASSEMBLY, FRONT FORK LEFT HAND
-
351130-17H00 ...TUBE, OUTER RIGHT HAND...TUBE, OUTER RIGHT HAND
-
451140-17H00 ...TUBE, OUTER LEFT HAND...TUBE, OUTER LEFT HAND
-
551167-26E10 ...METAL, SLIDE...METAL, SLIDE
-
651158-05A00 ...WASHER...WASHER
-
751153-10G50 ...SEAL, OIL...SEAL, OIL
-
851156-49440 ...RING, STOPPER...RING, STOPPER
-
951173-14F00 ...SEAL, DUST...SEAL, DUST
-
1051195-33D10 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
1151147-16510 ...BOLT...BOLT
-
1251148-41310 ...WASHER...WASHER
-
1351110-17H00 ...TUBE, INNER...TUBE, INNER
-
1451121-23EA0 ......BUSH, SLIDE......BUSH, SLIDE
-
1551146-17H20 ...CYLINDER...CYLINDER
-
1651177-06C00 ......SPRING......SPRING
-
1751196-31F00 ......RING, PISTON......RING, PISTON
-
1851171-17H20 ...SPRING, FRONT...SPRING, FRONT
-
1951356-17H00 ...SEAT, SPRING LOWER...SEAT, SPRING LOWER
-
2051176-12D10 ...COLLAR, SPRING...COLLAR, SPRING
-
2151192-27A00 ...O RING...O RING
-
2251351-31FA0 ...CAP...CAP
-
2309280-32001 ...O RING...O RING
-
2451451-10G00 BOLTBOLT
-
2551201-31F00 PROTECTORPROTECTOR
