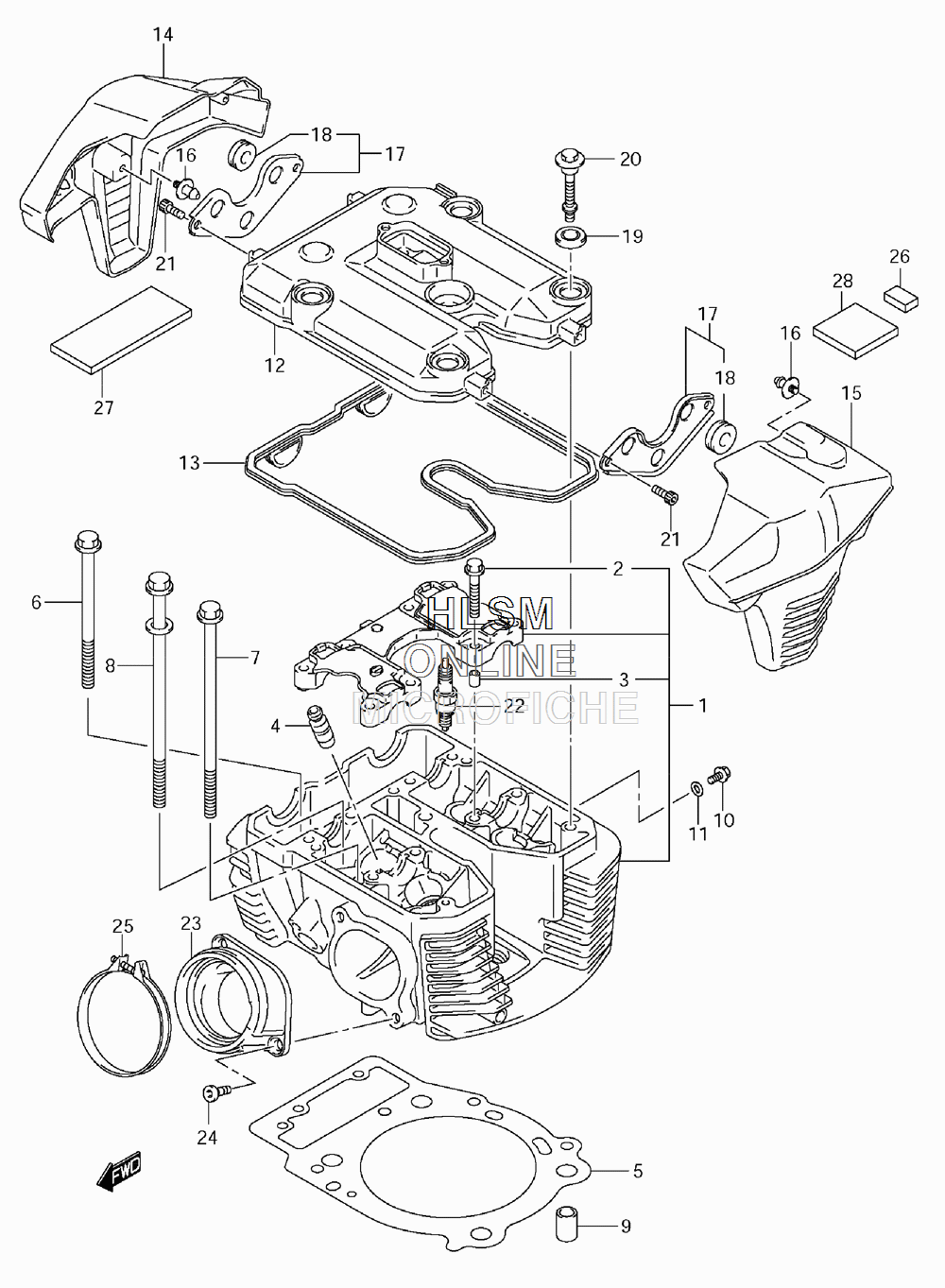

CYLINDER HEAD (REAR) для Suzuki VLR1800T K8 - 2008 года выпуска
-
№АртикулНазвание
-
111103-48G10 HEAD ASSY, CYLINDER REAR (INCL. 2-3)HEAD ASSY, CYLINDER REAR (INCL. 2-3)
-
209103-06026 BOLTBOLT
-
309206-08001 PINPIN
-
411115-65J00-001 GUIDE, VALVE (OS 0.3) (OPT)GUIDE, VALVE (OS 0.3) (OPT)
-
511142-48G00 GASKETGASKET
-
609103-08305 BOLT (8X140)BOLT (8X140)
-
709103-08415 BOLT (8X180)BOLT (8X180)
-
809103-10396 BOLT (10X190)BOLT (10X190)
-
904211-13189 PINPIN
-
1009103-06222 BOLT, OIL GALLERYBOLT, OIL GALLERY
-
1109168-06023 GASKETGASKET
-
1211170-48G00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
1311173-48G00 GASKETGASKET
-
1411174-48G10 CAP, HEAD COVER NO.1CAP, HEAD COVER NO.1
-
1511175-48G10 CAP, HEAD COVER NO.2CAP, HEAD COVER NO.2
-
1611176-48G00 BOLTBOLT
-
1711180-48G20 BRACKET (INCL. 18)BRACKET (INCL. 18)
-
1811183-22H00 CUSHIONCUSHION
-
1911192-13E00 CUSHIONCUSHION
-
2009111-06091 BOLT (6X37.5)BOLT (6X37.5)
-
2107130-0612A BOLTBOLT
-
2209482-00414 SPARK PLUG, CR7EK (NGK)SPARK PLUG, CR7EK (NGK)
-
2209482-00415 SPARK PLUG, U22ETR (DENSO)SPARK PLUG, U22ETR (DENSO)
-
2209482-00410 SPARK PLUG, CR9EK (NGK) (OPT)SPARK PLUG, CR9EK (NGK) (OPT)
-
2209482-00411 SPARK PLUG, U27ETR (DENSO) (OPT)SPARK PLUG, U27ETR (DENSO) (OPT)
-
2209482-00412 SPARK PLUG, CR8EK (NGK) (OPT)SPARK PLUG, CR8EK (NGK) (OPT)
-
2209482-00413 SPARK PLUG, U24ETR (DENSO) (OPT)SPARK PLUG, U24ETR (DENSO) (OPT)
-
2313101-22H00 PIPE ASSY, INTAKEPIPE ASSY, INTAKE
-
2409120-06008 SCREW (6X20.5)SCREW (6X20.5)
-
2513170-22H00 CLAMPCLAMP
-
2611177-48G00 CUSHION, CAPCUSHION, CAP
-
2711177-22H00 CUSHION, CAPCUSHION, CAP
-
2833442-41F00 CUSHION, CAPCUSHION, CAP
