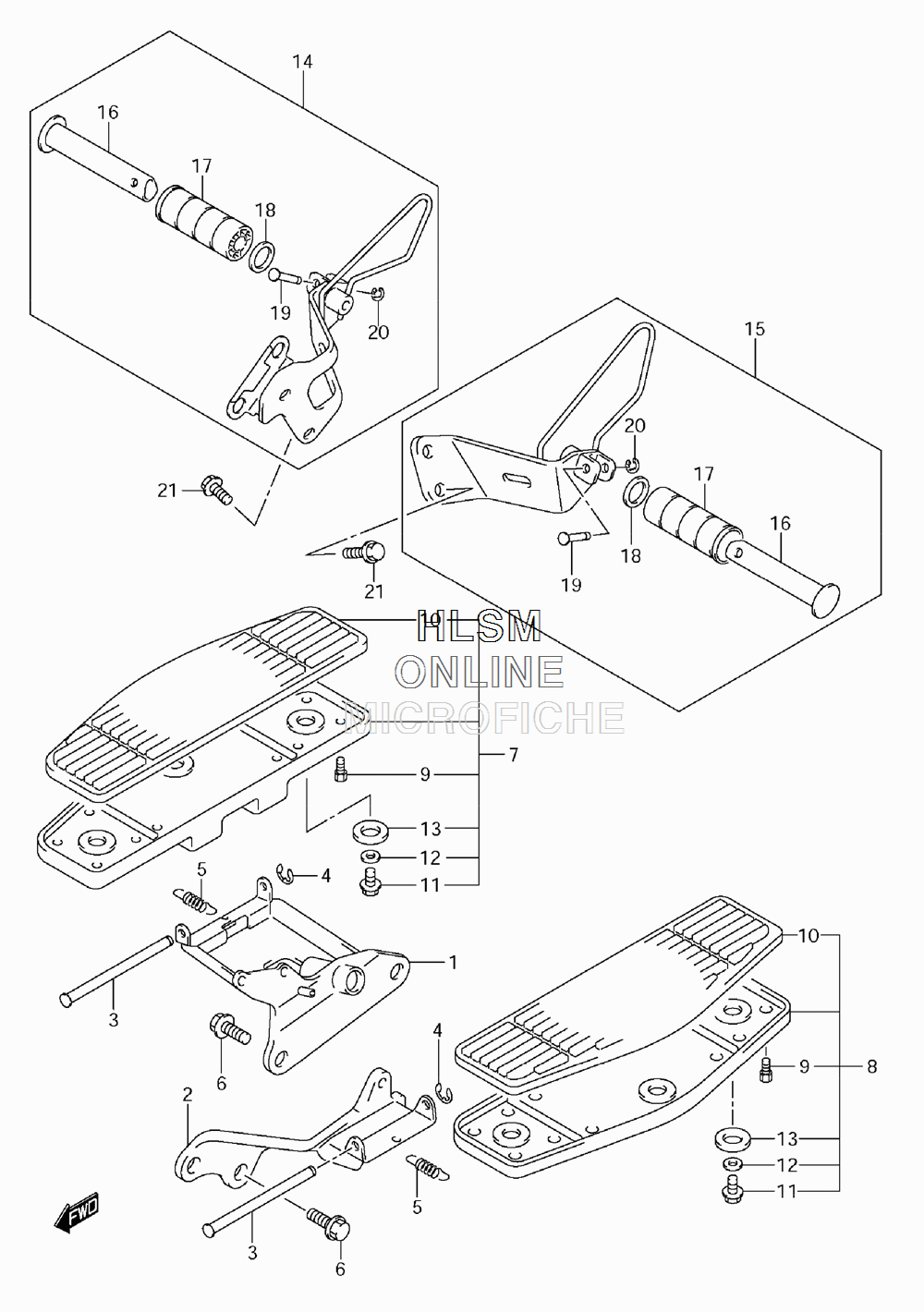

FOOTREST для Suzuki VLR1800T K8 - 2008 года выпуска
-
№АртикулНазвание
-
143510-22H01 BRACKET, FRONT FOOTREST RIGHT HANDBRACKET, FRONT FOOTREST RIGHT HAND
-
243520-22H00 BRACKET, FRONT FOOTREST LEFT HANDBRACKET, FRONT FOOTREST LEFT HAND
-
343539-10F00 PINPIN
-
408332-1106A E RINGE RING
-
509443-11033 SPRINGSPRING
-
601550-1230B BOLTBOLT
-
743501-10F10 FOOTREST ASSY, FRONT RIGHT HAND (INCL. 9-13)FOOTREST ASSY, FRONT RIGHT HAND (INCL. 9-13)
-
843502-10F10 FOOTREST ASSY, FRONT LEFT HAND (INCL. 9-13)FOOTREST ASSY, FRONT LEFT HAND (INCL. 9-13)
-
943576-07D01 BOLT, BANK SENSORBOLT, BANK SENSOR
-
1043550-10F10 RUBBER, FRONT FOOTRESTRUBBER, FRONT FOOTREST
-
1101550-0610B BOLTBOLT
-
1209160-06158 WASHERWASHER
-
1309320-10036 CUSHIONCUSHION
-
1443600-22H00 FOOTREST ASSY, PILLION RIGHT HAND (INCL. 16-20)FOOTREST ASSY, PILLION RIGHT HAND (INCL. 16-20)
-
1543700-22H00 FOOTREST ASSY, PILLION LEFT HAND (INCL. 16-20)FOOTREST ASSY, PILLION LEFT HAND (INCL. 16-20)
-
1643610-39G00 BARBAR
-
1743612-39G00 RUBBERRUBBER
-
1809160-19024 WASHERWASHER
-
1909208-06007 PINPIN
-
2008332-1104A E RINGE RING
-
2101550-1030B BOLT, BRACKETBOLT, BRACKET
