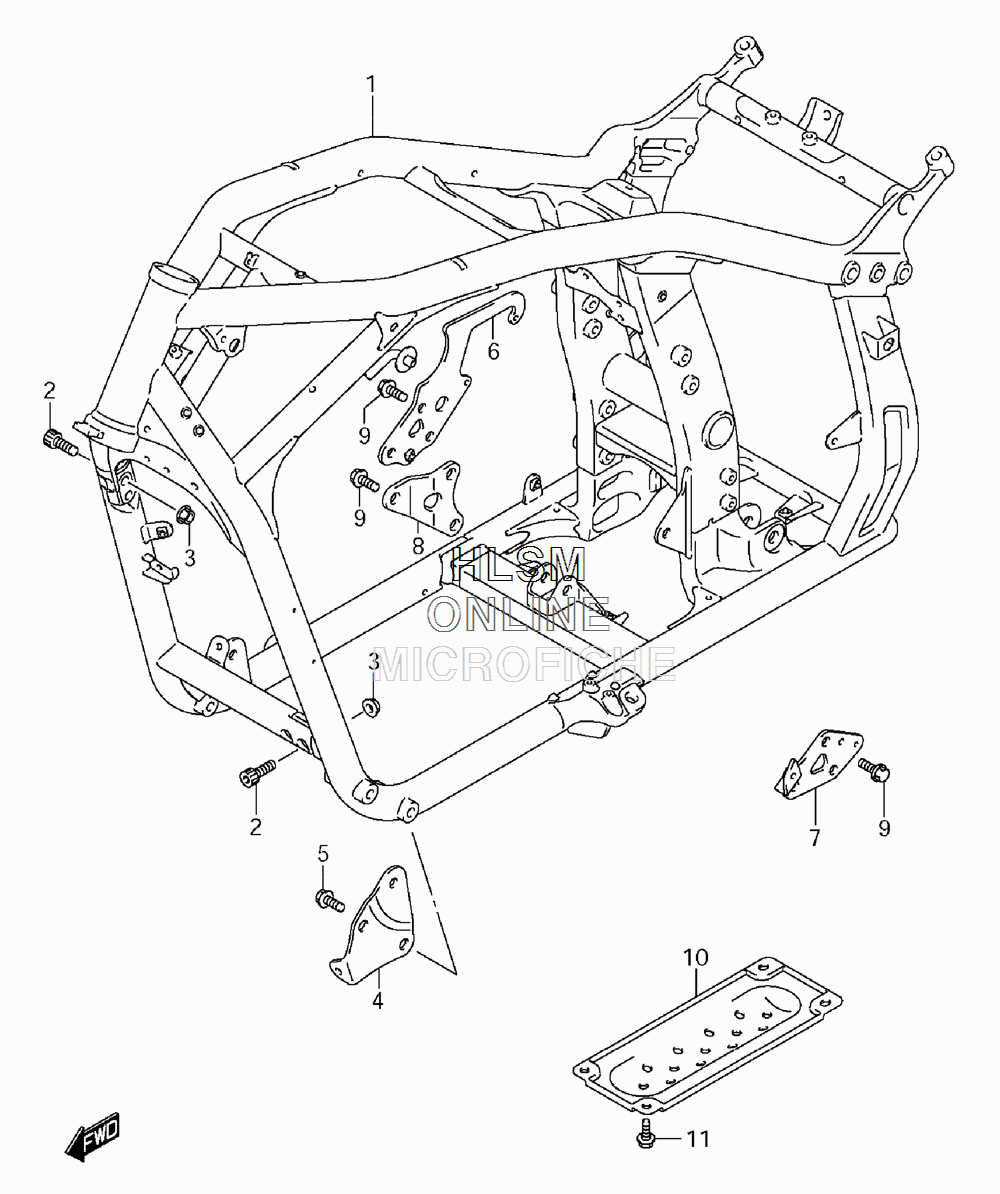

FRAME для Suzuki VLR1800T K8 - 2008 года выпуска
-
№АртикулНазвание
-
141100-22H00-019 FRAME (BLACK)FRAME (BLACK)
-
207130-1035B BOLTBOLT
-
308319-3110B NUTNUT
-
441920-22H00 PLATE, MOUNT FRONT LEFT HANDPLATE, MOUNT FRONT LEFT HAND
-
501550-1230B BOLTBOLT
-
641930-22H00 PLATE, REAR RIGHT HANDPLATE, REAR RIGHT HAND
-
741940-22H00 PLATE, REAR LEFT HANDPLATE, REAR LEFT HAND
-
841951-22H00 PLATE, REAR LOWER RIGHT HANDPLATE, REAR LOWER RIGHT HAND
-
901550-1025B BOLTBOLT
-
1042561-22H00 PROTECTOR, UNDERPROTECTOR, UNDER
-
1109113-06001 BOLTBOLT
