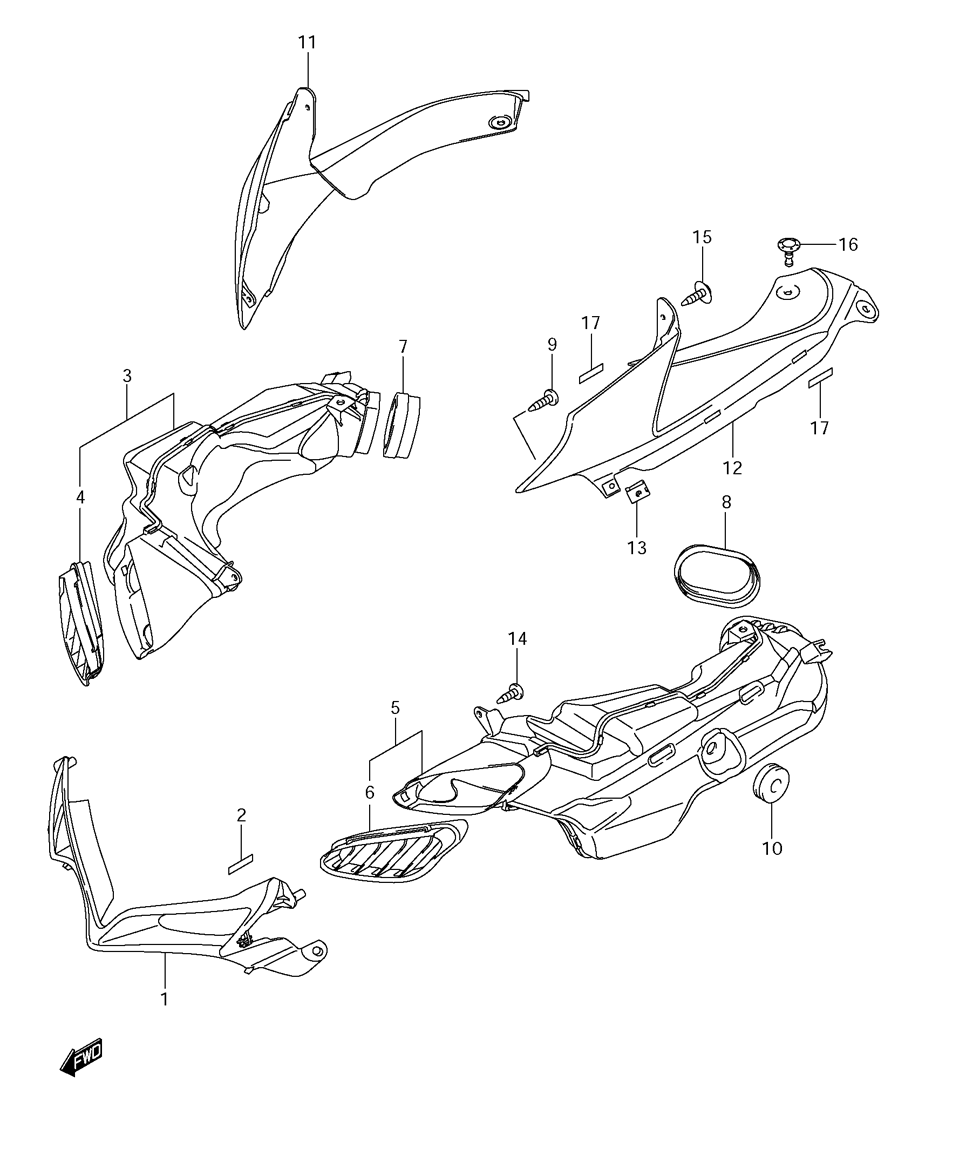

AIR INTAKE для Suzuki GSX-R750 K9 - 2009 года выпуска
-
№АртикулНазвание
-
194671-37H00-YKV COVER, INTAKE FRONT (BLACK) (YKV)COVER, INTAKE FRONT (BLACK) (YKV)
-
294443-06G00 TAPETAPE
-
394402-37H00 PIPE, INTAKE RIGHT HANDPIPE, INTAKE RIGHT HAND
-
494412-37H00 ...NET, RIGHT HAND...NET, RIGHT HAND
-
594403-37H00 PIPE, INTAKE LEFT HANDPIPE, INTAKE LEFT HAND
-
694413-37H00 ...NET, LEFT HAND...NET, LEFT HAND
-
794423-01H00 MOLDING, RIGHT HANDMOLDING, RIGHT HAND
-
894433-01H00 MOLDING, LEFT HANDMOLDING, LEFT HAND
-
903541-0516B SCREWSCREW
-
1009320-08028 CUSHIONCUSHION
-
1194672-37H00-YKV COVER, INTAKE SIDE RIGHT HAND (BLACK) (YKV FOR CRU)COVER, INTAKE SIDE RIGHT HAND (BLACK) (YKV FOR CRU)
-
1194672-37H00-YPA COVER, INTAKE SIDE RIGHT HAND (WHITE) (YPA FOR EAH)COVER, INTAKE SIDE RIGHT HAND (WHITE) (YPA FOR EAH)
-
1194672-37H00-019 COVER, INTAKE SIDE RIGHT HAND (BLACK) (019 FOR FGG)COVER, INTAKE SIDE RIGHT HAND (BLACK) (019 FOR FGG)
-
1194672-37H00-YBD COVER, INTAKE SIDE RIGHT HAND (WHITE) (YBD FOR GLR)COVER, INTAKE SIDE RIGHT HAND (WHITE) (YBD FOR GLR)
-
1294682-37H00-YKV COVER, INTAKE SIDE LEFT HAND (BLACK) (YKVCOVER, INTAKE SIDE LEFT HAND (BLACK) (YKV
-
1294682-37H00-YPA COVER, INTAKE SIDE LEFT HAND (WHITE) (YPA FOR EAH)COVER, INTAKE SIDE LEFT HAND (WHITE) (YPA FOR EAH)
-
1294682-37H00-019 COVER, INTAKE SIDE LEFT HAND (BLACK) (019 FORCOVER, INTAKE SIDE LEFT HAND (BLACK) (019 FOR
-
1294682-37H00-YBD COVER, INTAKE SIDE LEFT HAND (BLUE) (YBD FOR GLR)COVER, INTAKE SIDE LEFT HAND (BLUE) (YBD FOR GLR)
-
1309148-05052 NUTNUT
-
1403541-0512B SCREW, FRONTSCREW, FRONT
-
1509132-05050 SCREW, CENTERSCREW, CENTER
-
1694479-35F00 CLIP, REARCLIP, REAR
-
1794443-06G00 TAPETAPE
