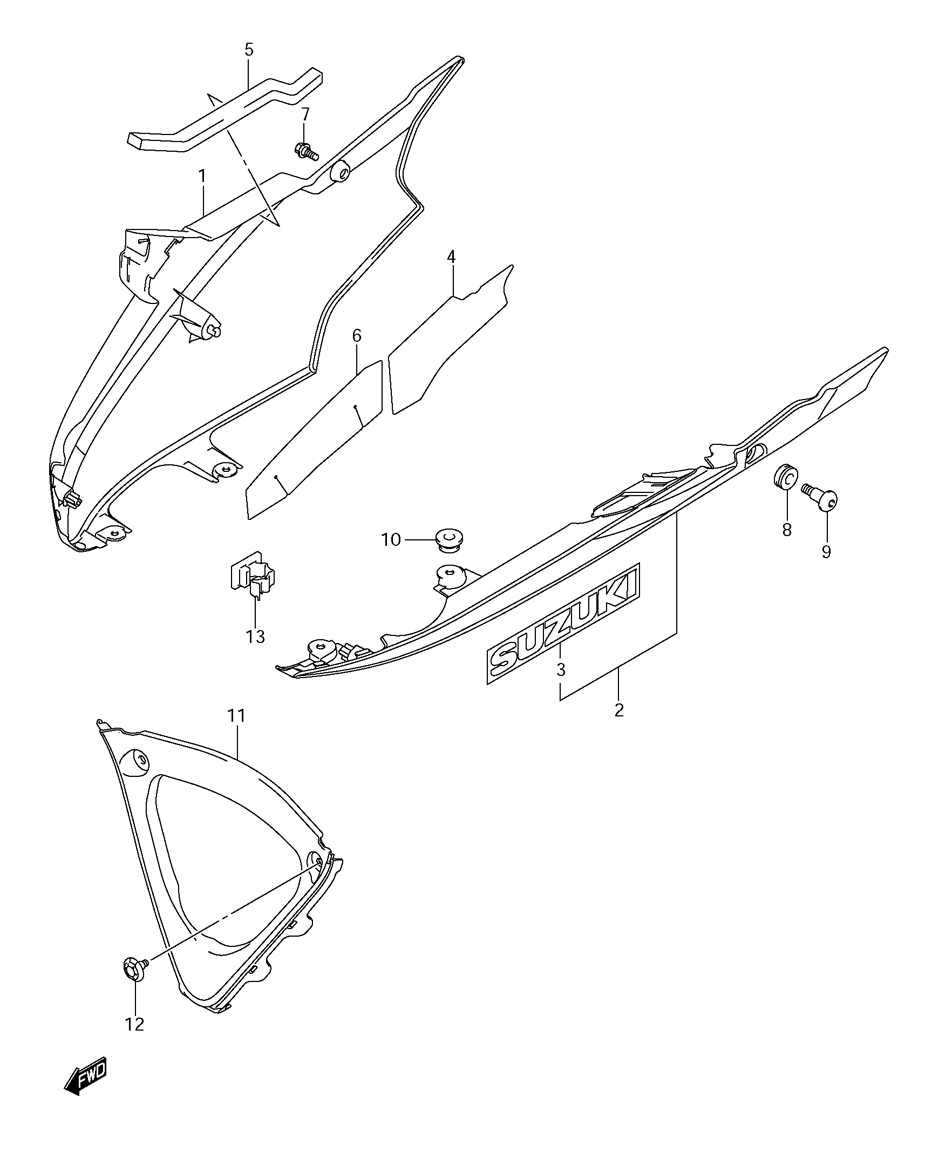

COWLING - UNDER BODY для Suzuki GSX-R750 K9 - 2009 года выпуска
-
№АртикулНазвание
-
194470-37H00-4TX COWLING, UNDER RIGHT HAND (BLACK) (4TX FOR CRU/FGG)COWLING, UNDER RIGHT HAND (BLACK) (4TX FOR CRU/FGG)
-
194470-37H00-YMD COWLING, UNDER RIGHT HAND (SILVER) (YMD FOR EAH)COWLING, UNDER RIGHT HAND (SILVER) (YMD FOR EAH)
-
194470-37H00-YSF COWLING, UNDER RIGHT HAND (BLUE) (YSF FOR GLR)COWLING, UNDER RIGHT HAND (BLUE) (YSF FOR GLR)
-
294480-37H00-4TX COWLING, UNDER LEFT HAND (BLACK) (4TX FOR CRU/FGG)COWLING, UNDER LEFT HAND (BLACK) (4TX FOR CRU/FGG)
-
294480-37H00-YMD COWLING, UNDER LEFT HAND (SILVER) (YMD FOR EAH)COWLING, UNDER LEFT HAND (SILVER) (YMD FOR EAH)
-
294480-37H00-YSF COWLING, UNDER LEFT HAND (BLUE) (YDF FORCOWLING, UNDER LEFT HAND (BLUE) (YDF FOR
-
368181-33C20-YU8 ...EMBLEM (GRAY) (YU8 FOR 4TX)...EMBLEM (GRAY) (YU8 FOR 4TX)
-
368181-33C20-17U ...EMBLEM (GRAY) (17U FOR YMD)...EMBLEM (GRAY) (17U FOR YMD)
-
368181-33C20-YBD ...EMBLEM (WHITE) (YBD FOR YSF)...EMBLEM (WHITE) (YBD FOR YSF)
-
494472-37H00 SHIELD, HEAT REAR UPPER RIGHT HANDSHIELD, HEAT REAR UPPER RIGHT HAND
-
594477-37H00 CUSHIONCUSHION
-
694472-37H10 SHIELD, HEAT RIGHT HANDSHIELD, HEAT RIGHT HAND
-
709139-05064 SCREW, RIGHT HANDSCREW, RIGHT HAND
-
809320-09016 CUSHION, LEFT HANDCUSHION, LEFT HAND
-
909139-06126 SCREW, LEFT HANDSCREW, LEFT HAND
-
1009321-10018 CUSHIONCUSHION
-
1194498-37H00 COWLING, UNDER CENTERCOWLING, UNDER CENTER
-
1294479-35F00 CLIPCLIP
-
1309403-14311 CLAMP, DRAIN HOSECLAMP, DRAIN HOSE
