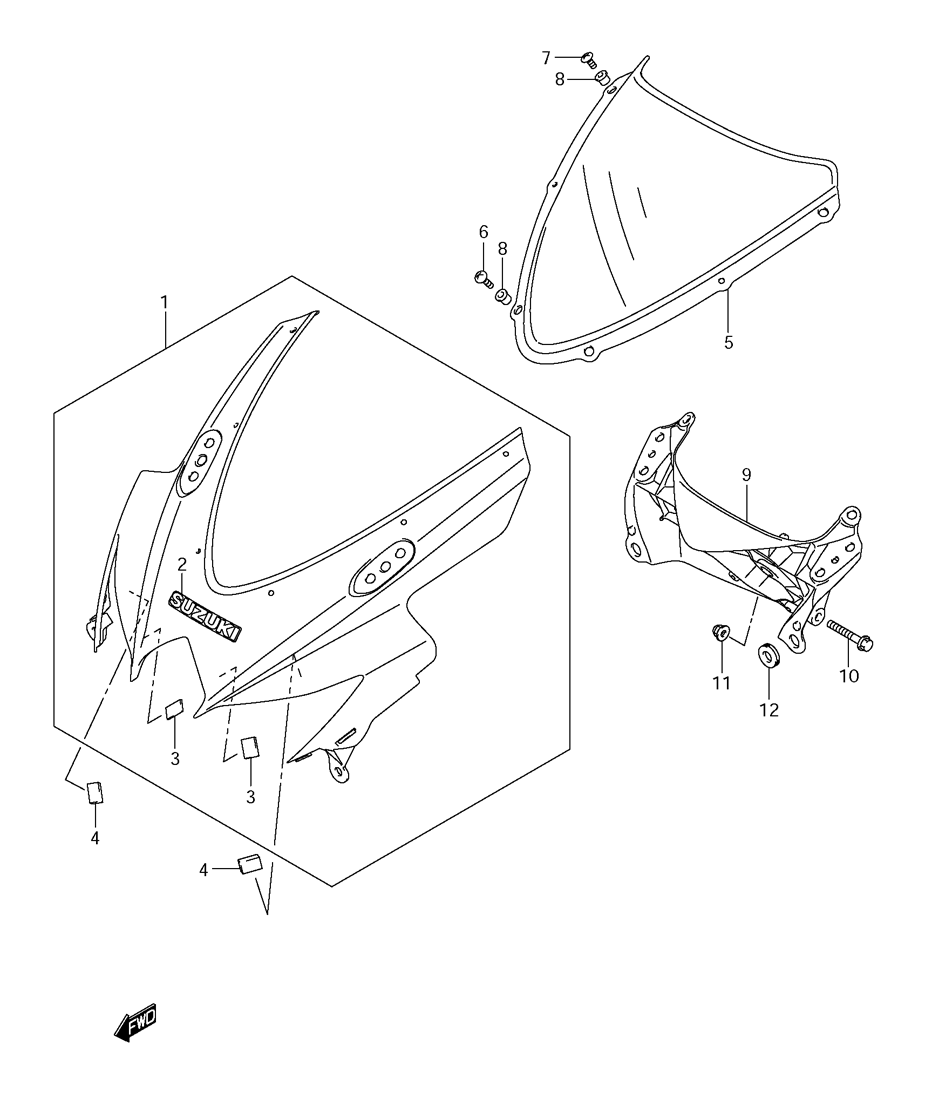

COWLING BODY для Suzuki GSX-R750 K9 - 2009 года выпуска
-
№АртикулНазвание
-
194401-37H10-019 BODY, COWLING (BLACK) (019 FOR CRU)BODY, COWLING (BLACK) (019 FOR CRU)
-
194401-37H10-YPA BODY, COWLING (WHITE) (YPA FOR EAH)BODY, COWLING (WHITE) (YPA FOR EAH)
-
194401-37H10-YMG BODY, COWLING (GOLD) (YMG FOR FGG)BODY, COWLING (GOLD) (YMG FOR FGG)
-
194401-37H10-YSF BODY, COWLING (BLUE) (YSF FOR GLR)BODY, COWLING (BLUE) (YSF FOR GLR)
-
268641-19F00-YU8 ...EMBLEM (GRAY) (YU8 FOR 019)...EMBLEM (GRAY) (YU8 FOR 019)
-
268641-19F00-17U ...EMBLEM (GRAY) (17U FOR YPA)...EMBLEM (GRAY) (17U FOR YPA)
-
268641-19F00-019 ...EMBLEM (BLACK) (019 FOR YMG)...EMBLEM (BLACK) (019 FOR YMG)
-
268641-19F00-YBD ...EMBLEM (WHITE) (YBD FOR YSF)...EMBLEM (WHITE) (YBD FOR YSF)
-
344572-37H00 ...FASTENER...FASTENER
-
492146-37H00 CUSHIONCUSHION
-
594611-37H00 WINDSCREENWINDSCREEN
-
609125-05133 SCREW, FRONTSCREW, FRONT
-
709125-05134 SCREW, UPPERSCREW, UPPER
-
809159-05019 NUTNUT
-
994511-37H00 BRACE, COWLINGBRACE, COWLING
-
1001550-0845A BOLTBOLT
-
1108313-2008A NUTNUT
-
1209320-08028 CUSHIONCUSHION
