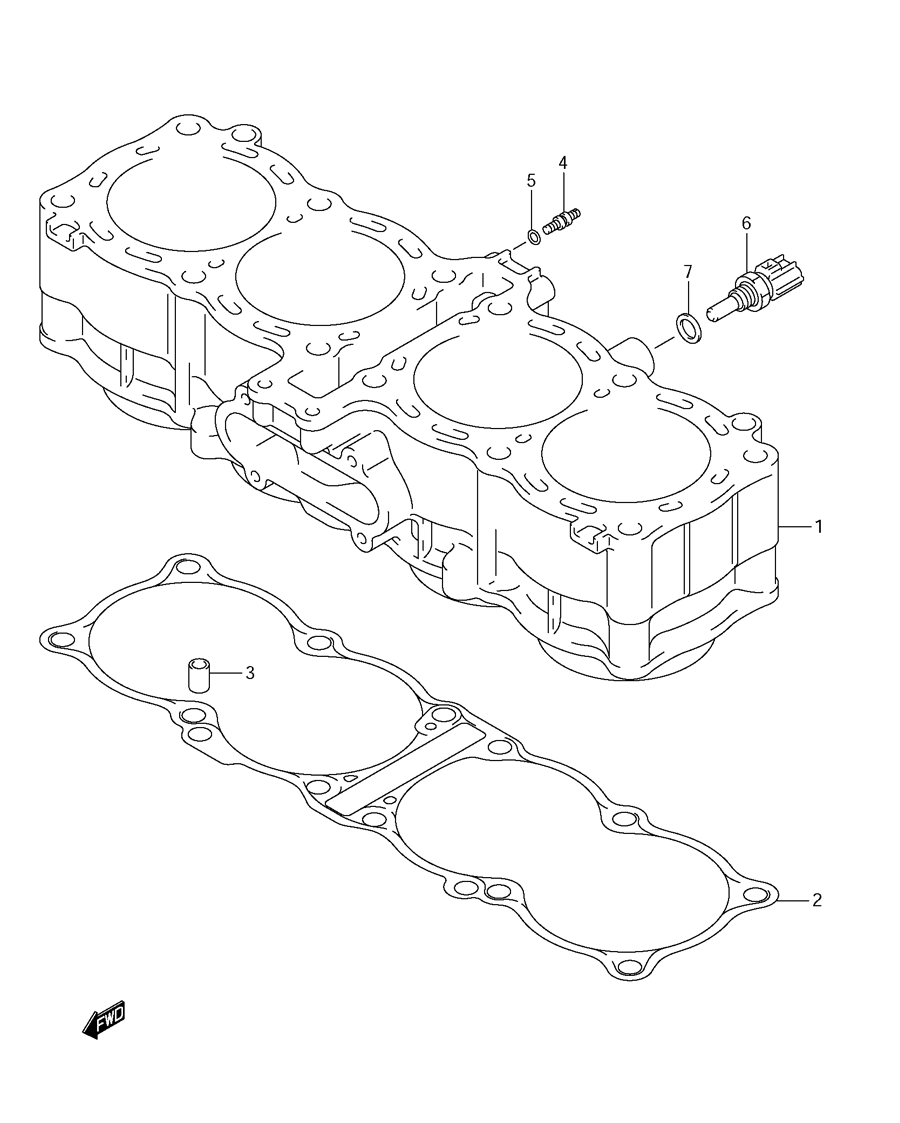

CYLINDER для Suzuki GSX650F K9 - 2009 года выпуска
-
№АртикулНазвание
-
111211-17H00-0F0 CYLINDERCYLINDER
-
211241-18H00 GASKET, CYLINDERGASKET, CYLINDER
-
304211-11169 PINPIN
-
409493-80005 JET, OIL GALLERYJET, OIL GALLERY
-
509280-04004 O RINGO RING
-
613650-49X00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
709168-12017 GASKETGASKET
