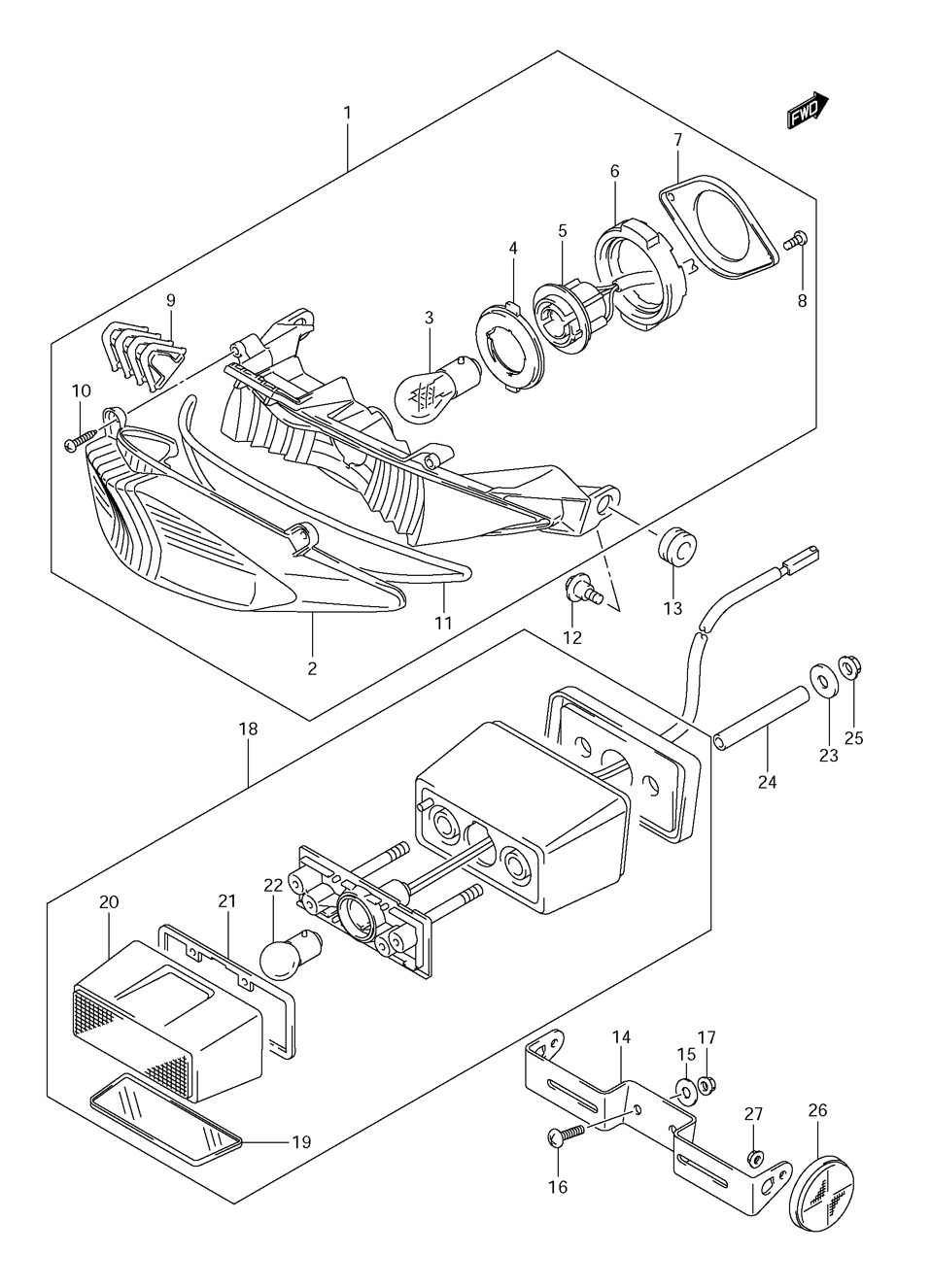

REAR COMBINATION LAMP для Suzuki GSX650F K9 - 2009 года выпуска
-
№АртикулНазвание
-
135710-38G51 LAMP ASSEMBLY, REAR COMBLAMP ASSEMBLY, REAR COMB
-
235712-38G50 ...LENS...LENS
-
309471-12083 ...BULB (12V 21/5W)...BULB (12V 21/5W)
-
435716-48B21 ...PLATE, NO.1...PLATE, NO.1
-
535718-38G00 ...SOCKET & CORD...SOCKET & CORD
-
635765-48B21 ...CUSHION...CUSHION
-
735736-48B21 ...PLATE, NO.2...PLATE, NO.2
-
803211-0412A ...SCREW...SCREW
-
935716-38G00 ...CUSHION...CUSHION
-
1003211-0416A ...SCREW...SCREW
-
1135713-38G00 ...GASKET...GASKET
-
1209139-05080 SCREW, REAR COMBSCREW, REAR COMB
-
1309320-10054 CUSHION, RAR COMBCUSHION, RAR COMB
-
1435927-38G50 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1509160-06077 WASHER, BRACKETWASHER, BRACKET
-
1602142-0616B SCREW, BRACKETSCREW, BRACKET
-
1708316-1006B NUT, LICENSE PLATE BRKNUT, LICENSE PLATE BRK
-
1835910-41G50 LAMP ASSEMBLY, LICENSELAMP ASSEMBLY, LICENSE
-
1935912-41G00 ...LENS, LICENSE...LENS, LICENSE
-
2035917-41G00 ...COVER...COVER
-
2135913-41G00 ...GASKET...GASKET
-
2209471-12140 ...BULB (12V 5W)...BULB (12V 5W)
-
2309160-06077 WASHER, LICENSEWASHER, LICENSE
-
2409180-06344 SPACER, LICENSESPACER, LICENSE
-
2508316-1006B NUT, LICENSENUT, LICENSE
-
2635970-14A20 REFLEX REFLECTOR ASSEMBLY, RR SIDEREFLEX REFLECTOR ASSEMBLY, RR SIDE
-
2708316-1005B NUTNUT
