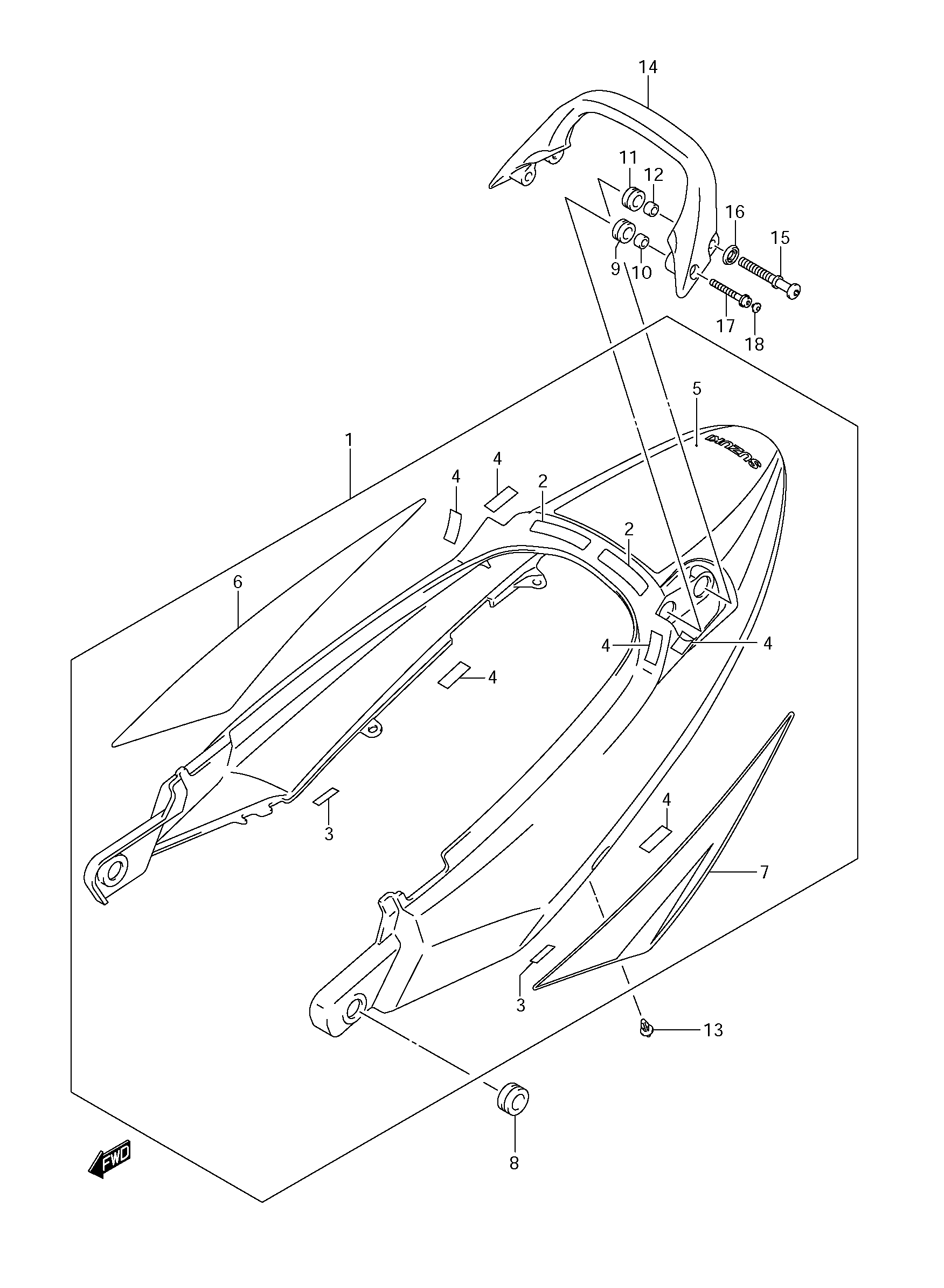

SEAT TAIL COVER (CWH-EGR) для Suzuki GSX650F K9 - 2009 года выпуска
-
№АртикулНазвание
-
145500-17H00-YBD COVER ASSEMBLY, SEAT TAIL (WHITE) (YBD - CWH)COVER ASSEMBLY, SEAT TAIL (WHITE) (YBD - CWH)
-
145500-17H00-YMD COVER ASSEMBLY, SEAT TAIL (SILVER) (YMD FOR EGR)COVER ASSEMBLY, SEAT TAIL (SILVER) (YMD FOR EGR)
-
245516-42F00 ...TAPE, SEAT TAIL COVER RR NO.1...TAPE, SEAT TAIL COVER RR NO.1
-
345517-16G00 ...TAPE, SEAT TAIL COVER LOWER...TAPE, SEAT TAIL COVER LOWER
-
447161-10D00 ...TAPE, SEAT TAIL COVER RR NO.2...TAPE, SEAT TAIL COVER RR NO.2
-
568165-17HA0-CWH ...TAPE, SEAT TAIL COVER, CENTER (CWH FOR YBD)...TAPE, SEAT TAIL COVER, CENTER (CWH FOR YBD)
-
568165-17HA0-EPV ...TAPE, SEAT TAIL COVER, CENTER (EPV FOR YMD)...TAPE, SEAT TAIL COVER, CENTER (EPV FOR YMD)
-
668165-17H00-CWH ...TAPE, SEAT TAIL COVER, RIGHT (CWH FOR YBD)...TAPE, SEAT TAIL COVER, RIGHT (CWH FOR YBD)
-
668165-17H00-EGR ...TAPE, SEAT TAIL COVER, RIGHT (EGR FOR YMD)...TAPE, SEAT TAIL COVER, RIGHT (EGR FOR YMD)
-
768167-17H00-CWH ...TAPE, SEAT TAIL COVER, LEFT (CWH FOR YBD)...TAPE, SEAT TAIL COVER, LEFT (CWH FOR YBD)
-
768167-17H00-EGR ...TAPE, SEAT TAIL COVER, LEFT (EGR FOR YMD)...TAPE, SEAT TAIL COVER, LEFT (EGR FOR YMD)
-
809320-08047 CUSHION, SEAT TAIL COVER FRONTCUSHION, SEAT TAIL COVER FRONT
-
909320-12068 CUSHION, TAIL COVER RR FRONTCUSHION, TAIL COVER RR FRONT
-
1009180-06300 SPACER, TAIL COVER RR FRONTSPACER, TAIL COVER RR FRONT
-
1109320-14023 CUSHION, TAIL COVER RR REARCUSHION, TAIL COVER RR REAR
-
1209180-08199 SPACER, TAIL COVER RR REARSPACER, TAIL COVER RR REAR
-
1309409-06314-5PK CLIP (5PK)CLIP (5PK)
-
1446211-32F00-YAY HANDLE, PILLION RIDER (BLACK) (YAY FOR EGR)HANDLE, PILLION RIDER (BLACK) (YAY FOR EGR)
-
1446211-32F00-YKY HANDLE, PILLION RIDER (BLUE) (YKY FOR CWH)HANDLE, PILLION RIDER (BLUE) (YKY FOR CWH)
-
1546316-31F00 HOOK, PILLION RIDER HANDLEHOOK, PILLION RIDER HANDLE
-
1646317-31F00 WASHER, HOOKWASHER, HOOK
-
1707120-0645B BOLTBOLT
-
1809250-05009 CAPCAP
