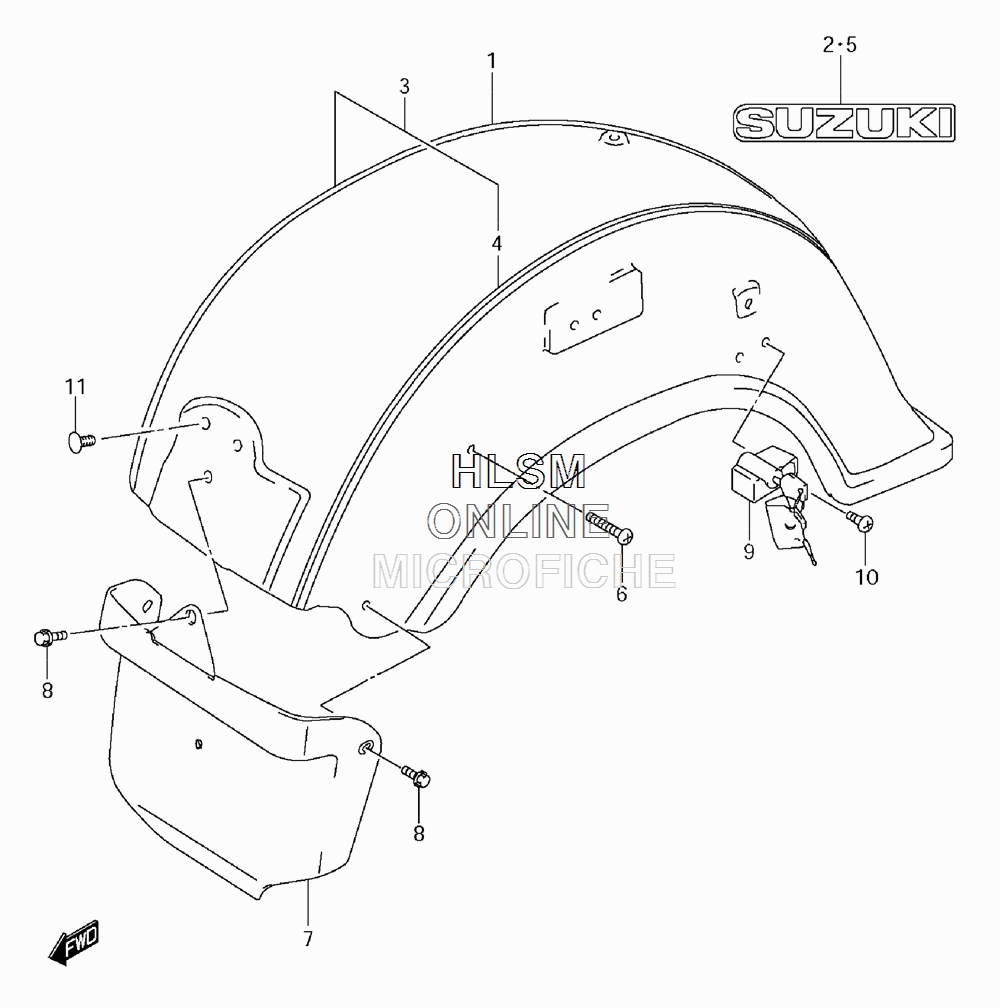

FENDER - REAR для Suzuki VL1500T K9 - 2009 года выпуска
-
№АртикулНазвание
-
363100-10FG0-EAJ FENDER, REAR (EAJ ORANGE/BLACK) (INCL. 4-5)FENDER, REAR (EAJ ORANGE/BLACK) (INCL. 4-5)
-
363100-10FG0-FKE FENDER, REAR (FKE) (INCL. 4-5)FENDER, REAR (FKE) (INCL. 4-5)
-
468170-10FC0-GGN TAPE SET (FOR EAJ)TAPE SET (FOR EAJ)
-
468170-10FC0-GGP TAPE SET (FOR FKE)TAPE SET (FOR FKE)
-
568271-34A00-YJH EMBLEM (GRAY)EMBLEM (GRAY)
-
609106-08156 BOLTBOLT
-
763411-10F01 MUD GUARD, FRONTMUD GUARD, FRONT
-
809113-06001 BOLTBOLT
-
995700-10841 LOCK SET, HELMETLOCK SET, HELMET
-
1009139-06089 SCREWSCREW
-
1109250-05011-5PK PLUGPLUG
