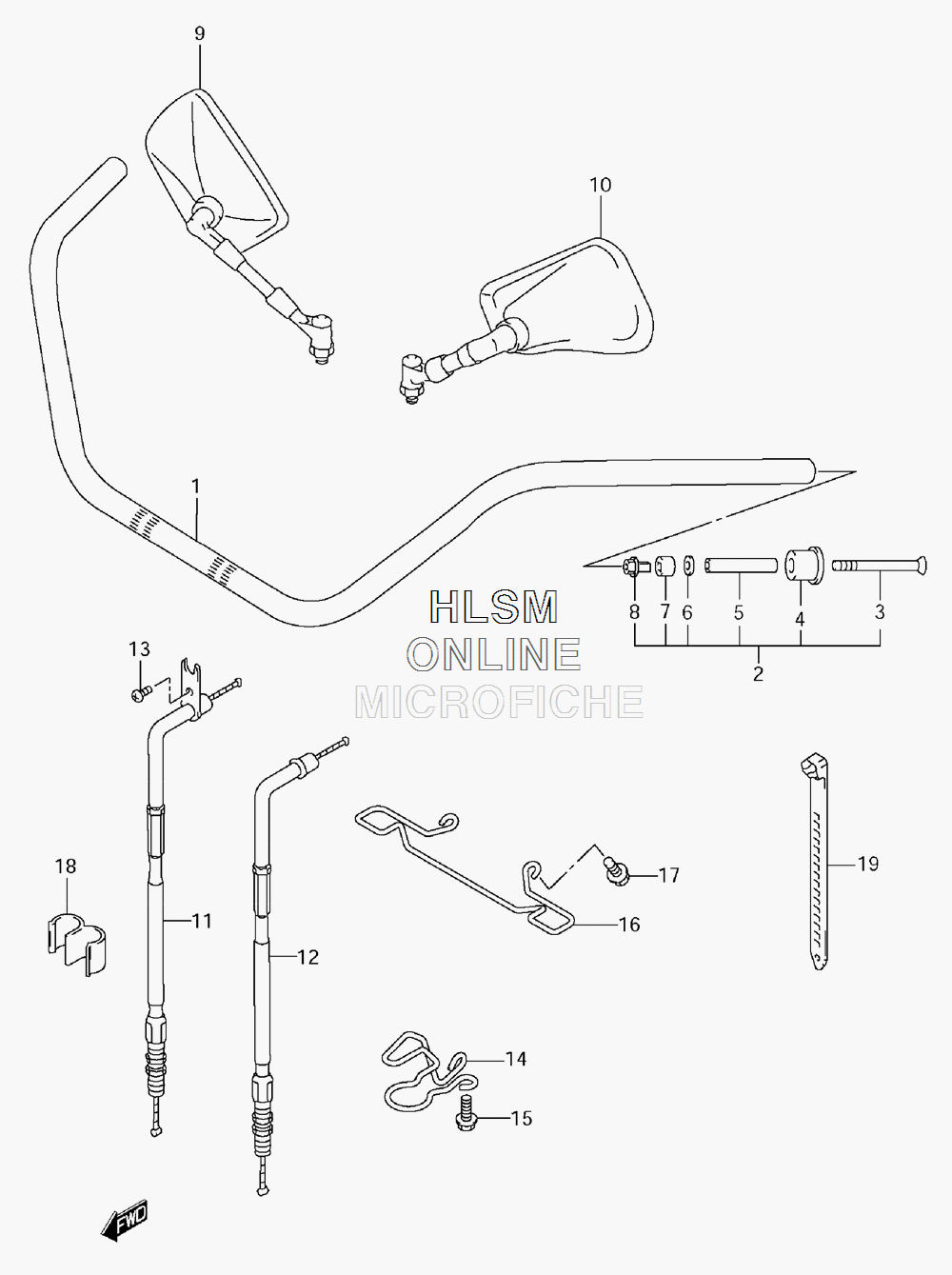

HANDLEBAR для Suzuki VL1500T K9 - 2009 года выпуска
-
№АртикулНазвание
-
156111-10FC0 HANDLEBARHANDLEBAR
-
256200-10891 BALANCER SET, HANDLEBAR (INCL. 3-8)BALANCER SET, HANDLEBAR (INCL. 3-8)
-
309127-06017 SCREWSCREW
-
456272-26D01 EXPANDER, OUTEREXPANDER, OUTER
-
556276-17D00 SPACERSPACER
-
609160-06131 WASHERWASHER
-
756272-10G10 EXPANDER, INNEREXPANDER, INNER
-
856273-10G10 NUTNUT
-
956500-41F00 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
1056600-41F00 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
1158300-10F50 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1258300-10F60 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1309139-05033 SCREW, CASESCREW, CASE
-
1458626-10FA0 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
1507120-0616A BOLTBOLT
-
1658631-10FA0 GUIDE, CABLEGUIDE, CABLE
-
1701550-0616B BOLTBOLT
-
1809408-00244 CLIPCLIP
-
1909407-11401 CLAMPCLAMP
