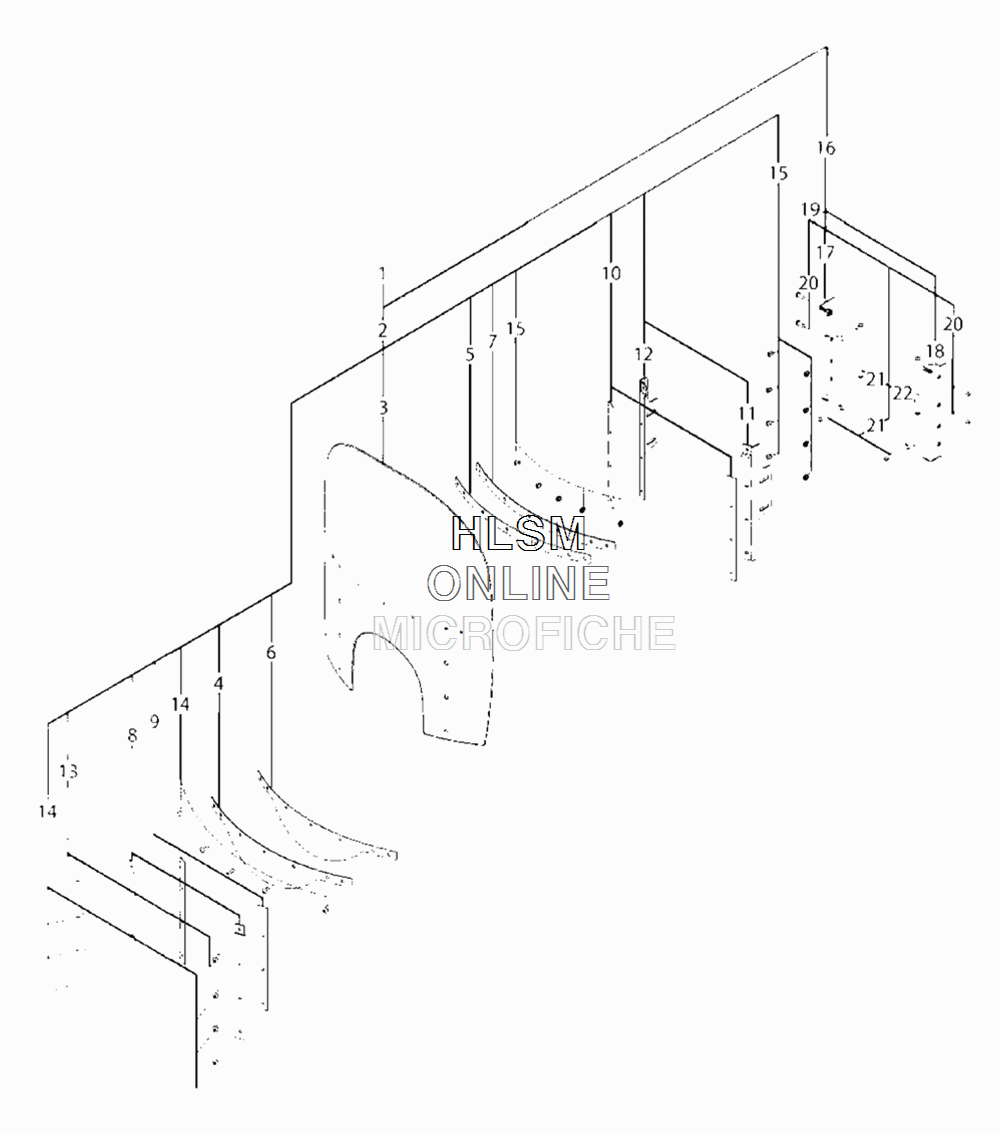

WINDSHIELD для Suzuki VL1500T K9 - 2009 года выпуска
-
№АртикулНазвание
-
1990A0-70005-TRG WINDSHIELD KIT, C90TWINDSHIELD KIT, C90T
-
3990A0-70005-015 WINDSHIELD,PLASTIC ONLYWINDSHIELD,PLASTIC ONLY
-
4990A0-70005-016 OUTSIDE PLATE,HORIZONTALOUTSIDE PLATE,HORIZONTAL
-
5990A0-70005-017 GASKET,HORIZONTAL,INSIDE STRIPEGASKET,HORIZONTAL,INSIDE STRIPE
-
6990A0-70005-018 GASKET,HORIZONTAL,OUTSIDE STRIPEGASKET,HORIZONTAL,OUTSIDE STRIPE
-
7990A0-70005-019 INSIDE STRIP,HORIZONTALINSIDE STRIP,HORIZONTAL
-
8990A0-70005-022 OUTSIDE STRIP,VERTICALOUTSIDE STRIP,VERTICAL
-
9990A0-70008-022 GASKET,VERTICAL,STRIPGASKET,VERTICAL,STRIP
-
10990A0-70005-022 INSIDE STIP,VERTICALINSIDE STIP,VERTICAL
-
11990A0-70005-021 BRACKET,FRAME,VERTICAL, LEFT HANDBRACKET,FRAME,VERTICAL, LEFT HAND
-
12990A0-70005-021 BRACKET,FRAME,VERICAL, RIGHT HANDBRACKET,FRAME,VERICAL, RIGHT HAND
-
13990A0-70005-01H BOLT,M6-1.0X20,SS,W/NYLOCK PTCHBOLT,M6-1.0X20,SS,W/NYLOCK PTCH
-
14990A0-70005-013 BOLT,M6-1.0X16,SS,W/NYLOCK PTCHBOLT,M6-1.0X16,SS,W/NYLOCK PTCH
-
15990A0-70005-014 NUT,HEX CAP,M6-1.0, SSNUT,HEX CAP,M6-1.0, SS
-
16990A0-70005-003 MOUNTING KITMOUNTING KIT
-
17990A0-70005-001 STAY,WINDSHIELD, RIGHT HANDSTAY,WINDSHIELD, RIGHT HAND
-
18990A0-70005-001 STAY,WINDSHIELD, LEFT HANDSTAY,WINDSHIELD, LEFT HAND
-
20990A0-70005-028 CAP SCREW,M8-1.25X16,SSCAP SCREW,M8-1.25X16,SS
-
21990A0-70005-029 BOLT,M8-1.25X40,SSBOLT,M8-1.25X40,SS
-
22990A0-70005-030 BOLT,M8-1.25X50,SSBOLT,M8-1.25X50,SS
-
23990A0-70005-001 EMBLEM,BOULEVARDEMBLEM,BOULEVARD
-
24990A0-70005-021 LOWER ASSEMBLY, LEFT HANDLOWER ASSEMBLY, LEFT HAND
-
25990A0-70005-021 LOWER ASSEMBLY, RIGHT HANDLOWER ASSEMBLY, RIGHT HAND
-
26990A0-70005-021 TURN SIGNAL BARTURN SIGNAL BAR
