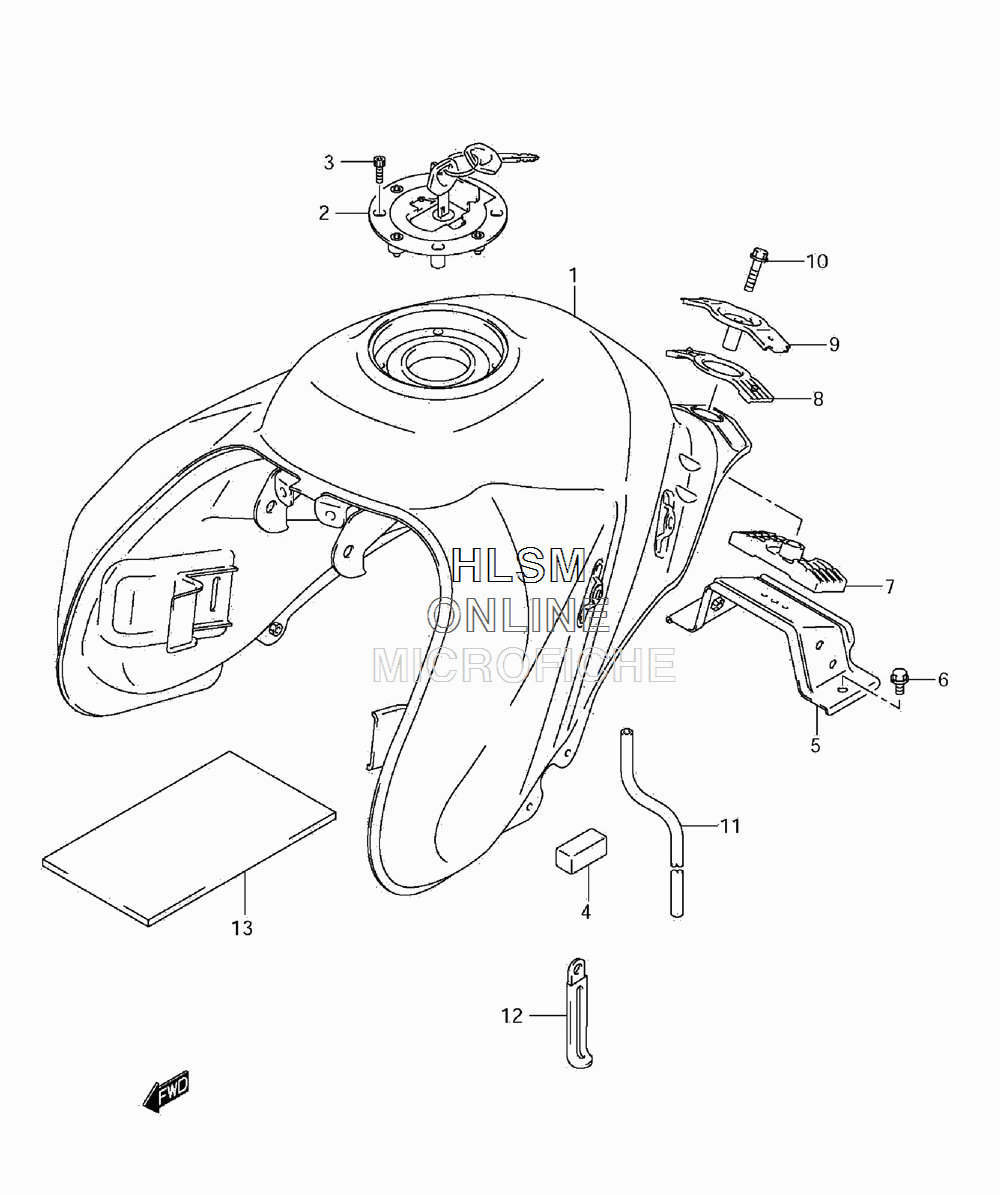

FUEL TANK (CALIF ONLY) для Suzuki DL650 L1 - 2011 года выпуска
-
№АртикулНазвание
-
144100-06G50-YAY TANK, FUEL (BLACK) (YAY)TANK, FUEL (BLACK) (YAY)
-
144100-06G50-YPA TANK, FUEL (WHITE) (YPA)TANK, FUEL (WHITE) (YPA)
-
244200-33830 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
309106-05017 BOLT (5X20)BOLT (5X20)
-
444541-06G00 CUSHION, SIDECUSHION, SIDE
-
544550-06G10 BRACKET, REAR LOWERBRACKET, REAR LOWER
-
601550-0816A BOLTBOLT
-
744545-06G00 CUSHION, LOWERCUSHION, LOWER
-
844542-06G00 CUSHION, UPPERCUSHION, UPPER
-
944530-06G00 BRACKET, UPPERBRACKET, UPPER
-
1001550-0835B BOLTBOLT
-
1144423-06G00 HOSE, WATER DRAINHOSE, WATER DRAIN
-
1209404-06433 CLAMPCLAMP
-
1344194-27G00 SHIELD, TANK CENTERSHIELD, TANK CENTER
