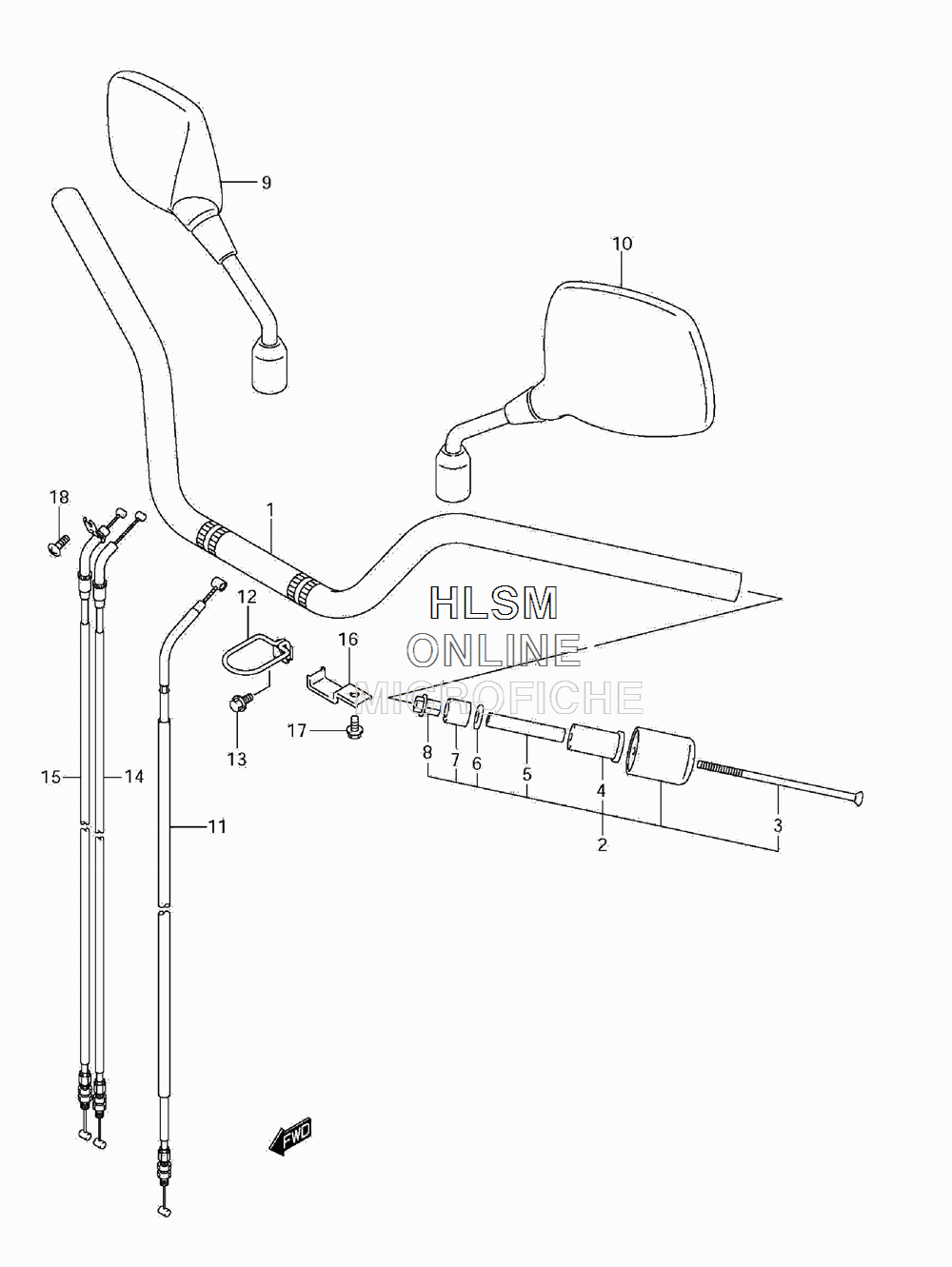

HANDLEBAR (CANADA) для Suzuki DL650 L1 - 2011 года выпуска
-
№АртикулНазвание
-
156111-27G20 HANDLEBARHANDLEBAR
-
256200-16841 BALANCER SET, HANDLEBAR (INC 3-8)BALANCER SET, HANDLEBAR (INC 3-8)
-
309127-06018 SCREW (6X110)SCREW (6X110)
-
456272-06G00 EXPANDER, OUTEREXPANDER, OUTER
-
556276-17D00 SPACERSPACER
-
609160-06131 WASHER (6.5X16X4)WASHER (6.5X16X4)
-
756272-10G00 EXPANDER, INNEREXPANDER, INNER
-
856273-10G10 NUTNUT
-
956500-04F22 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
1056600-04F22 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
1158200-27G00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1258620-27G20 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
1301547-0612A BOLTBOLT
-
1458300-27G30 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1558300-27G40 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1658621-27G10 GUIDE, CABLEGUIDE, CABLE
-
1701547-0612B BOLTBOLT
-
1809125-05042 SCREW (5X10)SCREW (5X10)
