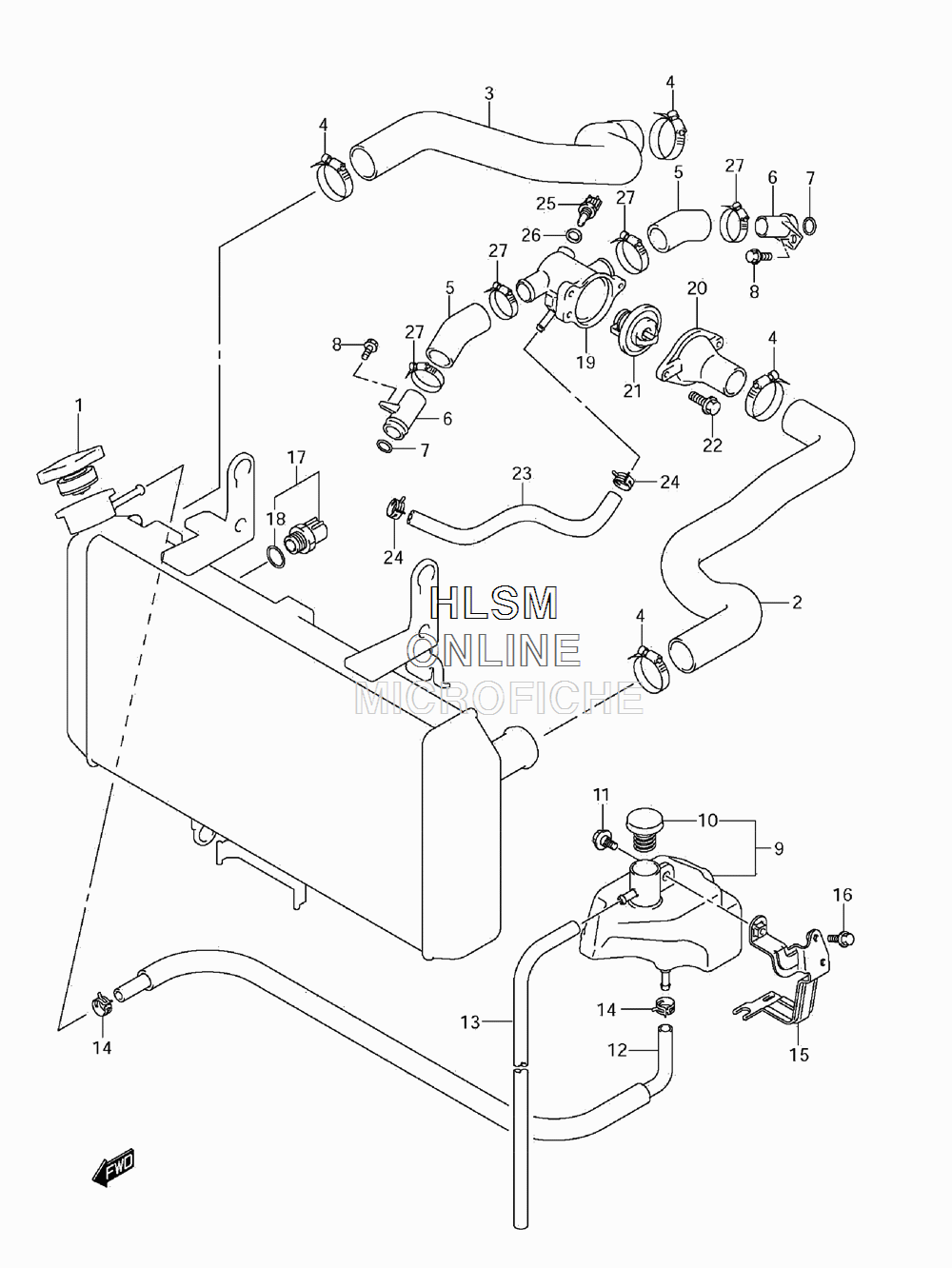

RADIATOR HOSE W/ RESERVOIR для Suzuki DL650 L1 - 2011 года выпуска
-
№АртикулНазвание
-
117730-12C20 CAP, RADIATORCAP, RADIATOR
-
217851-27G00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
317852-27G10 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
409402-38512 CLAMPCLAMP
-
517853-19F00 HOSE, CONNECTOR INLETHOSE, CONNECTOR INLET
-
617890-06G20 UNION, CONNECTOR HOSEUNION, CONNECTOR HOSE
-
709280-18008 O RING (D:3.2,ID:17.8)O RING (D:3.2,ID:17.8)
-
807130-0612A BOLTBOLT
-
917910-27G10 TANK ASSY, RESERVOIR (INC 10)TANK ASSY, RESERVOIR (INC 10)
-
1017931-02FA0 CAP, RESERVOIR TANKCAP, RESERVOIR TANK
-
1109111-06085 BOLT (6X12)BOLT (6X12)
-
1217900-27810 HOSE, RESERVOIR TANK INLETHOSE, RESERVOIR TANK INLET
-
1317982-38810 HOSE, RESERVOIR TANK OVERFLOW, NO.1HOSE, RESERVOIR TANK OVERFLOW, NO.1
-
1409401-08411 CLIPCLIP
-
1517920-27G10 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1601550-0610A BOLTBOLT
-
1717680-50F10 SWITCH, RADIATOR FAN (INC 18)SWITCH, RADIATOR FAN (INC 18)
-
1817689-50F00 O RINGO RING
-
1917662-02F11 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
2017663-17G00 CAP, THERMOSTAT CONNECTORCAP, THERMOSTAT CONNECTOR
-
2117670-06G50 THERMOSTATTHERMOSTAT
-
2201550-0616A BOLTBOLT
-
2317856-19F00 HOSE, CONNECTOR TO WATER PUMPHOSE, CONNECTOR TO WATER PUMP
-
2409401-12409 CLAMPCLAMP
-
2513650-57F00 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
2609168-12017 GASKETGASKET
-
2709402-28513 CLAMPCLAMP
