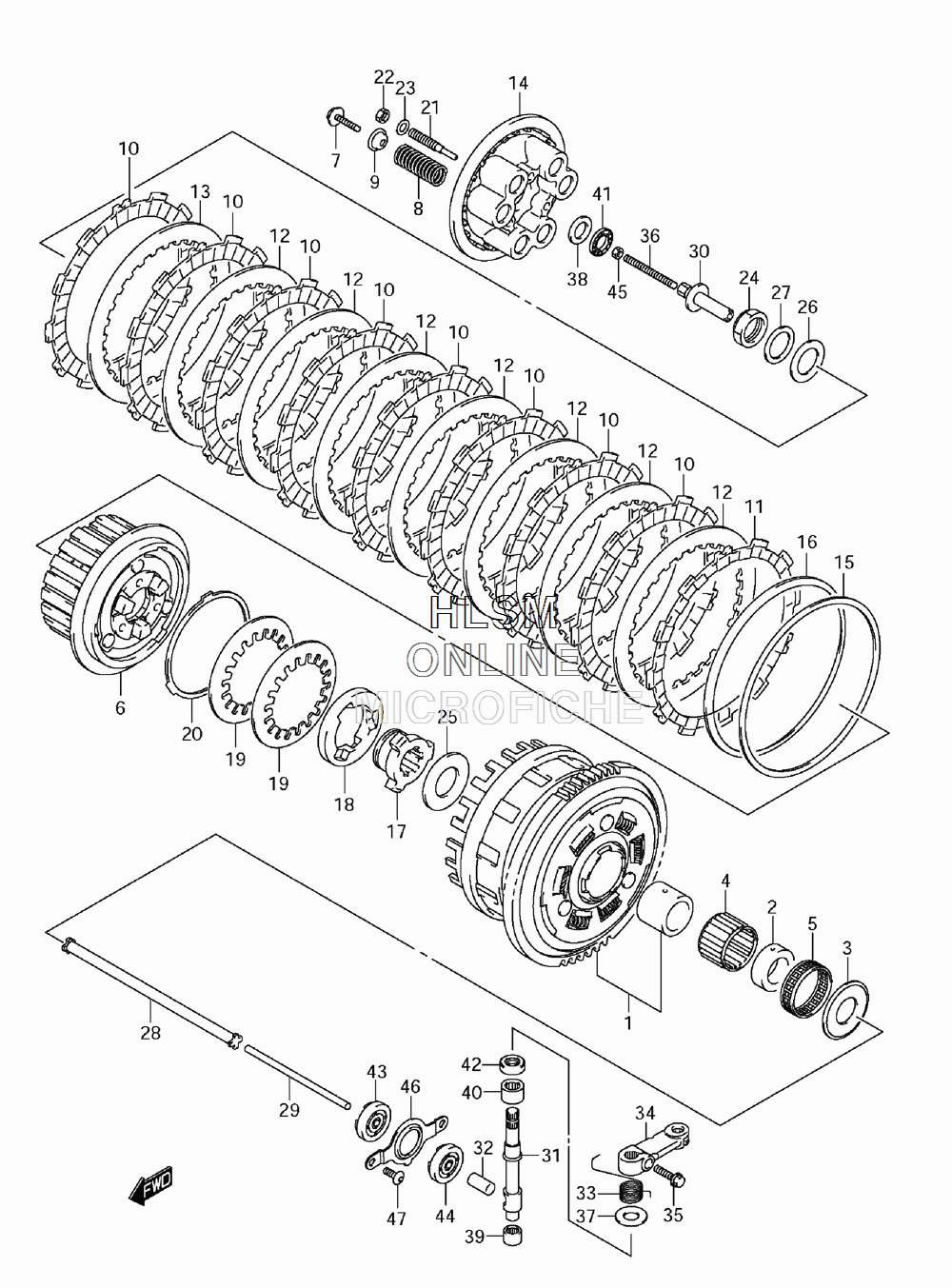

CLUTCH для Suzuki GSX-R 600 L1 - 2011 года выпуска

№

Артикул

Название
1

21200-01830 GEAR ASSY, PRIMARY DRIVEN NT:77

GEAR ASSY, PRIMARY DRIVEN NT:77

72 840 ₽
2

21253-01H10 SPACER, OIL PUMP DRIVE

SPACER, OIL PUMP DRIVE

5 930 ₽
3

09160-25073 WASHER (25X54X2.4)

WASHER (25X54X2.4)

2 080 ₽
4

09263-35015 BEARING (35X40X26.8)

BEARING (35X40X26.8)

4 000 ₽
5

09263-35045 BEARING (35X40X12)

BEARING (35X40X12)

3 380 ₽
6

21410-41G30 HUB, CLUTCH SLEEVE

HUB, CLUTCH SLEEVE

35 130 ₽
7

21412-06G00 BOLT, CLUTCH SPRING

BOLT, CLUTCH SPRING

650 ₽
8

21413-01H10 SPRING, CLUTCH

SPRING, CLUTCH

1 360 ₽
9

21414-29F00 WASHER

WASHER

1 090 ₽
10

21441-36F50 PLATE, CLUTCH DRIVE NO.1

PLATE, CLUTCH DRIVE NO.1

5 090 ₽
11

21442-41G00 PLATE, CLUTCH DRIVE NO.2

PLATE, CLUTCH DRIVE NO.2

5 090 ₽
12

21451-41G10 PLATE, CLUTCH DRIVEN NO.1 T:2.0

PLATE, CLUTCH DRIVEN NO.1 T:2.0

2 470 ₽
13

21451-41G30 PLATE, CLUTCH DRIVEN NO.2 T:1.6

PLATE, CLUTCH DRIVEN NO.2 T:1.6

2 470 ₽
14

21462-41G00 DISC, CLUTCH PRESSURE

DISC, CLUTCH PRESSURE

12 060 ₽
15

21471-41G00 SEAT, WAVE WASHER

SEAT, WAVE WASHER

2 580 ₽
16

21472-41G20 WASHER, CLUTCH PLATE WAVE

WASHER, CLUTCH PLATE WAVE

3 710 ₽
17

21611-41G30 CAM, CLUTCH DRIVE

CAM, CLUTCH DRIVE

20 180 ₽
18

21612-41G10 CAM, CLUTCH DRIVEN

CAM, CLUTCH DRIVEN

17 040 ₽
19

21621-41G00 WASHER, CAM REACTION WAVE

WASHER, CAM REACTION WAVE

2 590 ₽
20

21624-41G00 WASHER, CAM REACTION SEAT

WASHER, CAM REACTION SEAT

2 310 ₽
21

21622-41G00 LIFTER, CLUTCH PRESSURE DISC

LIFTER, CLUTCH PRESSURE DISC

1 840 ₽
22

21623-41G00 NUT, CL PRESS DISC

NUT, CL PRESS DISC

440 ₽
23

09181-08139 SHIM (8.8X14X1)

SHIM (8.8X14X1)

330 ₽
24

09159-24010 NUT

NUT

2 310 ₽
25

09160-25056 WASHER (25X50X2.5)

WASHER (25X50X2.5)

2 030 ₽
26

09164-24008 WASHER

WASHER

660 ₽
27

09160-25077 WASHER (25X41X2.5)

WASHER (25X41X2.5)

1 500 ₽
28

23110-38B00 ROD, CLUTCH PUSH RIGHT HAND

ROD, CLUTCH PUSH RIGHT HAND

4 190 ₽
29

23111-35F00 ROD, CLUTCH PUSH LEFT HAND

ROD, CLUTCH PUSH LEFT HAND

2 420 ₽
30

23121-41G00 PIECE, CLUTCH PUSH

PIECE, CLUTCH PUSH

7 530 ₽
31

23122-41G10 CAMSHAFT, CLUTCH RELEASE

CAMSHAFT, CLUTCH RELEASE

8 450 ₽
32

23123-41G00 CAP, CLUTCH PUSH ROD

CAP, CLUTCH PUSH ROD

1 980 ₽
33

23125-41G00 SPRING, CLUTCH RELEASE

SPRING, CLUTCH RELEASE

590 ₽
34

23271-41G20 ARM, CLUTCH RELEASE

ARM, CLUTCH RELEASE

7 930 ₽
35

09103-06223 BOLT (6X20)

BOLT (6X20)

410 ₽
36

09134-06015 SCREW (6X73)

SCREW (6X73)

1 200 ₽
37

09160-10020 WASHER (10.5X24X1)

WASHER (10.5X24X1)

310 ₽
38

09160-15045 WASHER (15.5X28X1)

WASHER (15.5X28X1)

680 ₽
39

09263-10014 BEARING (10X14X10)

BEARING (10X14X10)

2 370 ₽
40

09263-12027 BEARING (12X18X12)

BEARING (12X18X12)

1 270 ₽
41

09263-15003 BEARING (15X28X2)

BEARING (15X28X2)

1 440 ₽
42

09282-10012 OIL SEAL (10X20X6)

OIL SEAL (10X20X6)

1 390 ₽
43

09283-06010 OIL SEAL (6X34X10.5)

OIL SEAL (6X34X10.5)

2 940 ₽
44

09285-10004 OIL SEAL (10X17X5)

OIL SEAL (10X17X5)

590 ₽
45

08310-0006A NUT

NUT

320 ₽
46

24741-01H00 RETAINER, CL PUSH ROD

RETAINER, CL PUSH ROD

1 270 ₽
47

09139-06153 SCREW (6X13)

SCREW (6X13)

440 ₽
