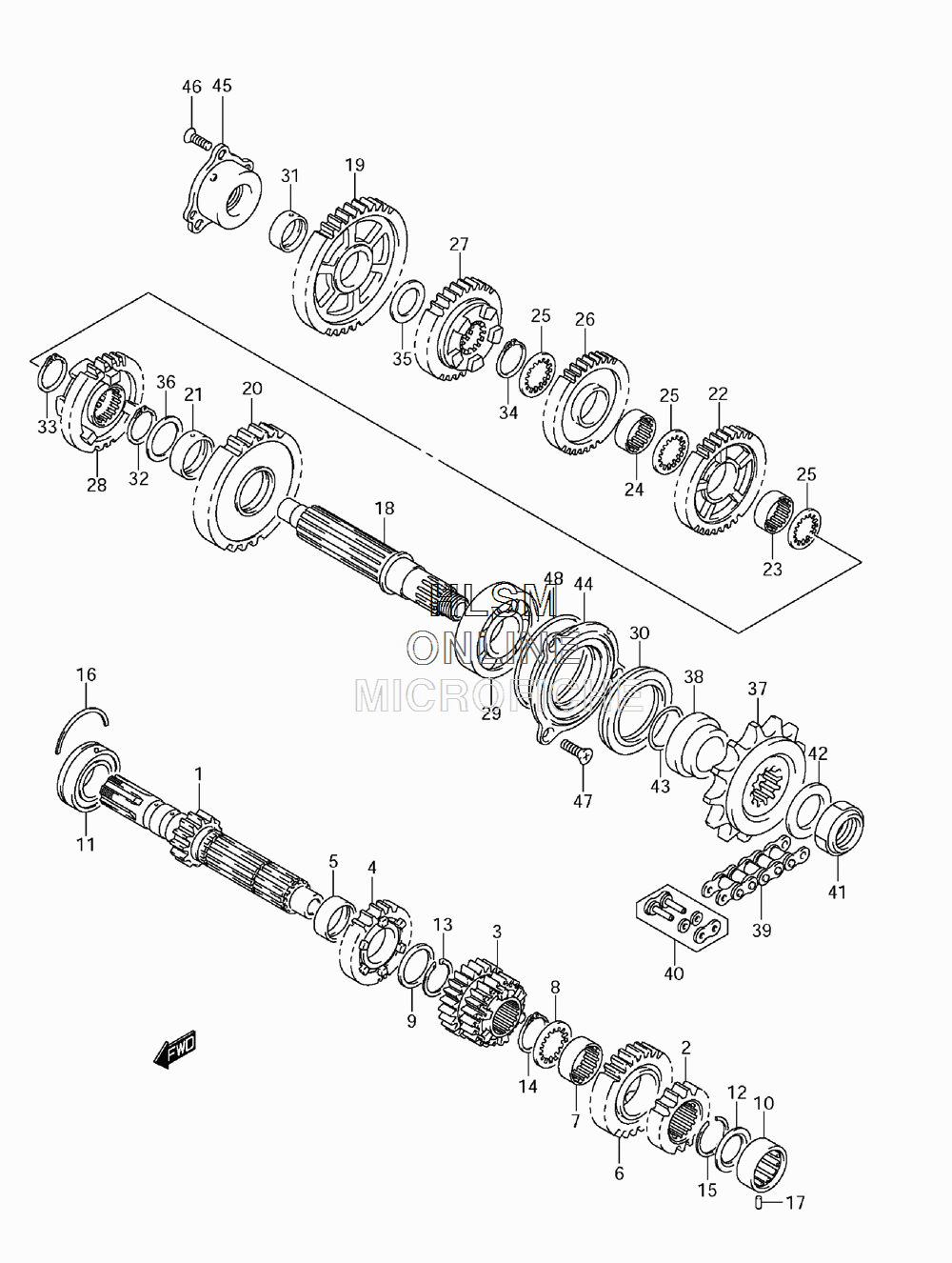

TRANSMISSION для Suzuki GSX-R 600 L1 - 2011 года выпуска
-
№АртикулНазвание
-
124120-14J00 SHAFT, COUNTER NT:14SHAFT, COUNTER NT:14
-
224221-14J00 GEAR, 2ND DRIVE NT:19GEAR, 2ND DRIVE NT:19
-
324231-14J00 GEAR, 3RD AND 4TH NT:21/24GEAR, 3RD AND 4TH NT:21/24
-
424251-01H00 GEAR, 5TH DRIVE NT:23GEAR, 5TH DRIVE NT:23
-
524252-35F00 BUSH 5TH DRIVE GEARBUSH 5TH DRIVE GEAR
-
624261-14J00 GEAR, 6TH DRIVE NT:24GEAR, 6TH DRIVE NT:24
-
724262-35F10 BUSH, 6TH DRIVE GEARBUSH, 6TH DRIVE GEAR
-
809167-27001 LOCK WASHERLOCK WASHER
-
909160-27008 WASHER (27X36X1)WASHER (27X36X1)
-
1009263-20087 BEARING (20X34X13.5) (LEFT)BEARING (20X34X13.5) (LEFT)
-
1109262-25150 BEARING (25X62X17) (RIGHT)BEARING (25X62X17) (RIGHT)
-
1209285-20006 OIL SEAL (20X31.2X2.7)OIL SEAL (20X31.2X2.7)
-
1309380-27006 CIRCLIPCIRCLIP
-
1409380-27006 CIRCLIPCIRCLIP
-
1509380-27004 CIRCLIPCIRCLIP
-
1609390-62012 C RINGC RING
-
1709261-06003 PINPIN
-
1824131-14J00 SHAFT, DRIVESHAFT, DRIVE
-
1924311-14J00 GEAR, 1ST DRIVEN NT:39GEAR, 1ST DRIVEN NT:39
-
2024321-14J00 GEAR, 2ND DRIVEN NT:39GEAR, 2ND DRIVEN NT:39
-
2124322-35F00 BUSH, 2ND DRIVENBUSH, 2ND DRIVEN
-
2224331-14J00 GEAR, 3RD DRIVEN NT:36GEAR, 3RD DRIVEN NT:36
-
2324332-46H00 BUSH, 3RD DRIVENBUSH, 3RD DRIVEN
-
2424332-46H00 BUSH, 4TH DRIVEN GEARBUSH, 4TH DRIVEN GEAR
-
2524333-02F00 WASHER, 3RD AND 4TH DRIVENWASHER, 3RD AND 4TH DRIVEN
-
2624341-14J00 GEAR, 4TH DRIVEN NT:36GEAR, 4TH DRIVEN NT:36
-
2724351-01H01 GEAR, 5TH DRIVEN NT:31GEAR, 5TH DRIVEN NT:31
-
2824361-14J00 GEAR, 6TH DRIVEN NT:26GEAR, 6TH DRIVEN NT:26
-
2909262-28045 BEARING (28X68X18)BEARING (28X68X18)
-
3009283-42018 OIL SEAL (42X62X7)OIL SEAL (42X62X7)
-
3109300-22008 BUSHBUSH
-
3209380-27006 CIRCLIPCIRCLIP
-
3309380-27006 CIRCLIPCIRCLIP
-
3409380-27006 CIRCLIPCIRCLIP
-
3509181-22223 SHIM (22X34X1)SHIM (22X34X1)
-
3609160-27008 WASHER (27X36X1)WASHER (27X36X1)
-
3727510-20A10 SPROCKET, ENGINE NT:16SPROCKET, ENGINE NT:16
-
3827531-14J00 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
3927600-06G40-114 CHAIN ASSY (RK525SM0Z7Y,114L)CHAIN ASSY (RK525SM0Z7Y,114L)
-
4027620-06G40 JOINT SET (OPT)JOINT SET (OPT)
-
4109159-20004 NUTNUT
-
4209160-25009 WASHER (25X41X3)WASHER (25X41X3)
-
4309280-24010 O RING (D:2.4,ID:23.7)O RING (D:2.4,ID:23.7)
-
4424751-14J00 RETAINER, DRIVE SHAFT LEFT HANDRETAINER, DRIVE SHAFT LEFT HAND
-
4524771-01810 HOUSING, DRIVE SHAFT SETHOUSING, DRIVE SHAFT SET
-
4609139-06159 SCREW (6X20)SCREW (6X20)
-
4709139-06159 SCREW (6X20)SCREW (6X20)
-
4809280-68010 O RINGO RING
