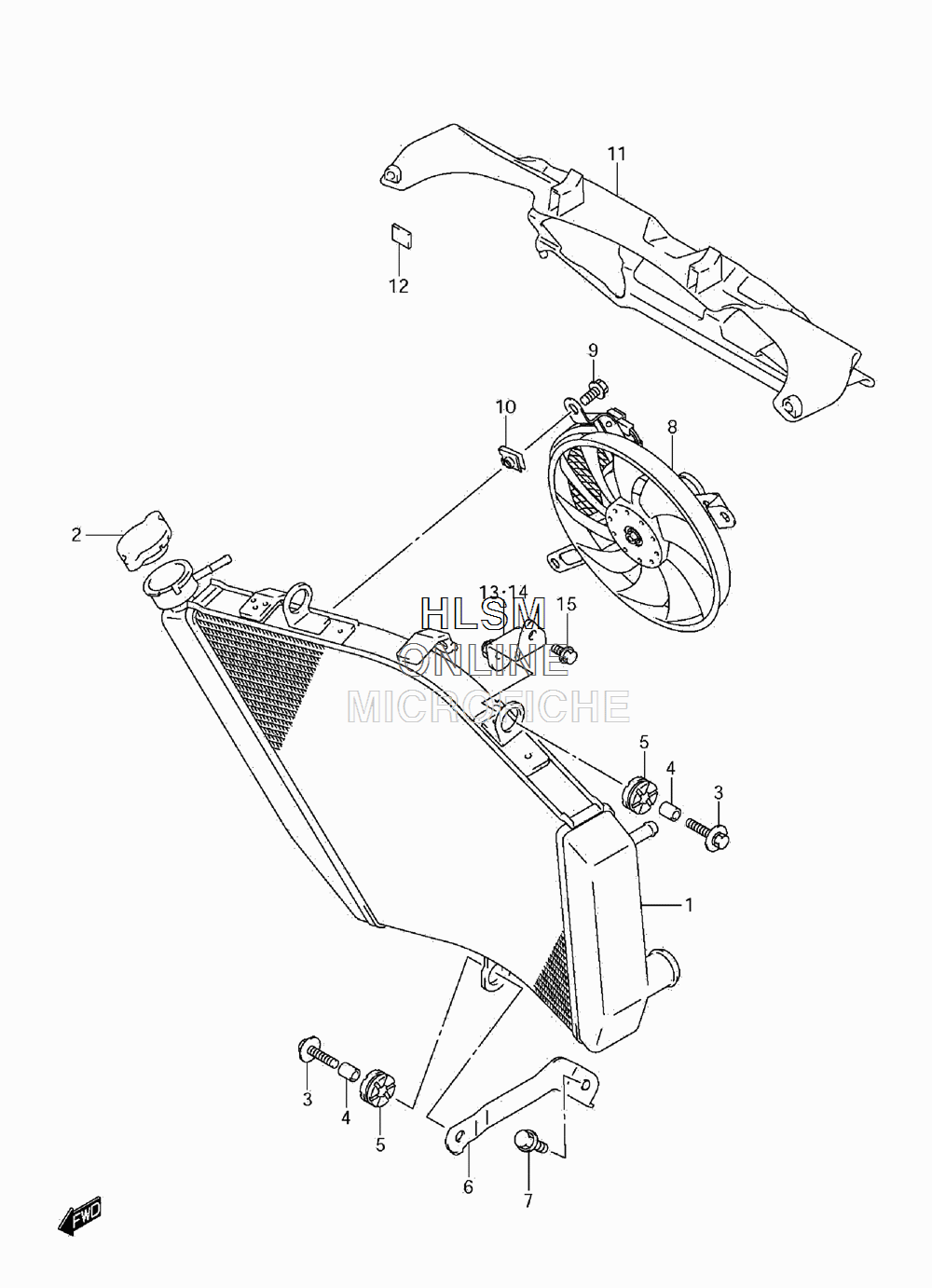

RADIATOR для Suzuki GSX-R 600 L1 - 2011 года выпуска
-
№АртикулНазвание
-
117710-14J00 RADIATOR ASSY, WATERRADIATOR ASSY, WATER
-
217730-14G00 CAPCAP
-
309118-06097 BOLT (6X25)BOLT (6X25)
-
409180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
509320-10051 CUSHIONCUSHION
-
617750-14J00 BRACKETBRACKET
-
701550-0612A BOLTBOLT
-
817800-14J00 FAN ASSY, RADIATORFAN ASSY, RADIATOR
-
917711-14G00 BOLTBOLT
-
1017802-14F00 NUTNUT
-
1117771-14J00 SHIELD, HEATSHIELD, HEAT
-
1261544-94500 CUSHION, HEAT SHIELDCUSHION, HEAT SHIELD
-
1317741-14J00 BRACKET, RADIATOR UPPER RIGHT HANDBRACKET, RADIATOR UPPER RIGHT HAND
-
1417742-14J00 BRACKET, RADIATOR UPPER LEFT HANDBRACKET, RADIATOR UPPER LEFT HAND
-
1501550-0616A BOLTBOLT
