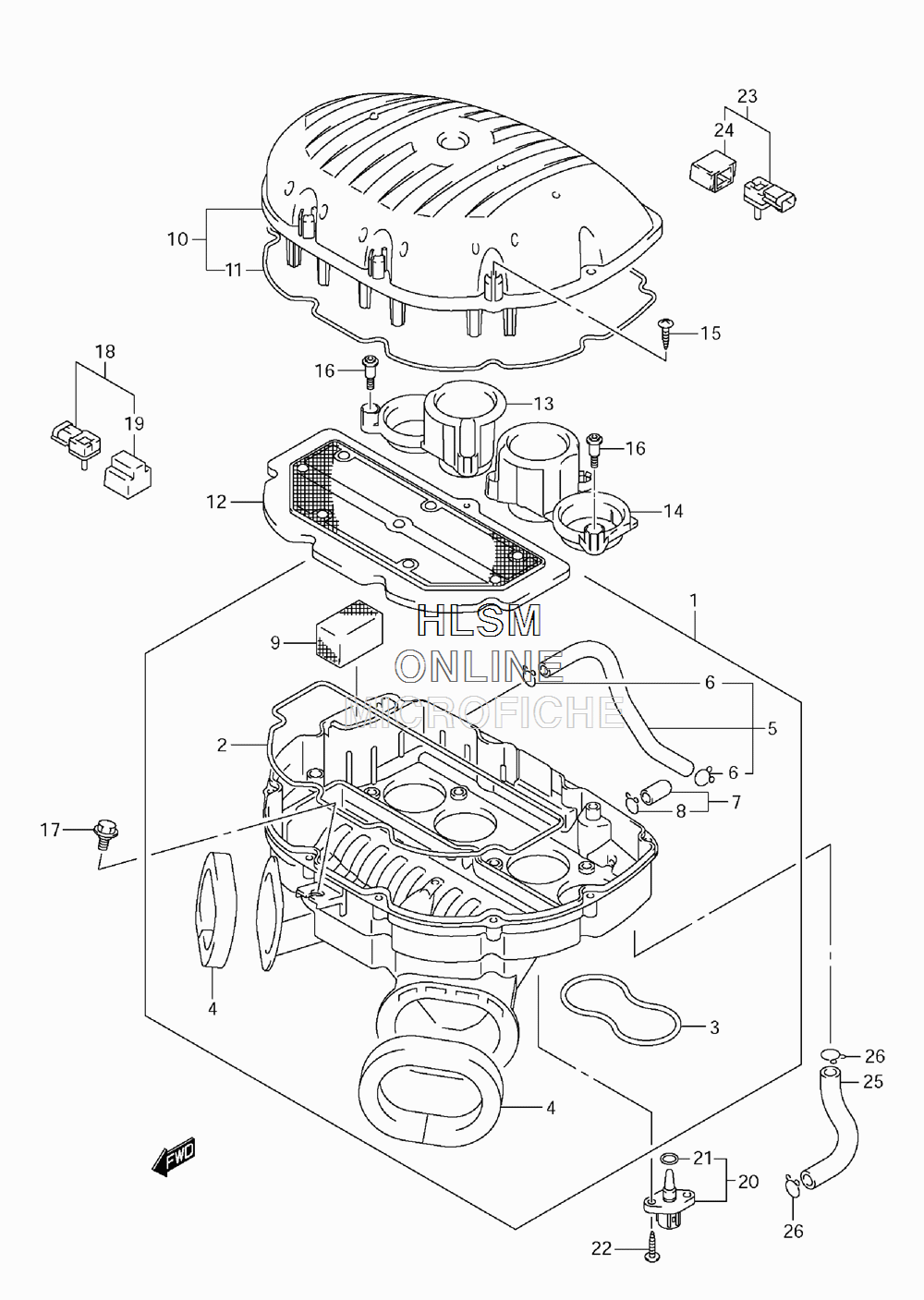

AIR CLEANER для Suzuki GSX-R1000 L1 - 2011 года выпуска
-
№АртикулНазвание
-
113720-47H00 CASE, AIR CLEANER (INCL. 1-9)CASE, AIR CLEANER (INCL. 1-9)
-
213756-47H00 GASKET, CASEGASKET, CASE
-
313757-47H00 GASKET, CASEGASKET, CASE
-
413736-01H00 CUSHION, DUCTCUSHION, DUCT
-
513850-47H00 TUBE, BREATHER (INCL. 6)TUBE, BREATHER (INCL. 6)
-
609401-14101 CLIPCLIP
-
713856-19B03 PLUG ASSY, DRAIN (INCL. 8)PLUG ASSY, DRAIN (INCL. 8)
-
809401-14101 CLIPCLIP
-
913788-47H00 FILTER, BREATHERFILTER, BREATHER
-
1013740-47H00 CAP, AIR CLEANERCAP, AIR CLEANER
-
1113746-47H00 GASKET, CAP (INCL. 11)GASKET, CAP (INCL. 11)
-
1213780-47H00 FILTER ASSYFILTER ASSY
-
1313881-47H00 FUNNEL, OUTLET RIGHT HANDFUNNEL, OUTLET RIGHT HAND
-
1413882-47H00 FUNNEL, OUTLET LEFT HANDFUNNEL, OUTLET LEFT HAND
-
1503541-0525B SCREWSCREW
-
1613831-47H00 BOLTBOLT
-
1709111-06089 BOLT (6X16)BOLT (6X16)
-
1815630-29G20 SENSOR, BOOST (INCL. 19)SENSOR, BOOST (INCL. 19)
-
1915625-29G10 COVERCOVER
-
2013650-14G11 SENSOR, AIR TEMPERATURE (INCL. 21)SENSOR, AIR TEMPERATURE (INCL. 21)
-
2113655-14G10 O RINGO RING
-
2203511-0516A BOLTBOLT
-
2315630-29G10 SENSOR, AIR PRESSURE (INCL. 24)SENSOR, AIR PRESSURE (INCL. 24)
-
2415625-29G00 COVERCOVER
-
2513697-47H00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2609401-15101 CLIPCLIP
