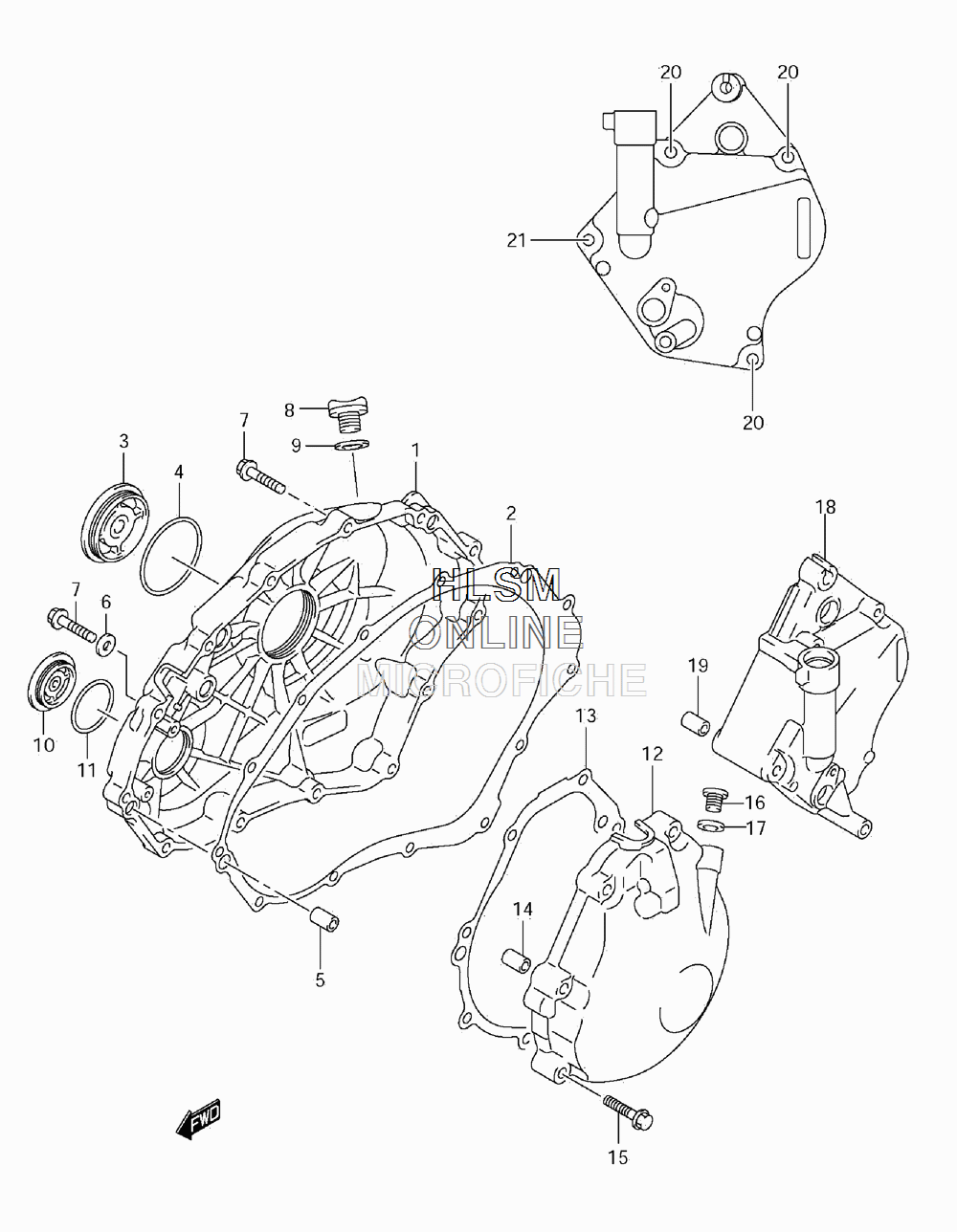

CRANKCASE COVER для Suzuki GSX-R1000 L1 - 2011 года выпуска
-
№АртикулНазвание
-
111341-47H00 COVER, CLUTCHCOVER, CLUTCH
-
211482-47H00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
311342-41G10 CAP, CLUTCH RELEASE ADJUSTCAP, CLUTCH RELEASE ADJUST
-
409280-54001 O RING (D:2.4,ID:52.6)O RING (D:2.4,ID:52.6)
-
504211-09189 PINPIN
-
609168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
709103-06308 BOLT (6X30)BOLT (6X30)
-
811971-25D00 PLUG, ENGINE OIL FILTERPLUG, ENGINE OIL FILTER
-
909280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1009259-36021 PLUG, 36X10PLUG, 36X10
-
1109280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
1211351-47H00 COVER, GENERATORCOVER, GENERATOR
-
1311483-47H00 GASKETGASKET
-
1404211-09149 PIN 9X14PIN 9X14
-
1509103-06213 BOLT (6X30)BOLT (6X30)
-
1609248-10010 PLUGPLUG
-
1709168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
1811361-47H00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
1904211-09129 PIN 9X12PIN 9X12
-
2009103-06224 BOLT (6X45)BOLT (6X45)
-
2109103-06239 BOLT (6X65)BOLT (6X65)
