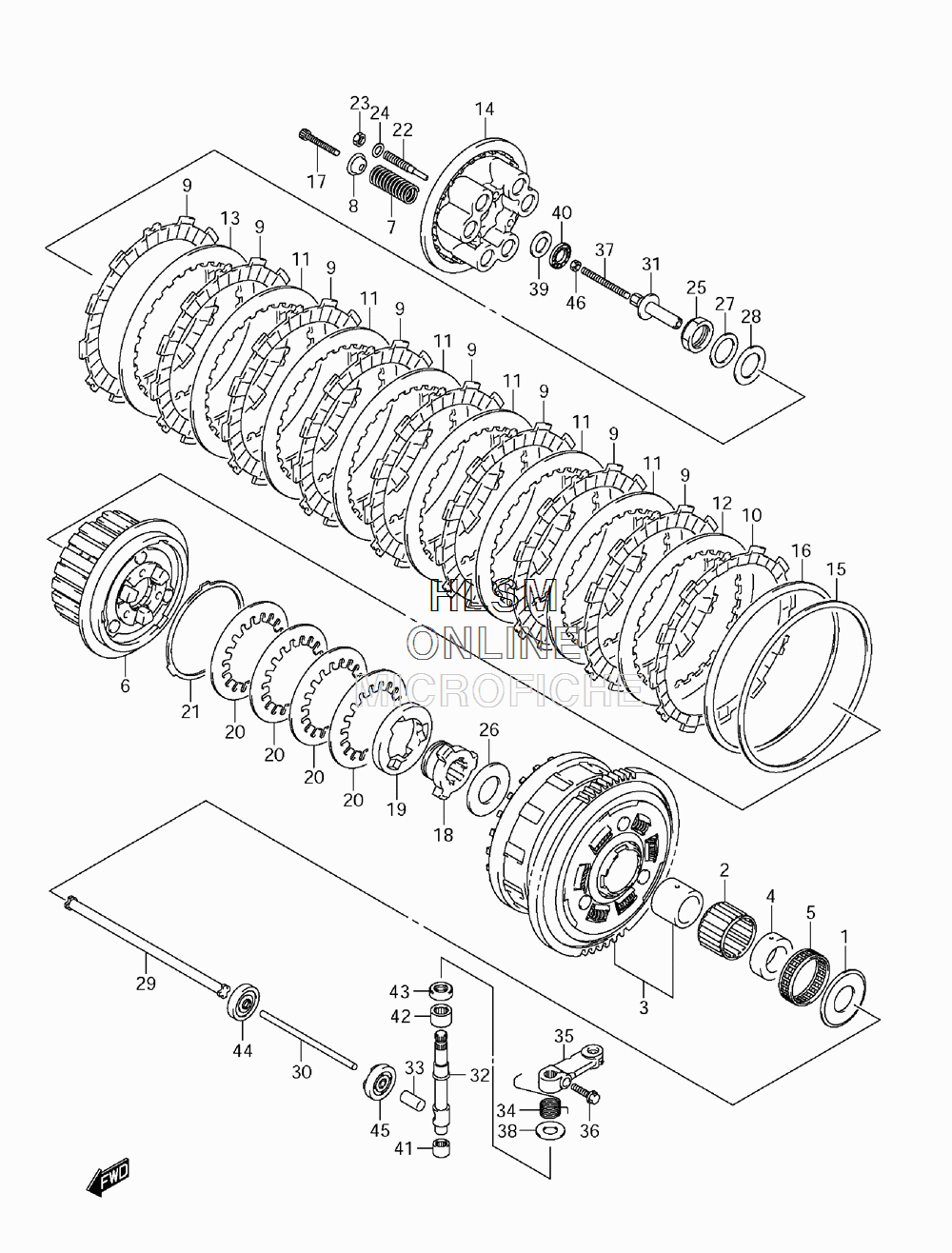

CLUTCH для Suzuki GSX-R1000 L1 - 2011 года выпуска
-
№АртикулНазвание
-
109160-25073 WASHER (25X54X2.4)WASHER (25X54X2.4)
-
209263-35015 BEARING (35X40X26.8)BEARING (35X40X26.8)
-
321200-47810 GEAR ASSY, PRIMARY DRIVENGEAR ASSY, PRIMARY DRIVEN
-
421253-01H10 SPACER, OIL PUMP DRIVESPACER, OIL PUMP DRIVE
-
509263-35045 BEARING (35X40X12)BEARING (35X40X12)
-
621410-41G40 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
721413-47H00 SPRING, CLUTCHSPRING, CLUTCH
-
821414-29F00 WASHER, CLUTCH SPRINGWASHER, CLUTCH SPRING
-
921441-42F20 PLATE, CLUTCH DRIVE NO.1PLATE, CLUTCH DRIVE NO.1
-
1021442-42F10 PLATE, CLUTCH DRIVE NO.2PLATE, CLUTCH DRIVE NO.2
-
1121451-47H00 PLATE, CLUTCH DRIVEN NO.1PLATE, CLUTCH DRIVEN NO.1
-
1221451-47H10 PLATE, CLUTCH DRIVEN NO.2PLATE, CLUTCH DRIVEN NO.2
-
1321451-47H20 PLATE, CLUTCH DRIVEN NO.3PLATE, CLUTCH DRIVEN NO.3
-
1421462-41G10 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1521471-02F20 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1621472-02F20 WASHER, CLUTCH PLATE WAVEWASHER, CLUTCH PLATE WAVE
-
1721482-41G10 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
1821611-41G20 CAM, CLUTCH DRIVECAM, CLUTCH DRIVE
-
1921612-41G20 CAM, CLUTCH DRIVENCAM, CLUTCH DRIVEN
-
2021621-41G00 WASHER, CAM REACTION WAVEWASHER, CAM REACTION WAVE
-
2121624-41G20 WASHER, CAM REACTION SEATWASHER, CAM REACTION SEAT
-
2221622-41G10 LIFTER, CLUTCH PRESSURE DISKLIFTER, CLUTCH PRESSURE DISK
-
2321623-41G00 NUT, CL PRESS DISC LIFT LOCKNUT, CL PRESS DISC LIFT LOCK
-
2409181-08139 SHIM (8.8X14X1)SHIM (8.8X14X1)
-
2509159-24010 NUTNUT
-
2609160-25056 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
2709160-25077 WASHER (25X41X2.5)WASHER (25X41X2.5)
-
2809164-24008 WASHERWASHER
-
2923110-27A00 ROD, CLUTCHROD, CLUTCH
-
3023111-47H00 ROD, CLUTCH PUSH, LROD, CLUTCH PUSH, L
-
3123121-41G20 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
3223122-41G00 CAMSHAFT, CLUTCH RELEASECAMSHAFT, CLUTCH RELEASE
-
3323123-41G00 CAP, CLUTCH PUSH RODCAP, CLUTCH PUSH ROD
-
3423125-41G00 SPRING, CLUTCH RELEASE RETURNSPRING, CLUTCH RELEASE RETURN
-
3523271-41G31 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
3609103-06223 BOLT (6X20)BOLT (6X20)
-
3709134-06015 SCREW (6X73)SCREW (6X73)
-
3809160-10020 WASHER (10.5X24X1)WASHER (10.5X24X1)
-
3909160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
4009263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
4109263-10014 BEARING (10X14X10)BEARING (10X14X10)
-
4209263-12027 BEARING (12X18X12)BEARING (12X18X12)
-
4309282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
4409283-06010 OIL SEAL (6X34X10.5)OIL SEAL (6X34X10.5)
-
4509285-10004 OIL SEAL (10X17X5)OIL SEAL (10X17X5)
-
4608310-0006A NUTNUT
