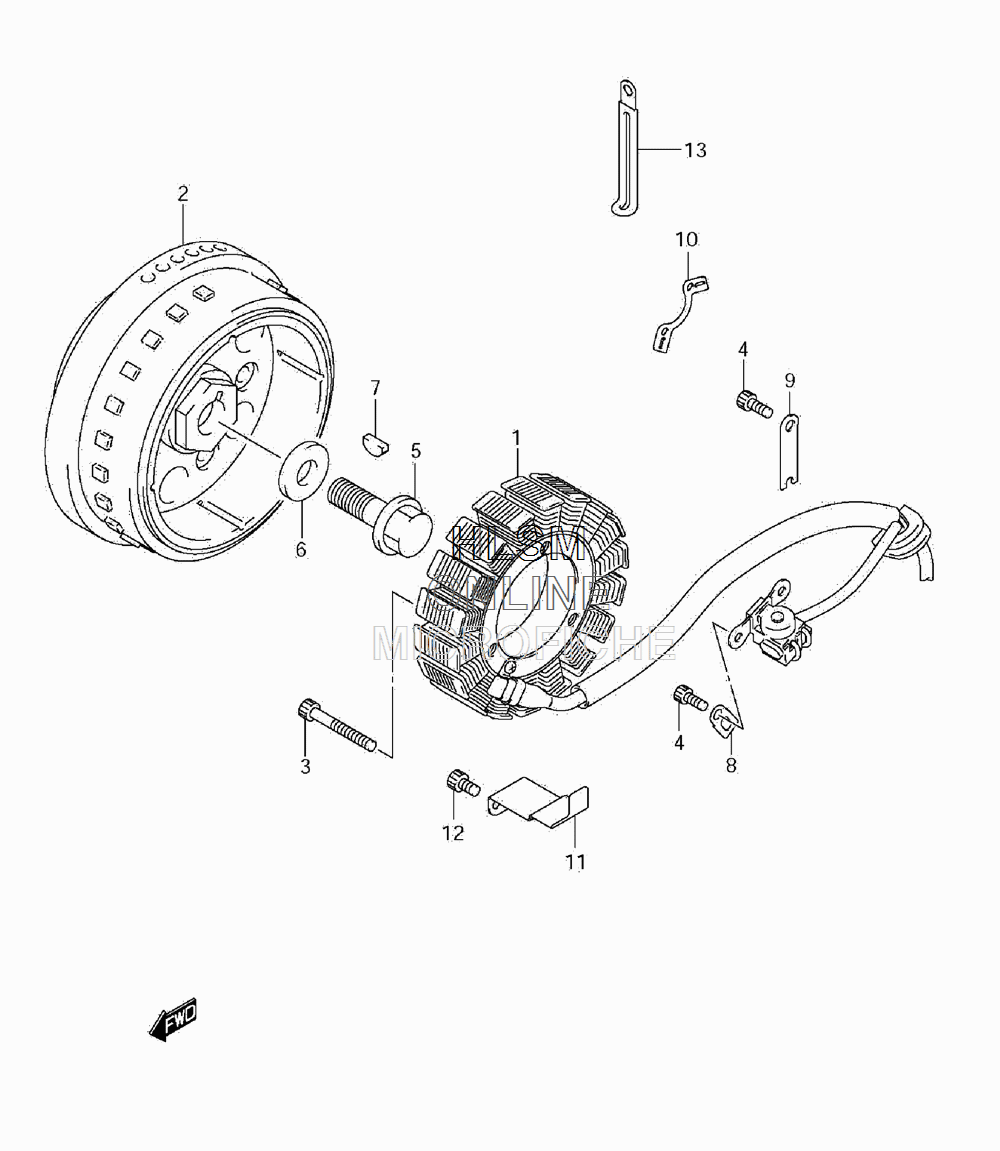

MAGNETO для Suzuki VL800C L1 - 2011 года выпуска
-
№АртикулНазвание
-
132101-41F10 STATOR ASSYSTATOR ASSY
-
232102-41F10 ROTOR ASSYROTOR ASSY
-
307130-0640B BOLT, STATORBOLT, STATOR
-
407130-0510B BOLT, PICK UP AND CLAMPBOLT, PICK UP AND CLAMP
-
509103-14001 BOLT, ROTOR (14X43)BOLT, ROTOR (14X43)
-
609160-14021 WASHER (14X29X4.0)WASHER (14X29X4.0)
-
709420-05007 KEYKEY
-
831497-45000 CLAMP, NO.1CLAMP, NO.1
-
932371-38A10 CLAMP, NO.2CLAMP, NO.2
-
1032371-41F00 CLAMP, NO.5CLAMP, NO.5
-
1132371-45C00 CLAMP, NO.3CLAMP, NO.3
-
1207130-0610B BOLT, NO.3BOLT, NO.3
-
1309404-08419 CLAMP (L:80)CLAMP (L:80)
