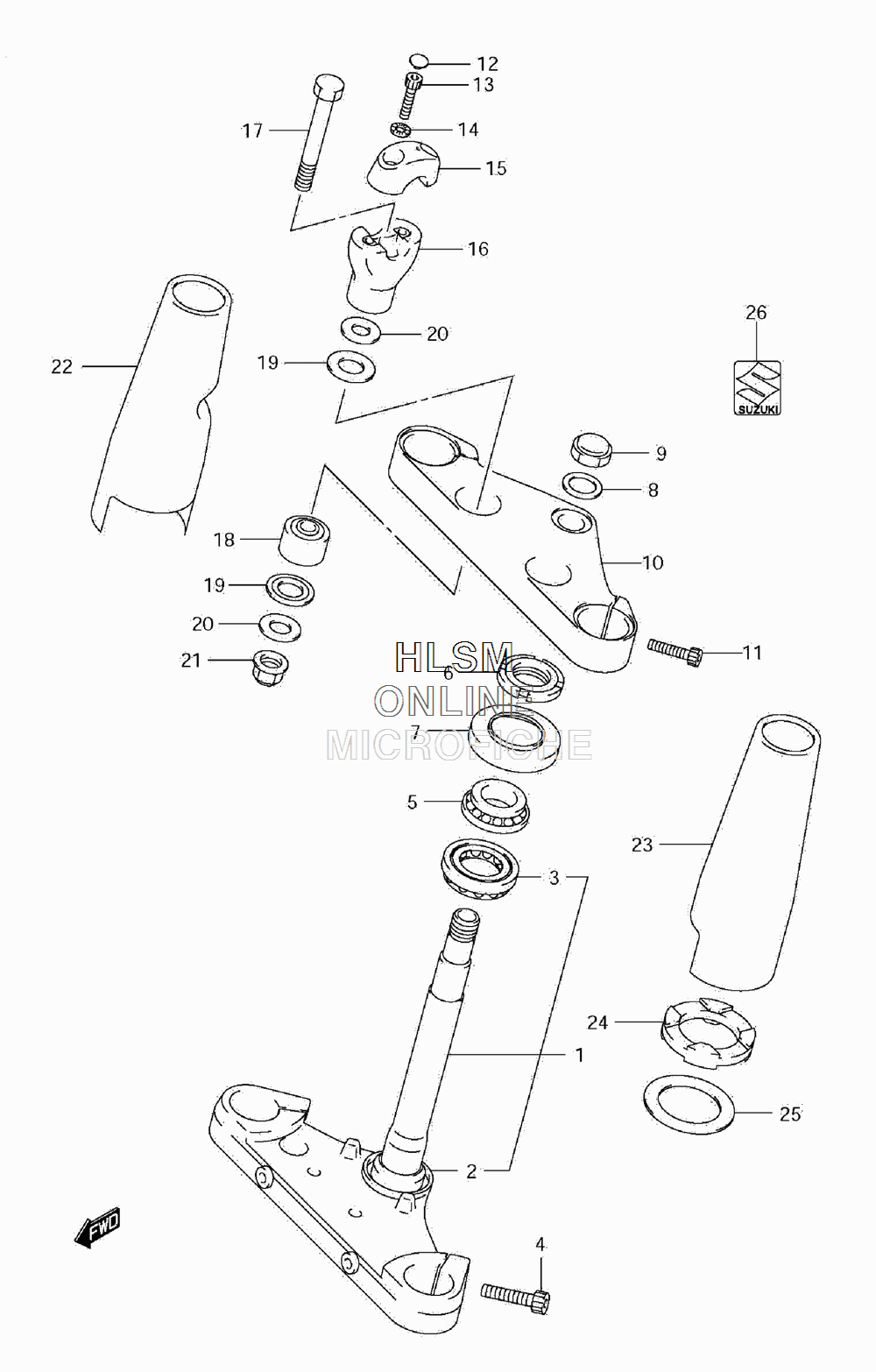

STEERING STEM (EXCEPT CALIF) для Suzuki VL800C L1 - 2011 года выпуска
-
№АртикулНазвание
-
151410-41F60 STEM, STEERING (INCL. 2 - 3)STEM, STEERING (INCL. 2 - 3)
-
251644-12C00 SEAL, STEERING LOWERSEAL, STEERING LOWER
-
309267-30010 BEARING (30X55X17)BEARING (30X55X17)
-
407130-1030B BOLT, STEMBOLT, STEM
-
509267-25009 BEARING (25X47X15)BEARING (25X47X15)
-
651631-28000 NUT, STEMNUT, STEM
-
751643-40502 SEAL, DUST UPPERSEAL, DUST UPPER
-
851356-24B01 WASHER, STEMWASHER, STEM
-
951353-24B00 NUT, STEMNUT, STEM
-
1051311-41F60 HEAD, STEERING STEMHEAD, STEERING STEM
-
1151321-06G00 BOLTBOLT
-
1209250-06011 CAP, BOLTCAP, BOLT
-
1351321-10F00 BOLT, HOLDERBOLT, HOLDER
-
1409164-08015 WASHERWASHER
-
1556211-41F20 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1656221-41F20 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1751226-41F20 BOLT, STAYBOLT, STAY
-
1856240-41F20 DAMPER, RUBBERDAMPER, RUBBER
-
1956245-41F20 SEAT RUBBERSEAT RUBBER
-
2051354-41F20 WASHERWASHER
-
2156246-41F20 NUTNUT
-
2251530-41F20 COVER, UPPER, RCOVER, UPPER, R
-
2351540-41F20 COVER, UPPER, LCOVER, UPPER, L
-
2451468-10F00 SEAT, RUBBERSEAT, RUBBER
-
2551467-10F00 WASHERWASHER
-
2668281-35F00 EMBLEM, SEMBLEM, S
