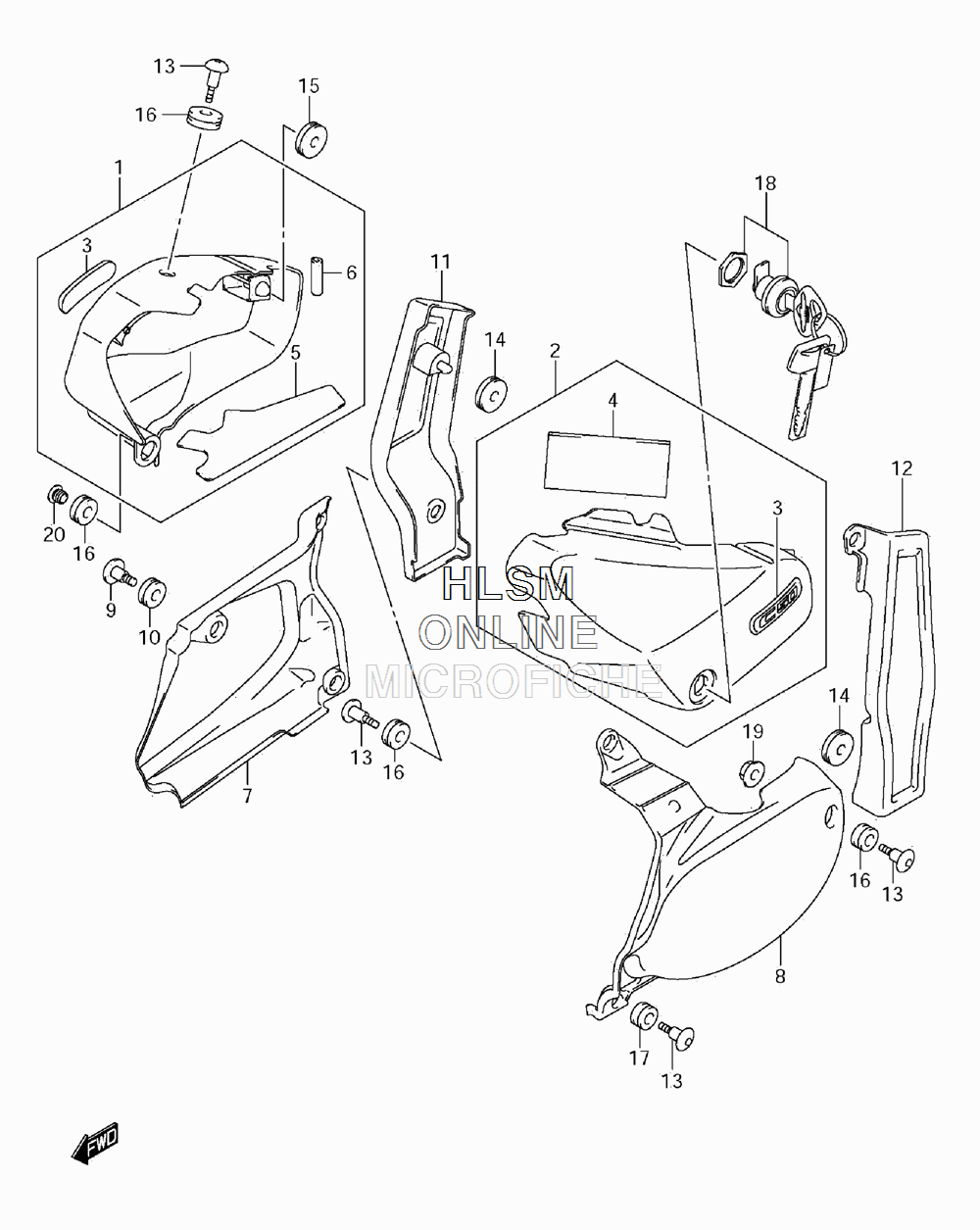

SIDE COVER (CANADA) для Suzuki VL800C L1 - 2011 года выпуска
-
№АртикулНазвание
-
147110-41F60-YVB COVER, FRAME RIGHT HAND (INC 3,5,6) (BLACK) (YVB)COVER, FRAME RIGHT HAND (INC 3,5,6) (BLACK) (YVB)
-
147110-41F60-YWC COVER, FRAME RIGHT HAND (INC 3,5,6) (GRAY) (YWC)COVER, FRAME RIGHT HAND (INC 3,5,6) (GRAY) (YWC)
-
247210-41FL0-YVB COVER, FRAME LEFT HAND (INC 3-4) (BLACK) (YVB)COVER, FRAME LEFT HAND (INC 3-4) (BLACK) (YVB)
-
247210-41FL0-YWC COVER, FRAME LEFT HAND (INC 3-4) (GRAY) (YWC)COVER, FRAME LEFT HAND (INC 3-4) (GRAY) (YWC)
-
368131-41F40 EMBLEM, C50EMBLEM, C50
-
447217-41F00 CUSHION, LEFT HANDCUSHION, LEFT HAND
-
547166-41F00 SHIELD, FRAME COVER RIGHT HANDSHIELD, FRAME COVER RIGHT HAND
-
694631-35F00 MOLDING, RIGHT HANDMOLDING, RIGHT HAND
-
747130-41F00 COVER, SIDE LOWER RIGHT HANDCOVER, SIDE LOWER RIGHT HAND
-
847231-41F00 COVER, SIDE LOWER LEFT HANDCOVER, SIDE LOWER LEFT HAND
-
947133-43H00 SCREWSCREW
-
1009320-08021 CUSHIONCUSHION
-
1147141-41F01-019 COVER, SIDE REAR RIGHT HAND (BLACK)COVER, SIDE REAR RIGHT HAND (BLACK)
-
1247241-41F00-019 COVER, SIDE REAR LEFT HAND (BLACK)COVER, SIDE REAR LEFT HAND (BLACK)
-
1309139-06126 SCREW (6X20)SCREW (6X20)
-
1409320-08018 CUSHIONCUSHION
-
1509320-08028 CUSHION BOX REARCUSHION BOX REAR
-
1609320-09501 CUSHIONCUSHION
-
1709320-09045 CUSHION BOX FRONTCUSHION BOX FRONT
-
1895700-07860 LOCK SET, FUEL LIDLOCK SET, FUEL LID
-
1908316-1006B NUT, SIDE LOWER LEFT HANDNUT, SIDE LOWER LEFT HAND
-
2009250-09001 CAPCAP
