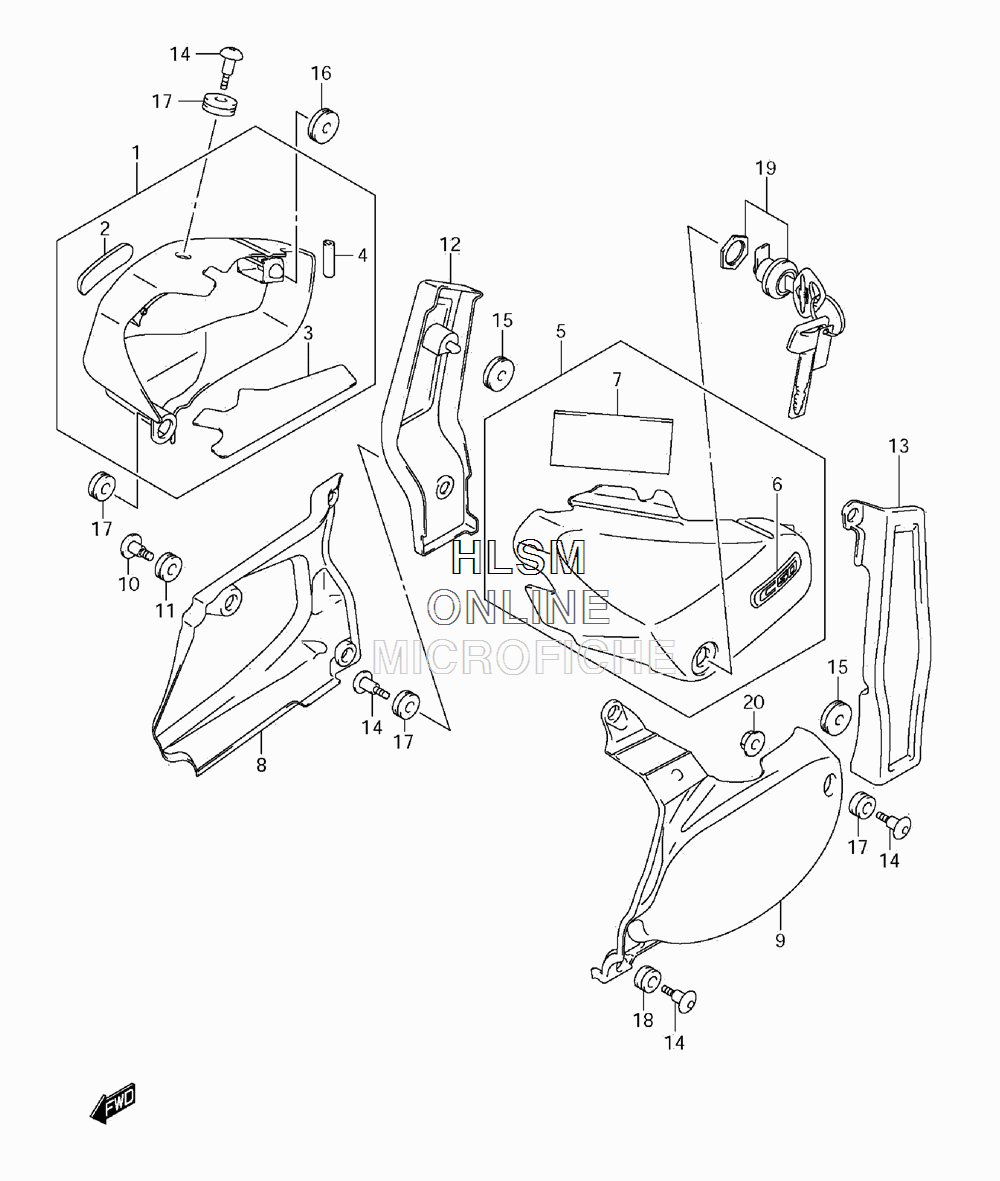

SIDE COVER (CANADA) для Suzuki VZ800C L2 - 2012 года выпуска
-
№АртикулНазвание
-
147110-41F60-YVB COVER, FRAME RIGHT HAND (YVB - BLACK FOR RED/BLACK) (INCL. 2-4)COVER, FRAME RIGHT HAND (YVB - BLACK FOR RED/BLACK) (INCL. 2-4)
-
147110-41F60-YWC COVER, FRAME RIGHT HAND (YWC - GRAY FOR WHITE/GREY) (INCL. 2-4)COVER, FRAME RIGHT HAND (YWC - GRAY FOR WHITE/GREY) (INCL. 2-4)
-
268131-41F40 EMBLEM, ''C50''EMBLEM, ''C50''
-
347166-41F00 SHIELD, FRAME COVER RIGHT HANDSHIELD, FRAME COVER RIGHT HAND
-
494631-35F00 MOLDING, RIGHT HANDMOLDING, RIGHT HAND
-
547210-41FL0-YVB COVER, FRAME LEFT HAND (YVB - BLACK FOR RED/BLACK) (INCL. 6, 7)COVER, FRAME LEFT HAND (YVB - BLACK FOR RED/BLACK) (INCL. 6, 7)
-
547210-41FL0-YWC COVER, FRAME LEFT HAND (YWC - GRAY FOR WHITE/GREY) (INCL. 6, 7)COVER, FRAME LEFT HAND (YWC - GRAY FOR WHITE/GREY) (INCL. 6, 7)
-
668131-41F40 EMBLEM, ''C50''EMBLEM, ''C50''
-
747217-41F00 CUSHION, LEFT HANDCUSHION, LEFT HAND
-
847130-41F00 COVER, SIDE LOWER RIGHT HANDCOVER, SIDE LOWER RIGHT HAND
-
947231-41F00 COVER, SIDE LOWER LEFT HANDCOVER, SIDE LOWER LEFT HAND
-
1047133-43H00 SCREWSCREW
-
1109320-08021 CUSHIONCUSHION
-
1247141-41F01-019 COVER, SIDE REAR RIGHT HAND (019 - BLACK)COVER, SIDE REAR RIGHT HAND (019 - BLACK)
-
1347241-41F00-019 COVER, SIDE REAR LEFT HAND (019 - BLACK)COVER, SIDE REAR LEFT HAND (019 - BLACK)
-
1409139-06126 SCREW (6X20)SCREW (6X20)
-
1509320-08018 CUSHIONCUSHION
-
1609320-08028 CUSHIONCUSHION
-
1709320-09501 CUSHIONCUSHION
-
1809320-09045 CUSHIONCUSHION
-
1995700-07860 LOCK SET, FUEL LIDLOCK SET, FUEL LID
-
2008316-1006B NUTNUT
