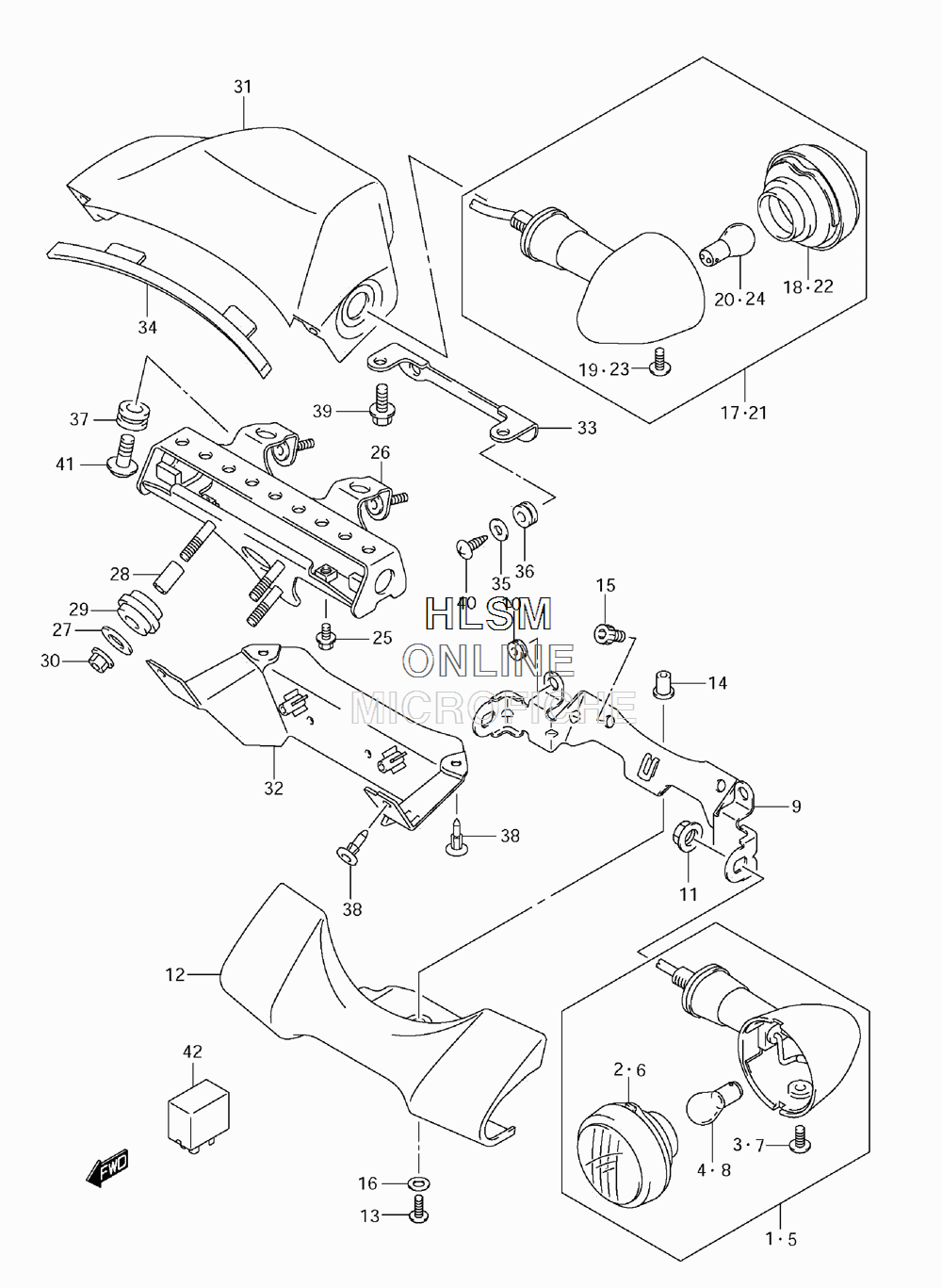

TURN SIGNAL ASSY. (CANADA) для Suzuki VZ800C L2 - 2012 года выпуска
-
№АртикулНазвание
-
135601-41FC0 FRONT TURNSIGNAL ASSY, RIGHT HAND (INCL. 2-4)FRONT TURNSIGNAL ASSY, RIGHT HAND (INCL. 2-4)
-
235610-38AA0 LENSLENS
-
335623-38AA0 SCREW (4X10)SCREW (4X10)
-
409471-12083 BULB (12V,21/5W)BULB (12V,21/5W)
-
535602-41FC0 FRONT TURNSIGNAL ASSY, LEFT HAND (INCL. 6-8)FRONT TURNSIGNAL ASSY, LEFT HAND (INCL. 6-8)
-
635630-38AA0 LENSLENS
-
735623-38AA0 SCREW (4X10)SCREW (4X10)
-
809471-12083 BULB (12V,21/5W)BULB (12V,21/5W)
-
935616-41FA2 BRACKETBRACKET
-
1009320-06016 CUSHIONCUSHION
-
1108310-0010B NUTNUT
-
1235641-41F02 COVER, FRONT TURNSIGNALCOVER, FRONT TURNSIGNAL
-
1309139-05042 SCREW (5X16)SCREW (5X16)
-
1409159-05019 NUTNUT
-
1507130-0812B BOLTBOLT
-
1609160-05048 WASHER (5.5X14X1.2)WASHER (5.5X14X1.2)
-
1735603-38AH0 LAMP ASSY, REAR RIGHT HAND (INCL. 18-20)LAMP ASSY, REAR RIGHT HAND (INCL. 18-20)
-
1835610-38AH0 LENS, RIGHT HANDLENS, RIGHT HAND
-
1935623-38AA0 SCREW (4X10)SCREW (4X10)
-
2009471-12045 BULB (12V,21W)BULB (12V,21W)
-
2135604-38AH0 LAMP ASSY, REAR LEFT HAND (INCL. 22-24)LAMP ASSY, REAR LEFT HAND (INCL. 22-24)
-
2235630-38AH0 LENS, LEFT HANDLENS, LEFT HAND
-
2335623-38AA0 SCREW (4X10)SCREW (4X10)
-
2409471-12045 BULB (12V,21W)BULB (12V,21W)
-
2509103-06507 BOLT (6X14)BOLT (6X14)
-
2635620-43H00 BRACKET, REAR TURNBRACKET, REAR TURN
-
2709160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
2809180-06195 SPACER (6.4X10X18)SPACER (6.4X10X18)
-
2909320-10504 CUSHIONCUSHION
-
3008316-1006A NUTNUT
-
3135621-43H50 COVER, REAR TURN UPPERCOVER, REAR TURN UPPER
-
3235622-43HB0 COVER, REAR TURN LOWERCOVER, REAR TURN LOWER
-
3335623-43H00 BRACKET, REAR TURN COVERBRACKET, REAR TURN COVER
-
3435657-43H00 GASKET, REAR TURN COVERGASKET, REAR TURN COVER
-
3509160-04022 WASHER (4.3X14X0.8)WASHER (4.3X14X0.8)
-
3609320-06016 CUSHIONCUSHION
-
3709320-08066 CUSHIONCUSHION
-
3809409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
3901550-0612A BOLTBOLT
-
4003541-0412A SCREWSCREW
-
4103541-0510A SCREWSCREW
-
4238610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
