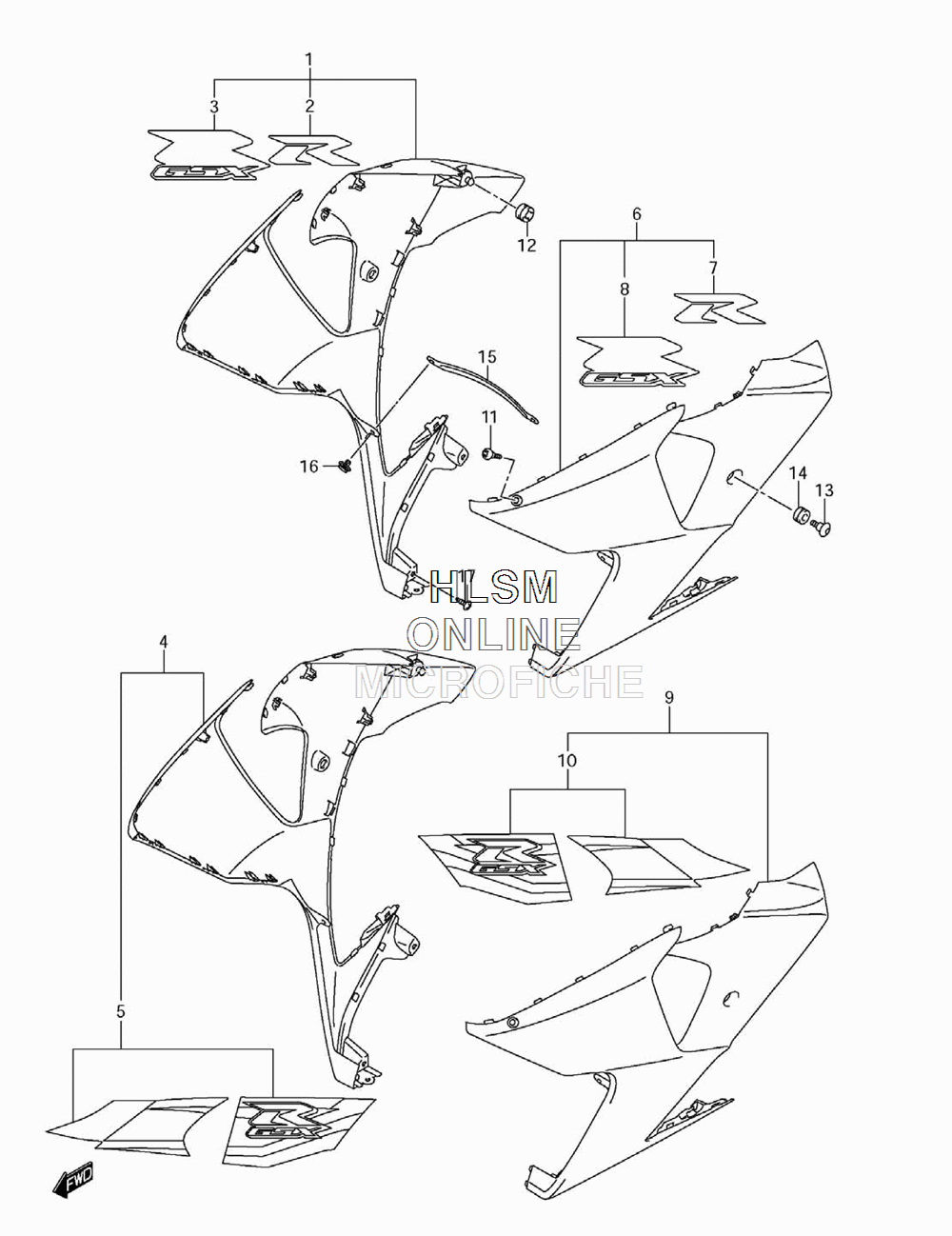

COWLING - SIDE для Suzuki GSX-R1000 L3 - 2013 года выпуска
-
№АртикулНазвание
-
194490-47H30-YKV COWLING, SIDE RIGHT (YKV - BLACK FOR KGL)COWLING, SIDE RIGHT (YKV - BLACK FOR KGL)
-
268681-21HA0 ...EMBLEM, "R"...EMBLEM, "R"
-
368681-47H20-ABU ...EMBLEM, "GSXR"...EMBLEM, "GSXR"
-
494490-47H60-YSF COWLING, SIDE RIGHT (YSF - BLUE FOR GLR)COWLING, SIDE RIGHT (YSF - BLUE FOR GLR)
-
568680-47H00-ABT ...TAPE, SIDE COWLING RIGHT...TAPE, SIDE COWLING RIGHT
-
694440-47H30-YKV COWLING, SIDE LEFT (YKV - BLACK FOR KGL)COWLING, SIDE LEFT (YKV - BLACK FOR KGL)
-
768681-21HA0 ...EMBLEM, "R"...EMBLEM, "R"
-
868691-47H20-ABU ...EMBLEM, "GSXR"...EMBLEM, "GSXR"
-
994440-47H60-YSF COWLING, SIDE LEFT (YSF - BLUE FOR GLR)COWLING, SIDE LEFT (YSF - BLUE FOR GLR)
-
1068690-47H00-ABT ...TAPE, SIDE COWLING LEFT...TAPE, SIDE COWLING LEFT
-
1109139-05077 SCREW (5X16)SCREW (5X16)
-
1209320-08028 CUSHIONCUSHION
-
1309139-06190 BOLT (6X20)BOLT (6X20)
-
1409320-09016 CUSHIONCUSHION
-
1594498-47H00 BRACKETBRACKET
-
1694479-35F00 CLIPCLIP
-
1703541-0516A SCREWSCREW
