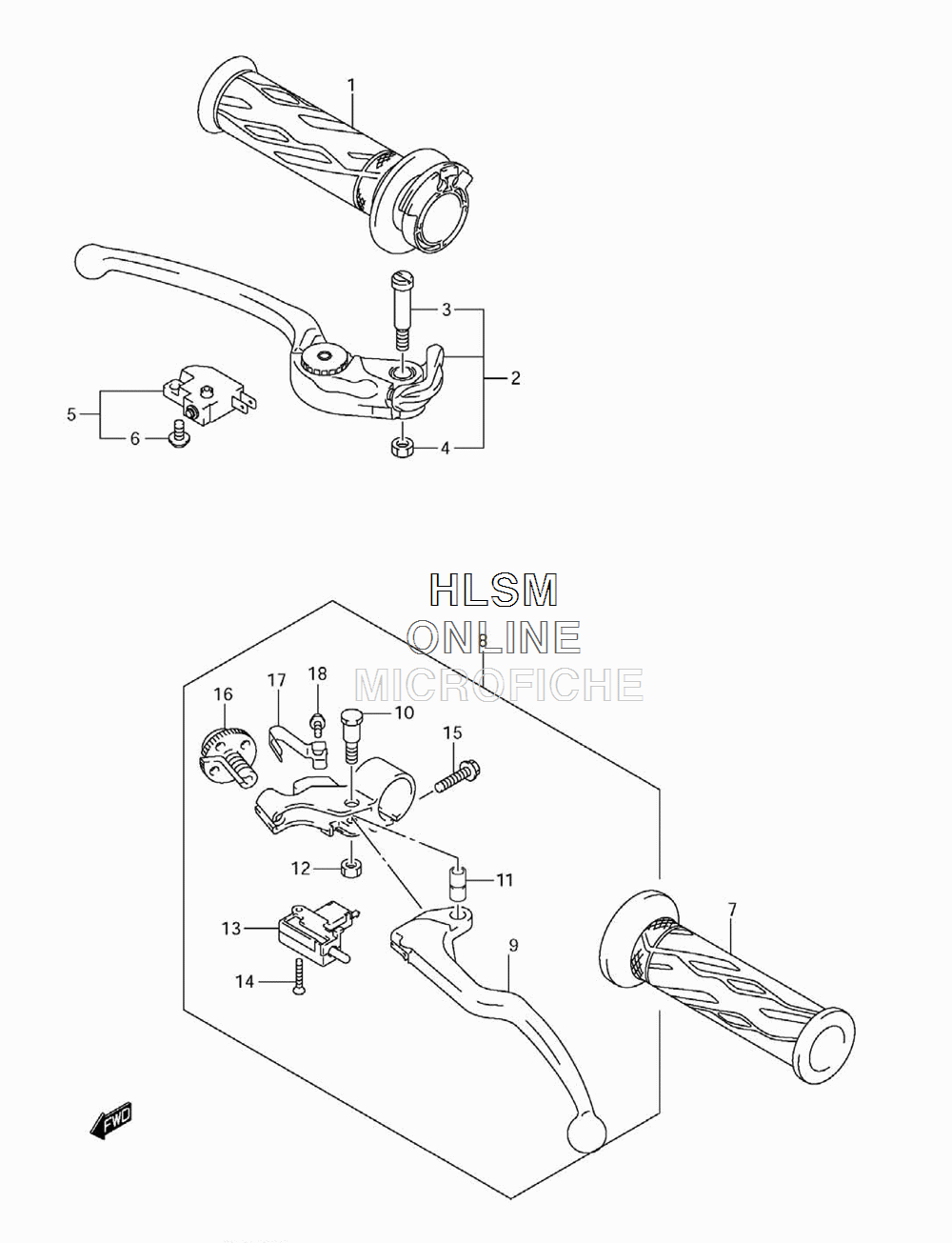

HANDLEBAR - LEVERS для Suzuki GSX-R1000 L3 - 2013 года выпуска
-
№АртикулНазвание
-
157110-21H01 GRIP, THROTTLEGRIP, THROTTLE
-
257300-29G30 LEVER ASSY, BLAKELEVER ASSY, BLAKE
-
357431-29G00 ...BOLT, PIVOT...BOLT, PIVOT
-
408319-2106A ...NUT...NUT
-
557460-14J01 SWITCH ASSY, FRONT BRAKESWITCH ASSY, FRONT BRAKE
-
657465-17C00 ...SCREW...SCREW
-
757211-21H00 GRIP, LEFTGRIP, LEFT
-
857500-41G20 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
957621-41G00 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1057431-41G00 ...BOLT...BOLT
-
1157532-41G00 ...COLLAR...COLLAR
-
1208319-3106A ...NUT...NUT
-
1357560-41G20 ...SWITCH ASSY, CLUTCH...SWITCH ASSY, CLUTCH
-
1457562-41G20 ...SCREW...SCREW
-
1501547-0620B ...BOLT...BOLT
-
1657641-33E21 ...NUT, CABLE ADJUSTER...NUT, CABLE ADJUSTER
-
1757644-33E00 ...SPRING...SPRING
-
1857642-33E00 ...SCREW, SPRING...SCREW, SPRING
