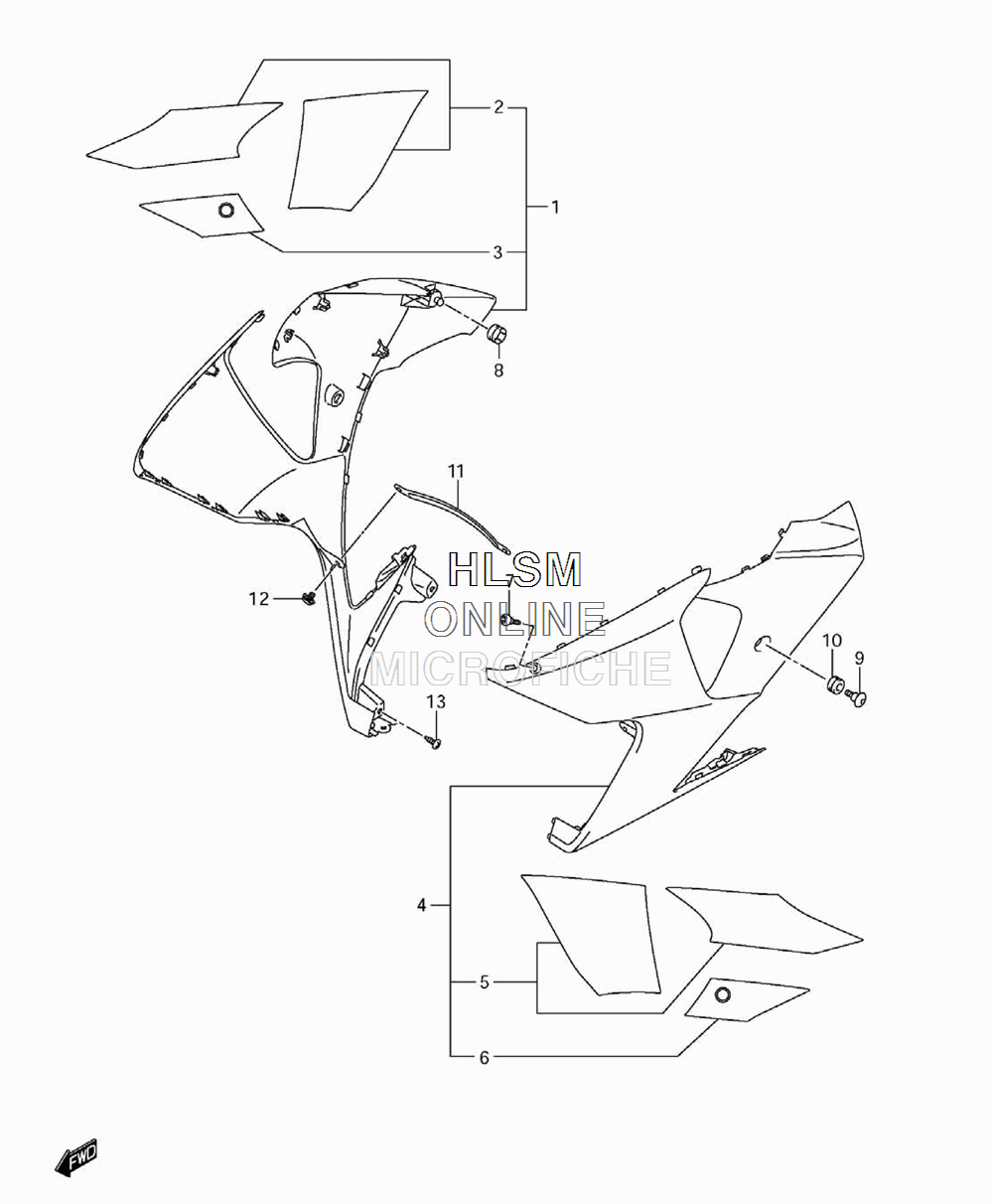

COWLING - SIDE (CALIF ONLY) для Suzuki GSX-R1000Z L3 - 2013 года выпуска
-
№АртикулНазвание
-
194490-47H70-YWW COWLING, SIDE RIGHT (YWW - WHITE)COWLING, SIDE RIGHT (YWW - WHITE)
-
268680-47H10-AKH ...TAPE, SIDE COWLING RIGHT (AKH - WHITE/BLUE)...TAPE, SIDE COWLING RIGHT (AKH - WHITE/BLUE)
-
368685-47H20-AKF ...TAPE, SIDE COWLING LOWER RIGHT (AKF - WHITE/BLUE)...TAPE, SIDE COWLING LOWER RIGHT (AKF - WHITE/BLUE)
-
494440-47H70-YWW COWLING, SIDE LEFT (YWW - WHITE)COWLING, SIDE LEFT (YWW - WHITE)
-
568690-47H10-AKH ...TAPE, SIDE COWLING LEFT (AKH - WHITE/BLUE)...TAPE, SIDE COWLING LEFT (AKH - WHITE/BLUE)
-
668695-47H20-AKF ...TAPE, SIDE COWLING LOWER LEFT (AKF - WHITE/BLUE)...TAPE, SIDE COWLING LOWER LEFT (AKF - WHITE/BLUE)
-
709139-05077 SCREW (5X16)SCREW (5X16)
-
809320-08028 CUSHIONCUSHION
-
909139-06190 BOLT (6X20)BOLT (6X20)
-
1009320-09016 CUSHIONCUSHION
-
1194498-47H00 BRACKETBRACKET
-
1294479-35F00 CLIPCLIP
-
1303541-0516A SCREWSCREW
