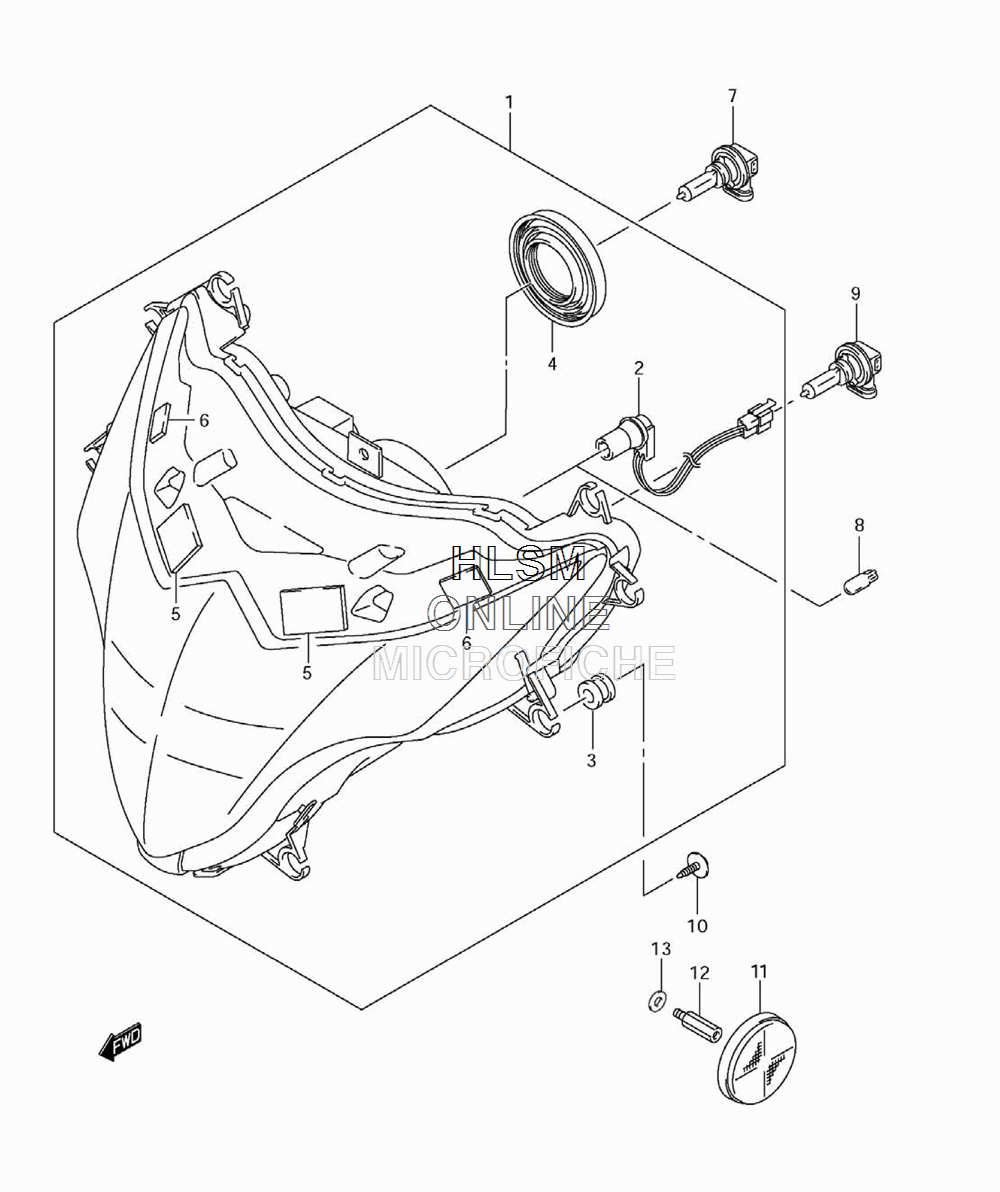

HEADLAMP (CALIF ONLY) для Suzuki GSX-R1000Z L3 - 2013 года выпуска
-
№АртикулНазвание
-
135100-47H31-999 HEADLAMP ASSYHEADLAMP ASSY
-
236118-29G51 ...CORD ASSY...CORD ASSY
-
309320-09039 ...CUSHION...CUSHION
-
435179-76F10 ...COVER, SOCKET...COVER, SOCKET
-
544572-02F01 ...FASTENER...FASTENER
-
644572-37H00 ...FASTENER, COWLING...FASTENER, COWLING
-
709471-12210 BULB (12V55W)BULB (12V55W)
-
809471-12216 BULB (12V5W)BULB (12V5W)
-
909471-12222 BULB (12V65W)BULB (12V65W)
-
1009136-05062 SCREW (5X15)SCREW (5X15)
-
1135950-14A11 REFLEX REFLECTOR ASSY, FRONT SIDEREFLEX REFLECTOR ASSY, FRONT SIDE
-
1209119-06109 BOLTBOLT
-
1309160-08043 WASHER (8.5X18X1)WASHER (8.5X18X1)
