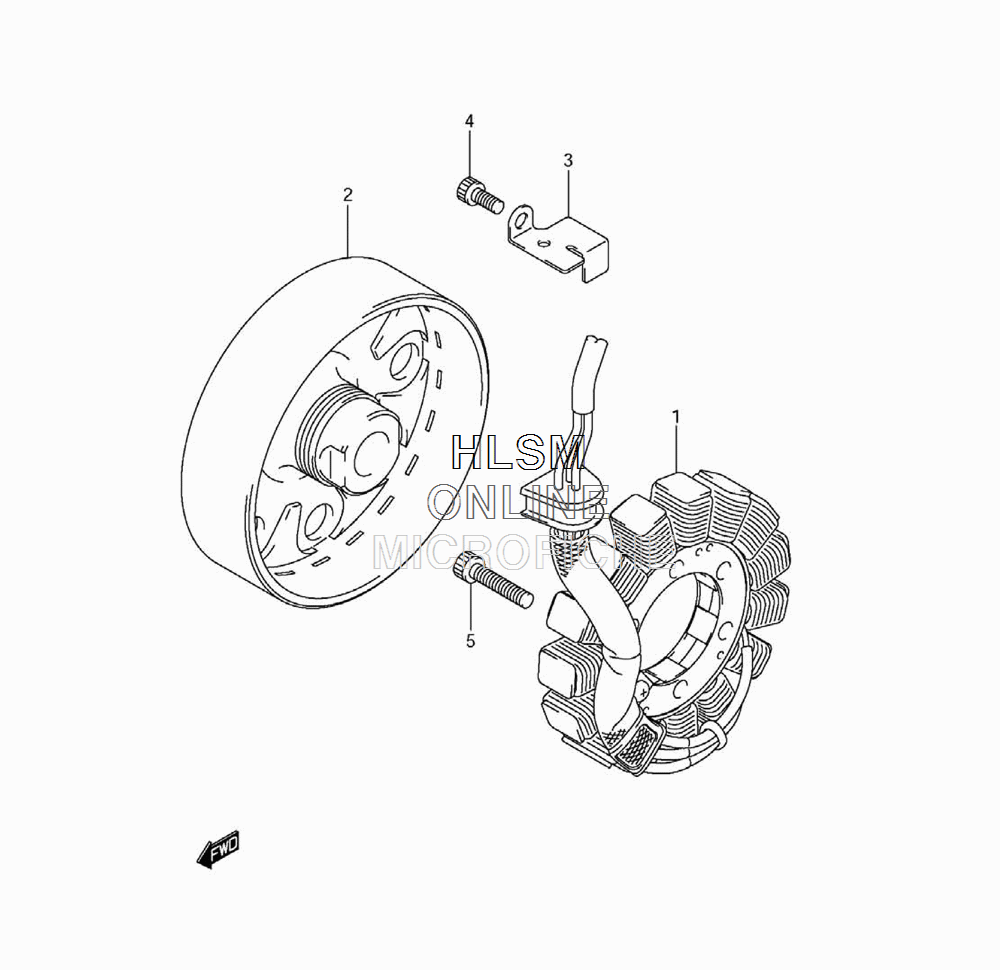

GENERATOR для Suzuki GSX-R1000Z L3 - 2013 года выпуска
-
№АртикулНазвание
-
131401-47H10 STATOR ASSYSTATOR ASSY
-
231402-47H01 ROTOR ASSYROTOR ASSY
-
332371-13E30 CLAMP, GENERATOR LEAD WIRECLAMP, GENERATOR LEAD WIRE
-
407130-0512A BOLTBOLT
-
507130-0625A BOLTBOLT
