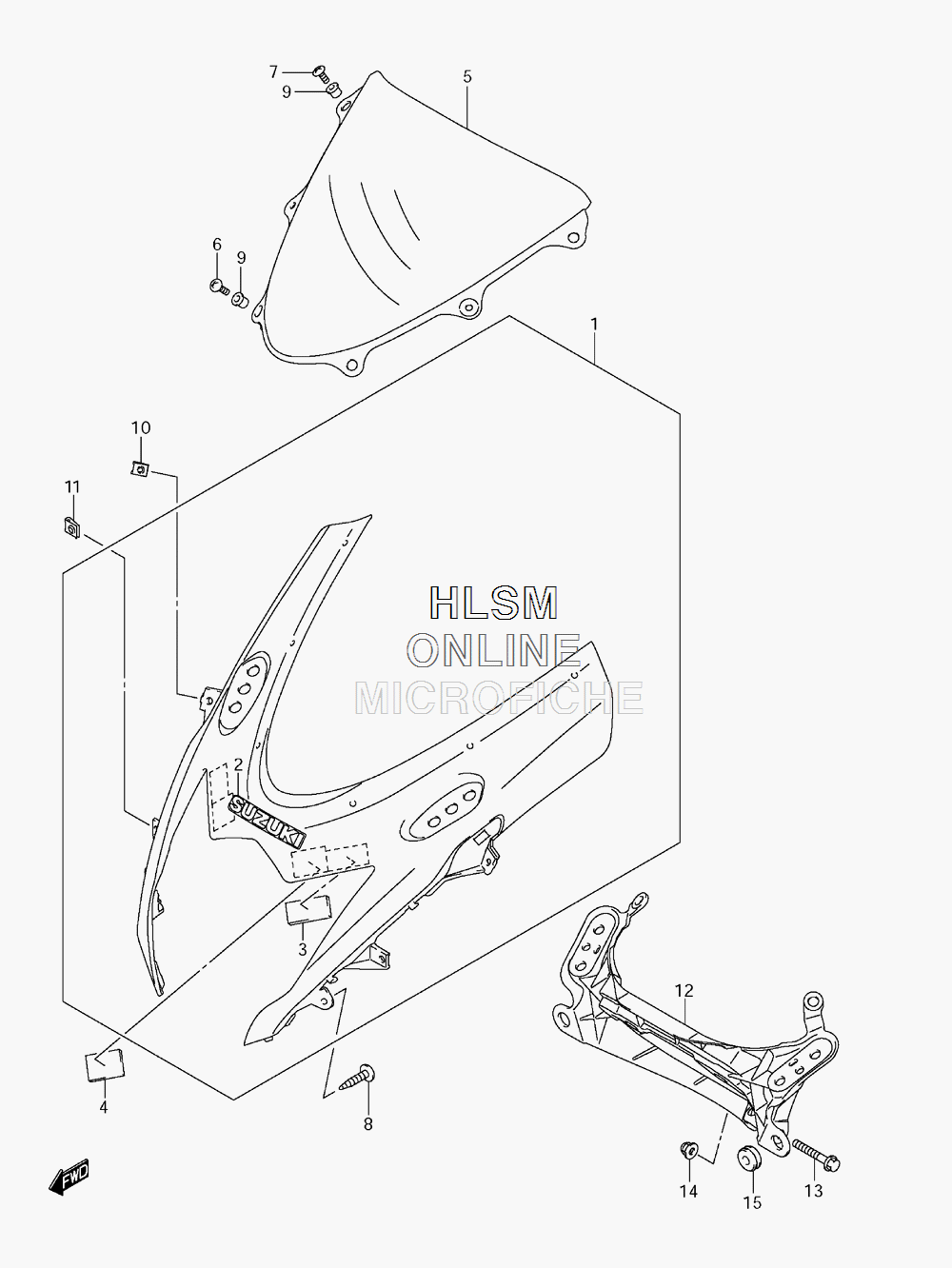

COWLING - BODY для Suzuki GSX-R600 L3 - 2013 года выпуска
-
№АртикулНазвание
-
194410-14J10-6CX BODY, COWLING (6CX - BLUE FOR AGQ)BODY, COWLING (6CX - BLUE FOR AGQ)
-
194410-14J20-YKV BODY, COWLING (YKV - BLACK FOR AGS)BODY, COWLING (YKV - BLACK FOR AGS)
-
194410-14J10-ACX BODY, COWLING (ACX - BLACK FOR AGT)BODY, COWLING (ACX - BLACK FOR AGT)
-
268641-19F00-YWW ...EMBLEM (YWW - WHITE FOR AGQ)...EMBLEM (YWW - WHITE FOR AGQ)
-
268641-14J00-AHB ...EMBLEM (AHB - WHITE/BLACK FOR AGS)...EMBLEM (AHB - WHITE/BLACK FOR AGS)
-
268641-19F00-YVZ ...EMBLEM (YVZ - RED FOR AGT)...EMBLEM (YVZ - RED FOR AGT)
-
392146-14J00 ...CUSHION...CUSHION
-
444572-02F01 FASTENERFASTENER
-
594611-14J00 WINDSCREENWINDSCREEN
-
609125-05133 SCREW (5X18)SCREW (5X18)
-
709125-05134 SCREW (5X15)SCREW (5X15)
-
803541-0516A SCREWSCREW
-
909159-05019 NUTNUT
-
1009148-05052 NUTNUT
-
1109148-05047 NUTNUT
-
1294511-14J00 BRACE, COWLINGBRACE, COWLING
-
1309103-08207 BOLT (8X45)BOLT (8X45)
-
1408313-2008A NUTNUT
-
1509320-08047 CUSHIONCUSHION
